Description

Description

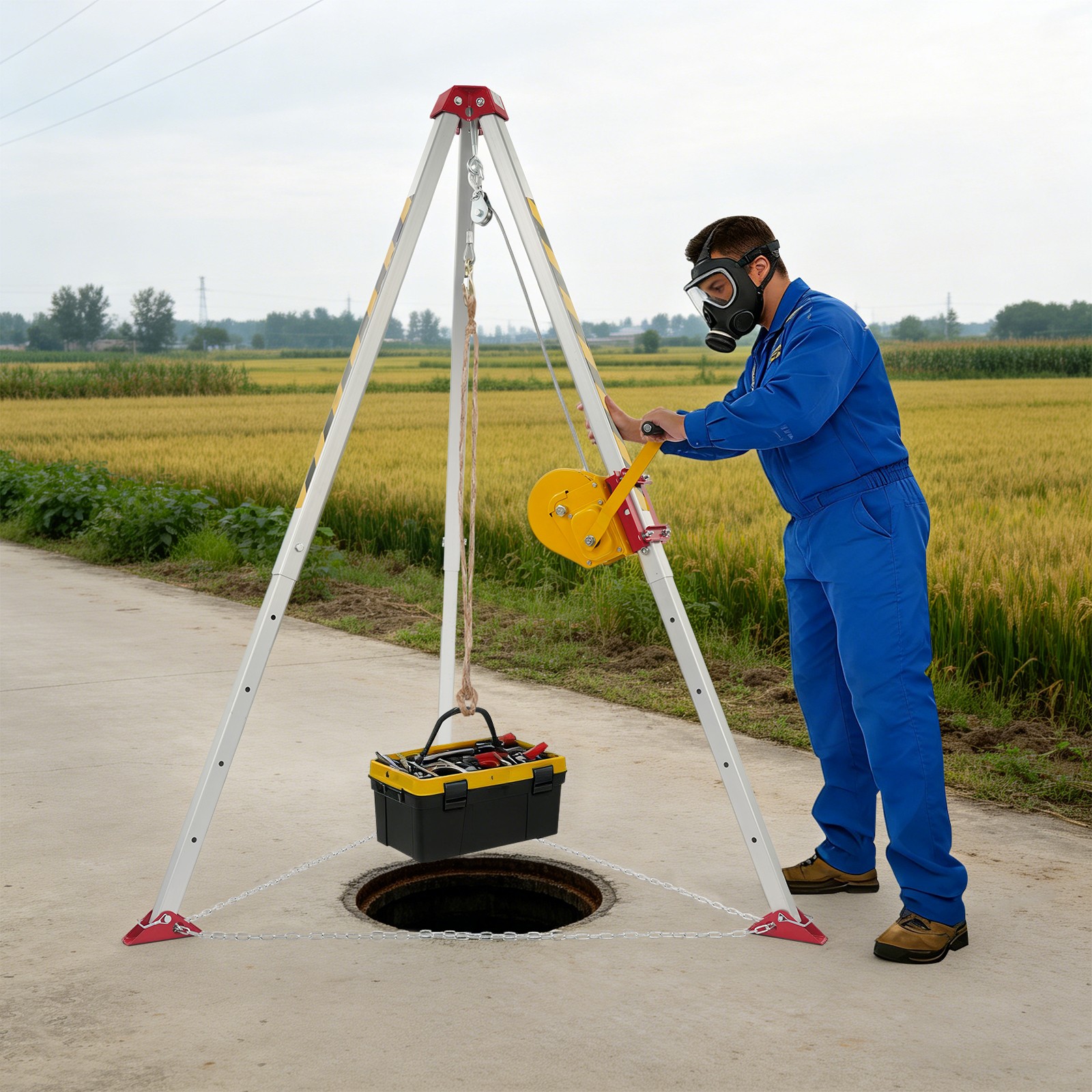

This rescue tripod is made of high-strength materials and has the characteristics of high stability and durability. Its triangular structure design ensures stability in complex environments and is suitable for rescue and material transportation in narrow spaces such as wells, sewers, and tunnels. The tripod is equipped with a manual winch mechanism, which is easy to operate and can achieve precise lifting control, improving rescue efficiency. It is an indispensable and important tool in emergency rescue work.

Key Features

Built for Durability: Constructed with a metal frame, alloy steel pulley, and steel wire rope, and finished with a protective spray-paint process—this product features a robust structure that prevents wear, impact, corrosion, and deformation, guaranteeing extended longevity.

Superior Performance: This product features a professional-grade hand winch delivering 1800 lbs of pulling capacity, combined with a 0.24-inch-diameter, 65.62-foot-long steel wire rope that supports up to 397 lbs—ideal for deep well rescue and greatly enhancing use efficiency.

Enhanced Safety: When accidents happen, there's no time for hesitation. The 32.81ft fall arrester engages immediately, stopping falls—providing essential protection that rescue personnel can depend on.

Exceptional Stability: Featuring a triangular frame design along with adjustable foot spacing and bracket length, the product maintains balance across diverse terrains and confined spaces. An added protective chain at the base delivers extra security.

Comprehensive Kit: This product offers a comprehensive rescue solution, featuring a tripod, manual winch, steel wire rope, fall arrestor, and safety harness—eliminating the need for extra purchases and enabling rapid deployment while cutting down setup time.

Details

Reflective Strip: The reflective strip on the tripod can enhance the recognition of the product, making it usable day and night.

Full-Body Security Harness: The full-body security harness, which can bear up to 350 pounds, provides you with comprehensive protection and ensures safe use.

Application

This confined space rescue tripod is tailor-made for wells, sewers, and tunnels, making it a breeze to set up and use.

Specifications

Material: Metal, Alloy Steel, Steel Wire, Plastic

Color: Green

Process: Spray Painting

Style: Modern

Assembly Required: Yes

Mounting Type: Free Standing

Towing Capacity: 816.47kg/1800lbs

Fall Arrester Specification: 10m/32.81ft

Steel Wire Rope Specification:

Diameter: 6mm/0.24in;

Length: 20m/65.62ft;

Load Bearing Capacity: 180kg/397lbs

Full-Body Security Harness Load Capacity: 158.76kg/350lbs

Bracket Length: 1.35-2.4m/4.43-7.87ft

Tripod Vertical Height: 1.25-2.13m/4.1-6.99ft

Foot Spacing: 1.2-2m/3.94-6.56ft

Package Size: 130*32*26cm/51.18*12.6*10.24in

Gross Weight: 36kg/79.37lbs

Net Weight: 32.4kg/71.43lbs

Package Included

1* Tripod

1* Fall Arrester

1* Hand Winch

1 Set* Full-Body Security Harness

3* English Manuals

2* Carrying Bags

Other Accessories for Assembly

Notes

Please read the operating manual completely before use. And pay particular attention to the safety instructions included.

Please allow the slight color difference caused by the shooting light and a 1-3cm error due to manual measurement, and make sure you do not mind before ordering.
