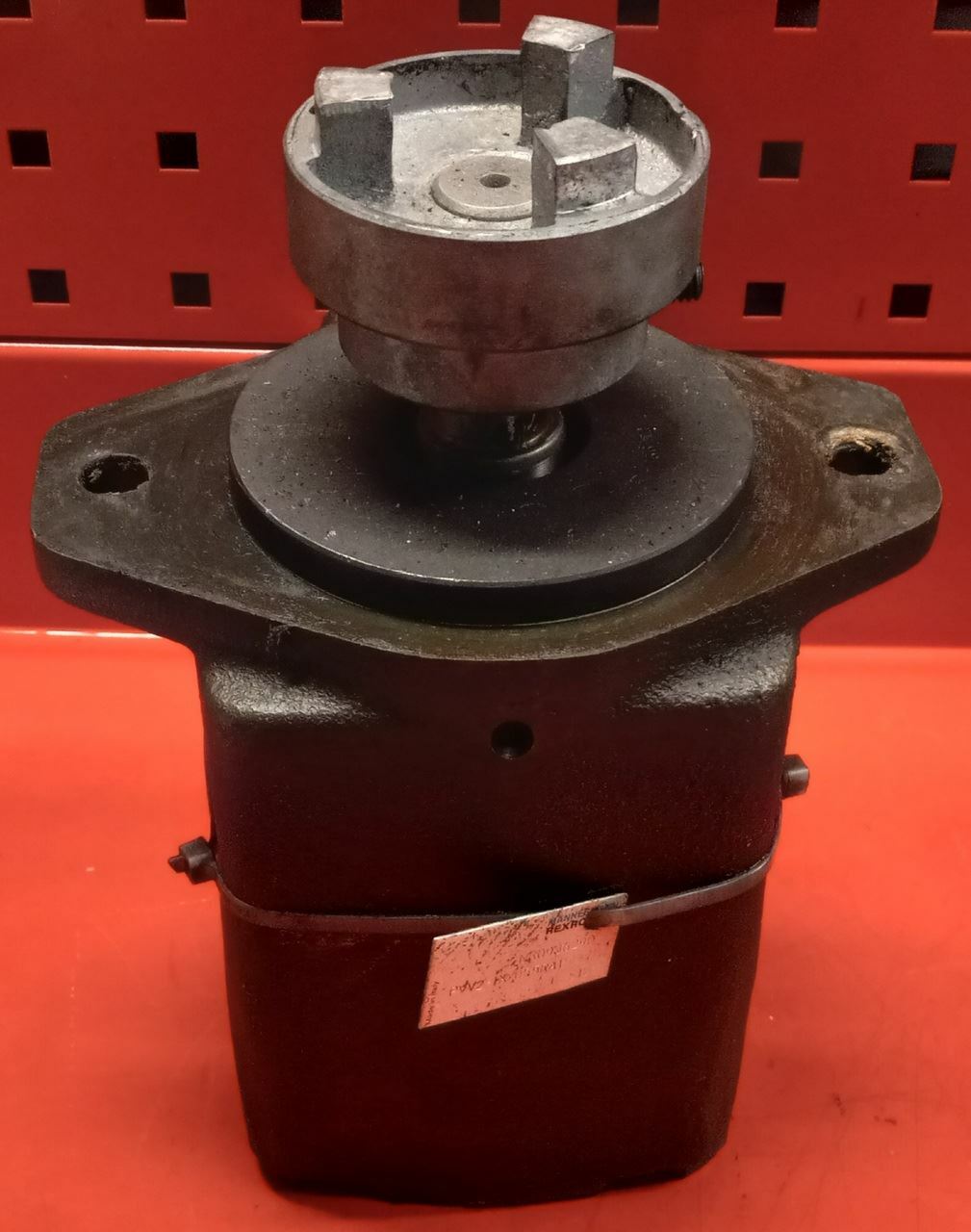

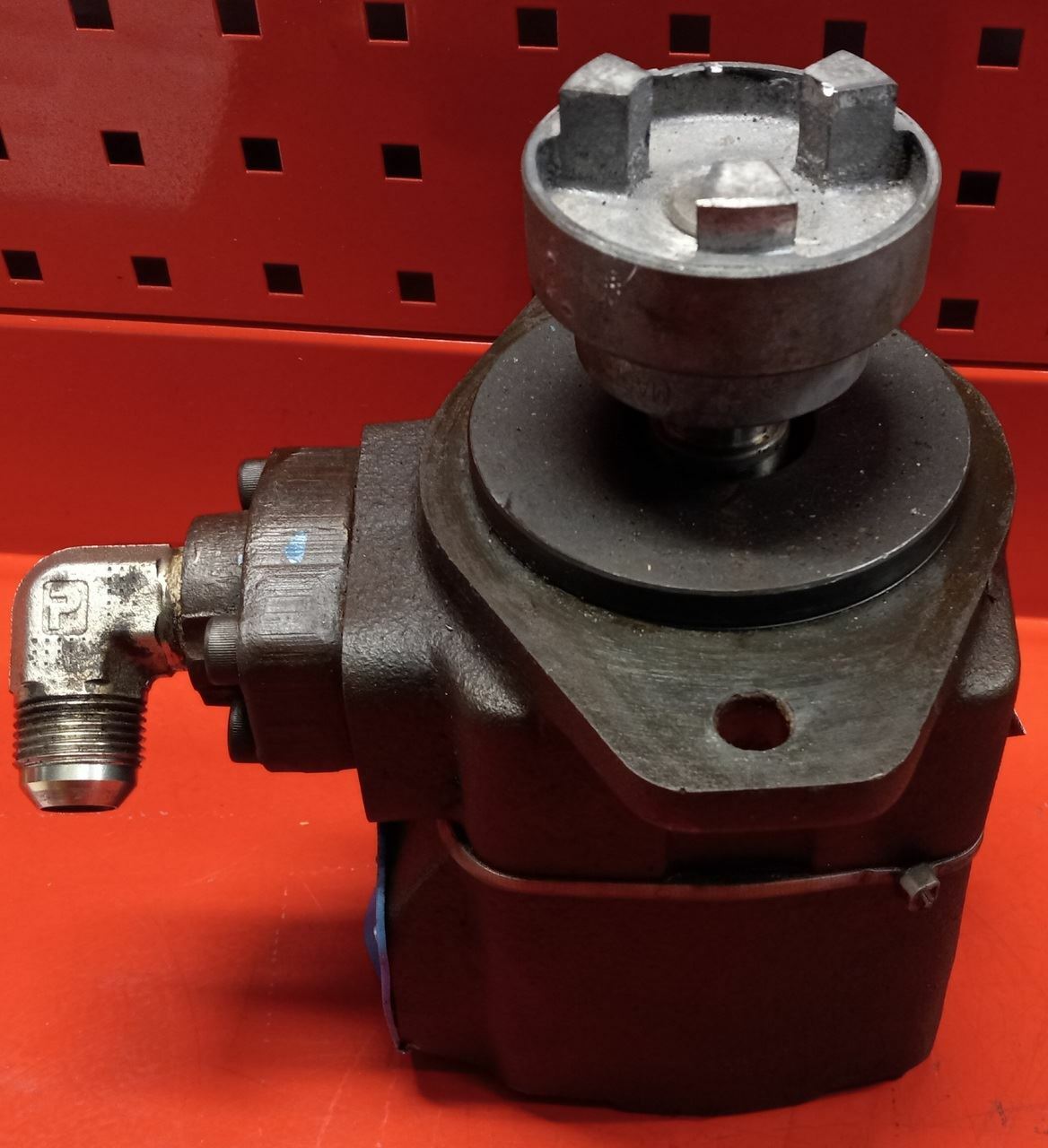

Bosch Rexroth PVV2-1X/055RA15DMB Fixed Displacement Vane Pump

Hydraulic pumps of type PVV are vane pumps with constant displacement. The rotor (2) running in a stator ring (3) is located on the tooth profile of the drive shaft (1). The slots of the rotor accommodate the vanes (4) which are pressed against the internal surfaces of the stator ring by the centrifugal force upon rotation of the rotor. The displacer chambers are laterally sealed by the control plates (5). Due to the double-eccentric design of the stator ring, there are in each case two pressure chambers opposite of two suction chambers, which provides for hydraulic unloading of the shaft. So it only has to transmit the torque. The vanes are partially unloaded upon passage through the suction range. This unloading has a wear-reducing effect and ensures high efficiency. By simply removing the cover (6), the pump insert (consisting of rotor, vane, stator ring and control plates) can be removed without the need of removing the housing (7) from the pump carrier. This allows for fast maintenance and repair of the pump.

Single pump: Industrial version
Frame Size: 2
Size: 55
Component series: 1X
Mounting type: Flange mounting according to SAE J744
Line connections: SAE flange design (mounting thread: UNC)
Installation position: Any, inlet port at top preferred
Direction of rotation: Drive direction of rotation clockwise or counterclockwise
Drive speed: 600 ... 1,800
displacement: 3.37 in

Brand	Bosch
MPN	PVV2-1X/055RA15DMB
