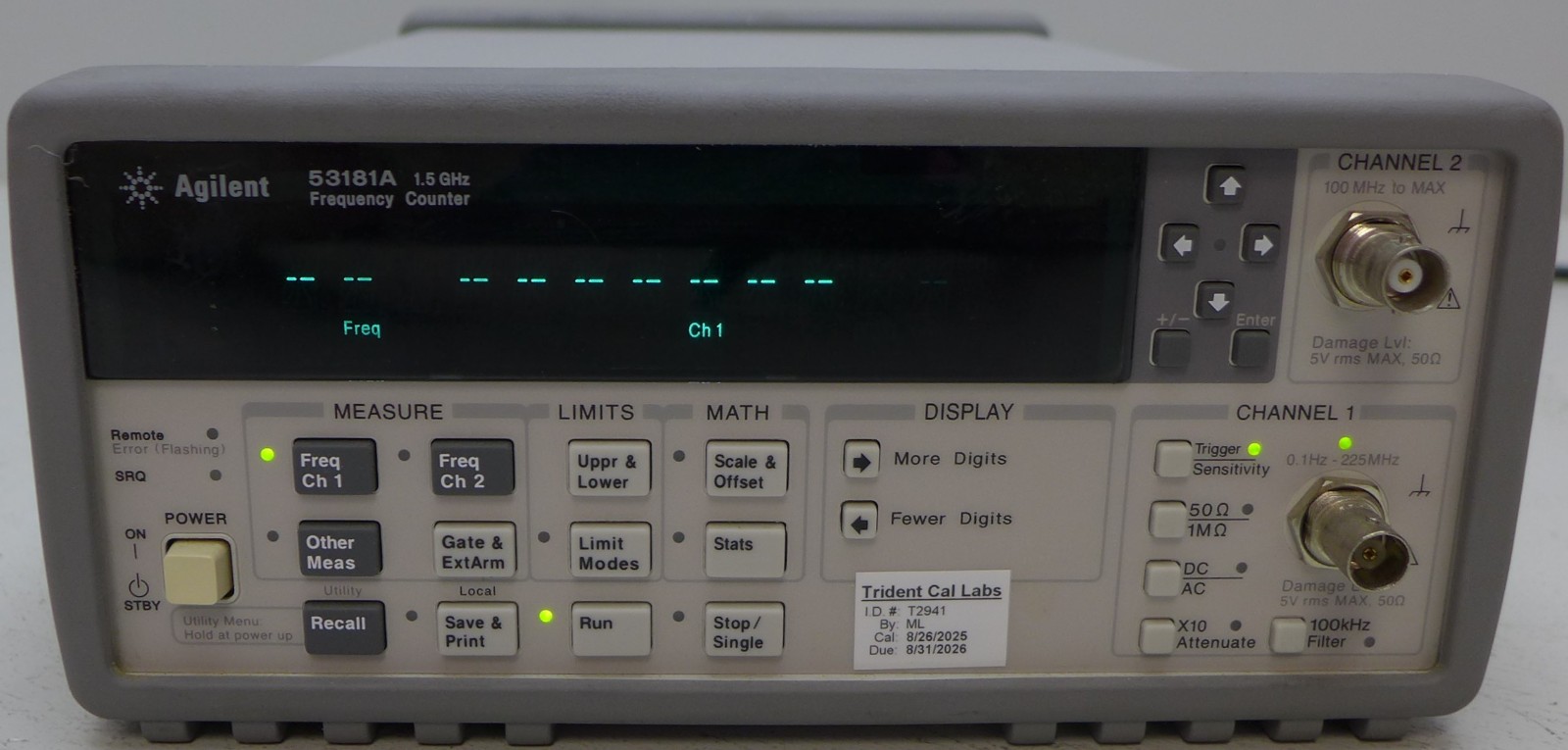

Agilent 53181A

Function Generator

100 MHz to 1.5 GHz

Working

The Agilent 53181A high-performance counter give you fast, precise frequency measurements at an affordable price. These counters feature an intuitive user interface and one-button access to frequently used functions so you can make accurate measurements quickly and easily.

Optimized for RF applications, the single-channel 10 digit/s 53181A measures frequency, period and peak voltage. A digit-blanking function lets you easily eliminate unnecessary digits when you want to read measurements quickly. A self-guided shallow menu makes this counter exceptionally easy to use.

Features

Frequency Range DC Coupled: DC to 225 MHz; AC coupled 1 to 225 MHz (50 Ω); 30 Hz to 225 MHz (1 MΩ)

FM Tolerance: 25%

Voltage Range and Sensitivity (Sinusoid), 2 DC to 100 MHz: 20 mVrms to ± 5 V AC + DC

Voltage Range and Sensitivity (Sinusoid), 100 to 200 MHz: 30 mVrms to ± 5 V AC + DC

Voltage Range and Sensitivity (Sinusoid), 200 to 225 MHz: 40 mVrms to ± 5 V AC + DC

Voltage Range and Sensitivity (Single-shot pulse), 4.5 to 10 ns pulse width: 100 mVpp to 10 Vpp

Voltage Range and Sensitivity (Single-shot pulse), > 10 ns pulse width: 50 mVpp to 10 Vpp

Trigger Level: Range ± 5.125 V

Accuracy: ± (15 mV + 1% of trigger level)

Resolution: 5 mV

Damage Level: 50 Ω 5 Vrms

0 to 3.5 kHz, 1 MΩ: 350 VDC + AC pk

3.5 to 100 kHz, 1 MΩ: 350 VDC + AC pk linearly derated to 5 Vrms

> 100 kHz, 1 MΩ: 5 Vrms

Measurements include frequency, period and peak voltage

Automated limit tests and one-button measurement setups for fast, easy operation

10 digits/second resolution

Built-in statistics feature lets you simultaneously measure average, min/max, and standard deviation

Payment:

Payment must clear before shipping.

Shipping On This Item:

Shipping & Handling can be calculated using the shipping calculator.

Shipping address must match "bill to" address.

Return Policy:

This item may be returned within 30 days from the date you receive your order for refund of sale price.

Shipping & Handling fees are non-refundable.

Feedback Policy:

When the customer is satisfied with a purchase and leaves positive feedback then we are more than happy to leave feedback in kind.

Please contact us FIRST if there is a problem or concern.

Brand	Agilent
Model	34970A
MPN	34970A
Country of Origin	Malaysia

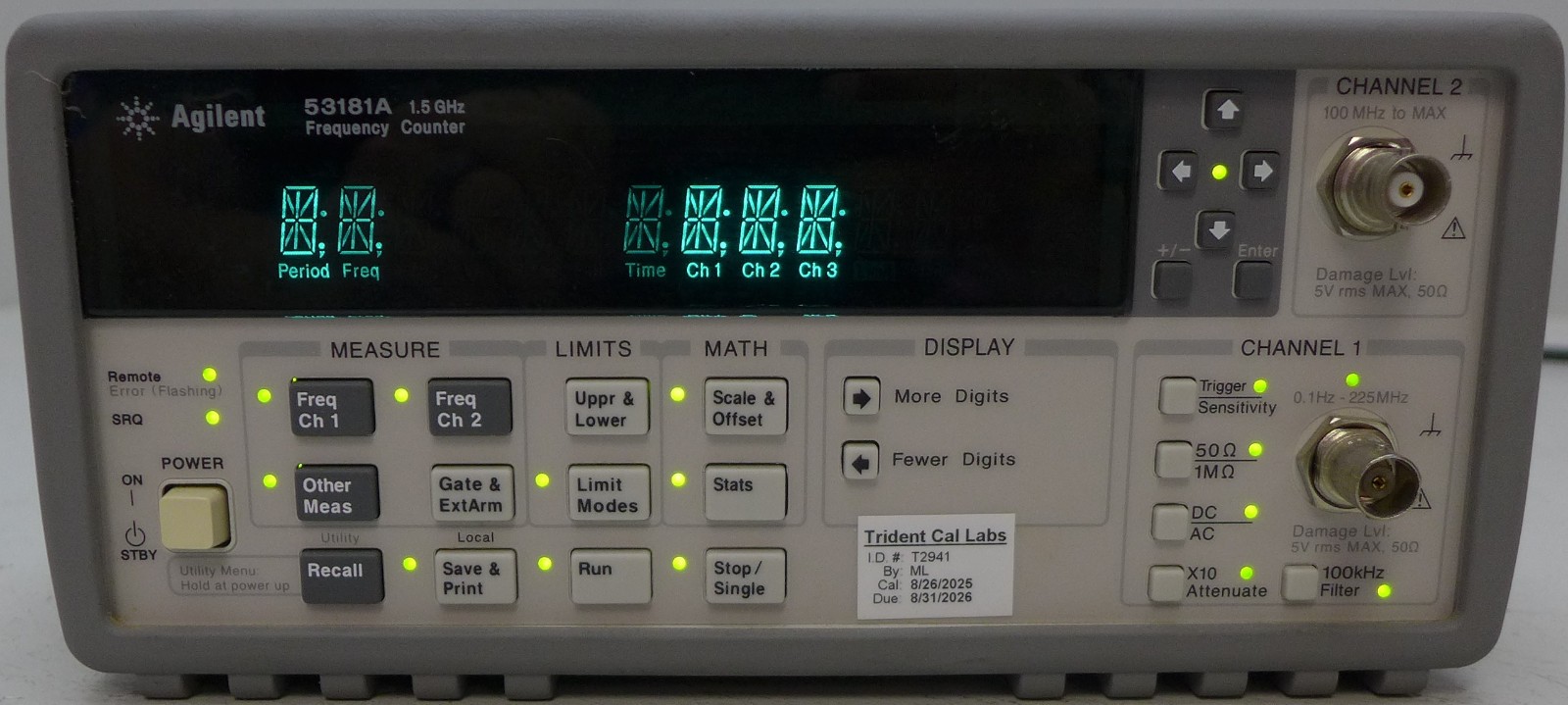

Agilent 53181A 1.5GHz Frequency Counter

Specifications

Returns Accepted
