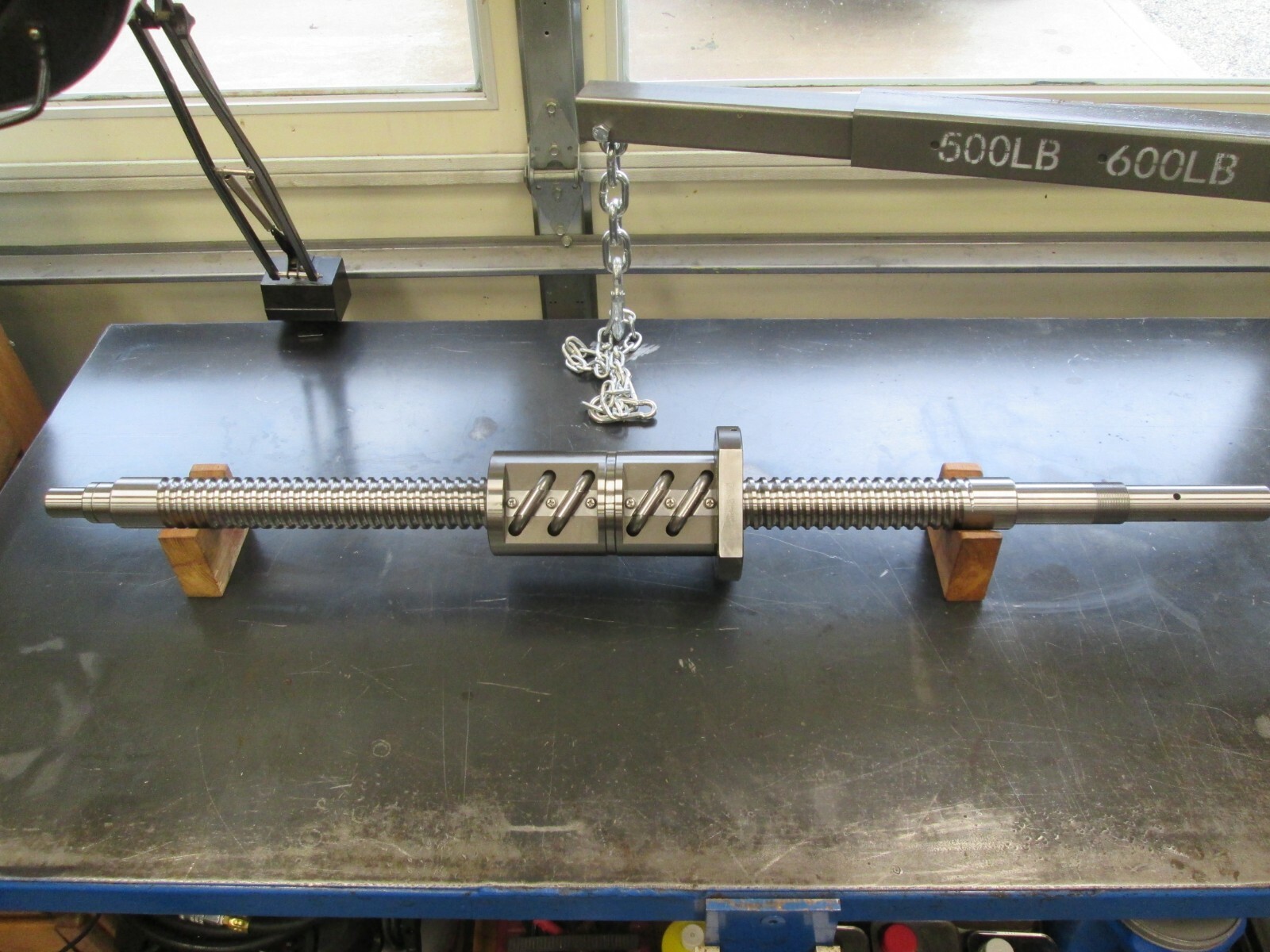

NSK PRECISION GROUND BALLSCREW

~NEW~

(1) P/N: W5007-366DT-C5Z

Manufacturer: NSK

OAL: 45-3/4"

Thread Length: 30"

Travel: 20-7/8"

Thread Dia.: 50mm

Thread Pitch: 12mm

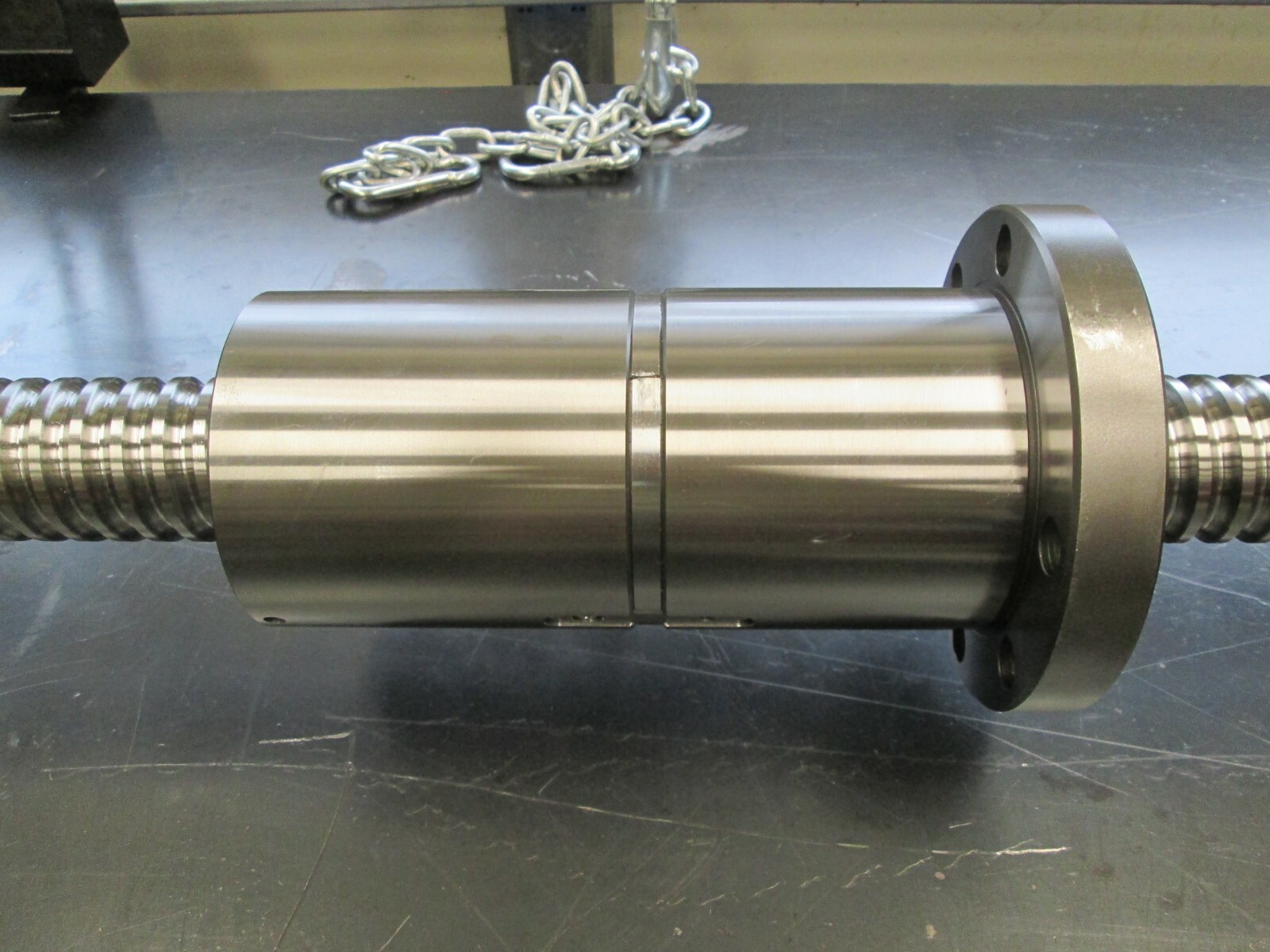

Nut Length: 9-1/8"

Nut Dia. (body): 100mm

Nut Dia. (flange): 146mm

Bearing Dia.: 40mm

Coupling Dia.: 30mm

Condition: ~NEW~

Total Wt: 60 Lbs.

Ref #: 646 E

~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~

WE ALSO OFFER BALL SCREW REFURBISHMENT SERVICES:

Re-balling:

If you are experiencing poor surface finishes, positioning accuracy or axis vibration do to the machines mechanics and have ruled out gibs and thrust bearings. Check the backlash between the ball nut & screw. If the backlash is anywhere from .0005 to .004, a 90% chance, with immediate attention, your ball nut/screw can be re-balled. At a fraction of the cost of a new one, it's well worth entertaining. Generally we can rebuild a unit within a two day period, depending upon stock components.

Re-manufacture:

If the screw and/or ball nut show signs of scoring, pitting or spalling. The screw will need to be either reground or replaced. We have in many cases polished & re-balled the unit after blue printing (a temporary repair) thus keeping the machine operational. While a replacement screw is either being researched for purchase or being re-manufactured. This will keep valuable down time to a minimum.

Acme screw to ballscrew retrofit:

Depending on the space restraints between the machine components and the ball screws are designed with all the original specifications or higher as the Acme. Replacing the ever wearing Acme screw and bronze nut, substantially increases the machines accuracy and value.

PAYMENTS ACCEPTED:

Paypal

*(Items paid by personal or business checks may take longer to be shipped)*

Payment is expected within 7 days of the auction closing. Because of past history with winning bidder's non-payments, unless stated that payment will be late for an acceptable reason within a timely manner, we will be forced to leave negative feedback.

Although we greatly appreciate buyers that figure out their own shipping, and pay immediately; unfortunately it generally causes problems. Please wait until we send you your invoice to pay. Thank You.

SHIPPING & HANDLING:

All items below 150 Lbs. will be shipped via " United Parcel Service" (UPS) Ground. Unless other provisions are necessary. We will ship world wide.

R.P. Machine is responsible for the initial shipping cost only. All other duties and charges are the responsibility of the buyer.

Shipping is calculated via the Ebay shipping calculator, using UPS Ground rate. All items have an additional handling charge which will range from between $2.00 and $20.00 depending on the fragility and special packing needs of your items.

We need to know if we will be shipping to a business or residential address so that we may better calculate shipping cost.

Items above 150 Lbs. will be shipped via freight carrier. Shipping and handling fees may vary by weight and special materials needs.

IN THE EVENT OF A DAMAGED SHIPMENT:

If an item should arrive to the winning bidders address broken, an insurance or return claim may be made if the following provisions are met:

Pictures taken of the damaged item's box as well as the item itself. So that we know what condition the item was in before its return to our facility.

Once you have taken the pictures, please contact us and report the damage as soon as possible.

Steps will then be taken to quickly and efficiently resolve the issue.

Note: If you have any questions, please contact us through eBay. Thanks!

Type	Ball Screw
MPN	W5007-366DT-C5Z
Brand	NSK

NSK PRECISION GROUND BALLSCREW; 12mm LEAD, 50mm THREAD DIA ~NEW~
