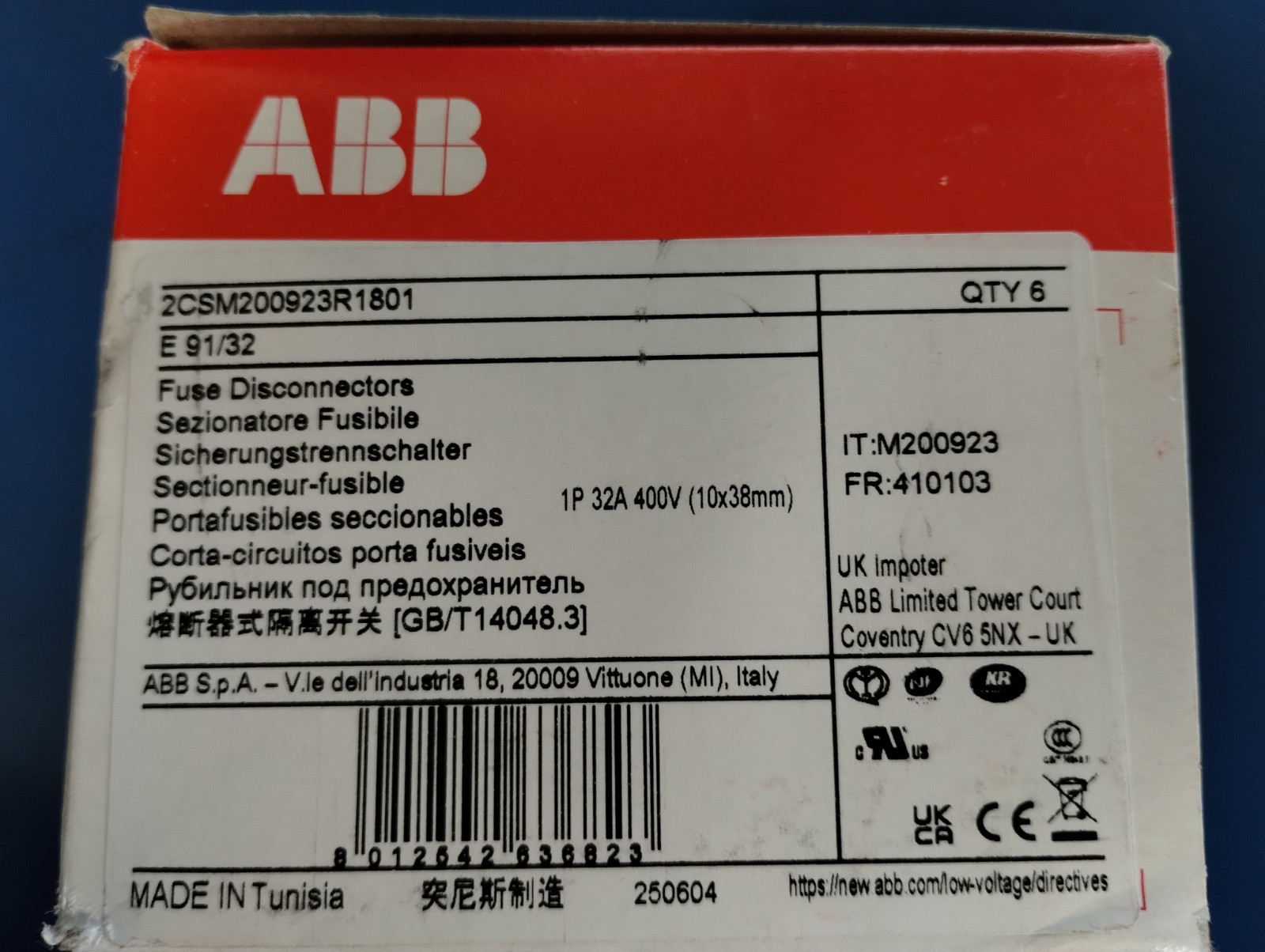

[ Lot of 6 ABB E91/32 (E90 Series) 1‑pole, 32A, 10×38 mm Fuse Switch Disconnector ]

ABOUT THIS ITEM

**[ C9 - New Open Box - F4 -Hardware Functional ]**

UI: [ V003610 ]

**[ New – Open box ]**

INCLUDES: [6 x Fuse Switch Disconnector]

FEATURED DESCRIPTION:

ABB E91/32 (E90 Series) Fuse Switch Disconnector — Key Specs

The ABB E91/32 is a 1‑pole, 32A, 10×38 mm fuse switch disconnector designed for DIN‑rail installations, providing overcurrent and short‑circuit protection. It supports both AC and DC applications up to 690 V, with no blown‑fuse indicator.

⚡ Core Electrical Ratings

Rated current: 32 A

Rated operational voltage:

AC: up to 690 V (AC‑20B), 400 V (AC‑22B)

DC: up to 690 V (per ABB catalog)

Rated insulation voltage (Ui): 1 kV

Rated frequency: 50/60 Hz

Power loss: 3 W per pole at rated conditions

🔌 Fuse & Connection Details

Fuse size: 10×38 mm (midget type)

Number of poles: 1P

Terminal type: Screw terminals

Conductor capacity:

Rigid: 2×5 mm²

Stranded: 2×2–5 mm²

Tightening torque: 2–2.5 N·m

Material: Copper conductor, silver‑plated clips (per T&B listing)

🧰 Mechanical & Environmental

Mounting: DIN rail (E90 modular system)

Locking: Padlockable when open; sealable

Protection degree: IP20

Operating temperature: −5 °C to +40 °C

Storage temperature: −25 °C to +70 °C

Humidity: up to 90% at +20 °C

Altitude: up to 2000 m

📏 Dimensions & Weight

Height: 85 mm

Width: 18 mm (1 module)

Depth: 64 mm

Weight: 61 g

📜 Certifications

UL Listed, CE, RoHS, IMQ, CCC, Lloyd’s Register, Korean Register

🧩 Application Notes

Suitable for switching under no‑load (AC‑20B) and mixed resistive/inductive loads with moderate overloads (AC‑22B).

Designed for overcurrent and short‑circuit protection in industrial control panels.
