New Leuze HTU318-400.3/4PK-M12 Ultrasonic Sensor

Leuze HTU318-400.3/4PK-M12 Ultrasonic Sensor

The Leuze HTU318-400.3/4PK-M12 Ultrasonic Sensor utilizes diffuse reflection with background suppression to accurately detect objects in industrial environments. This sensor is designed to operate within a 0.05 to 0.4 m range, making it ideal for applications requiring short-range object detection. The sensor’s ultrasonic frequency of 300 kHz provides high precision and ensures that it works well even in challenging environments where optical sensors may struggle.

The opening angle of 8° ensures that the sensor has a focuséd detection area, while the resolution of < 2 mm and repeatability of 0.5% ensure reliable and precise measurements. Its ability to handle temperature drift (5%) and switching hysteresis (1%) makes it adaptable for varying environmental conditions.

With a response time of 50 ms, it can be uséd in high-speed processes, and the switching frequency of 10 Hz allows for effective detection and signaling. The sensor offers both signal input and signal output functionality, with selectable switching outputs (NC or NO), making it versatile for various application needs.

The sensor is built with a plastic housing made of Polybutylene (PBT), which provides durability and resistance to harsh environments. It is equipped with an LED display that provides feedback, and operational controls such as NC contact/NO contact changeover and resetting to factory settings make it easy to configure and reset.

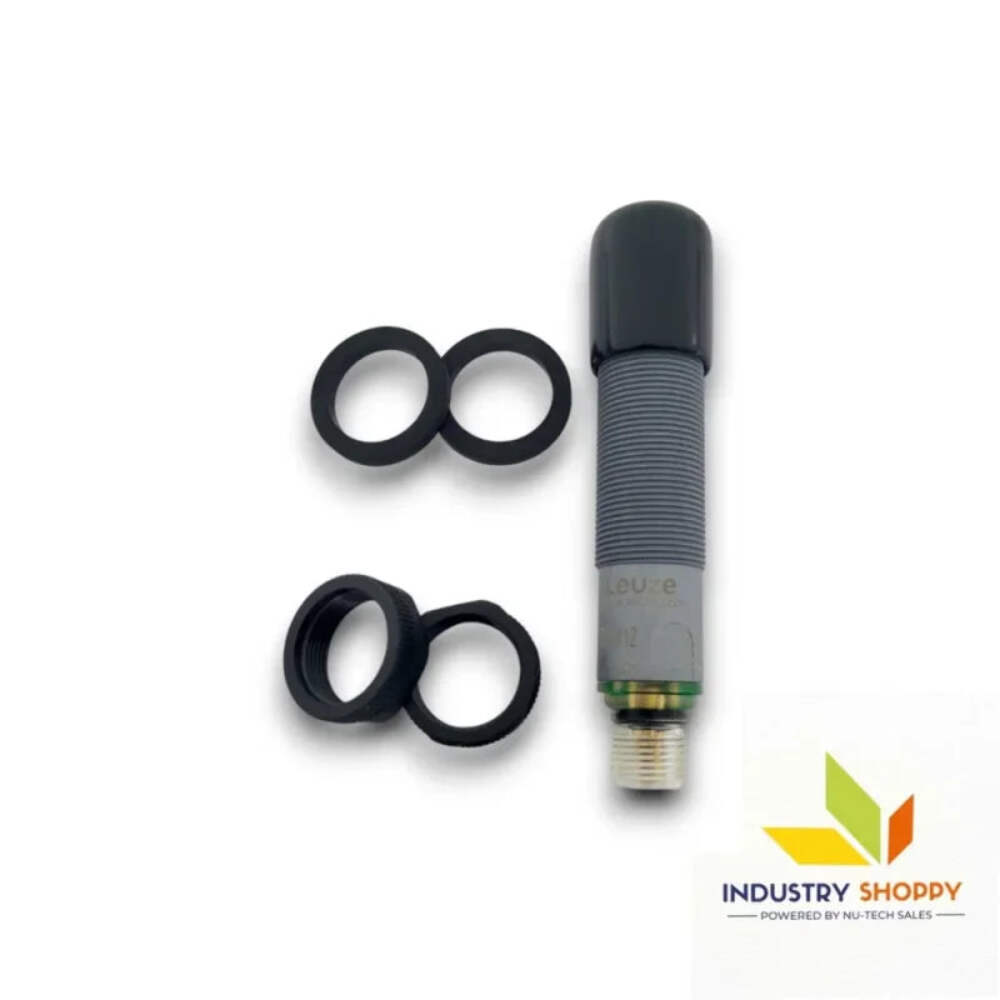

The sensor also includes 2x M18 mounting nuts for secure installation and features an IP 67 rating, offering protection against dust and water ingress, making it suitable for industrial applications.

Key features :-

Product Number	HTU318-400.3/4PK-M12
Part Number	50136082
Series	318
Operating principle	Diffuse reflection principle with background suppression
Contains	2x M18 mounting nut
Operating range	0.05 ... 0.4 m
Operating range	Guaranteed operating range
Ultrasonic frequency	300 kHz
Direction of beam	Front
Opening angle	8 °
Resolution	< 2 mm
Repeatability	0.5 %
Reference value repeatability	End value
Temperature drift	5 %
Reference value, temperature drift	End value
Supply voltage UB	10 ... 30 V, DC
Residual ripple	0 ... 7 %, From UB
Open-circuit current	0 ... 50 mA
Switching hysteresis	1 %
Switching current, max.	100 mA
Switching element	Transistor, PNP
Switching principle	NO (normally open)
Switching element	Transistor, PNP
Switching principle	NC (normally closed)
Number of inputs/outputs selectable	1 Piece(s)
Voltage type, inputs	DC
Switching frequency	10 Hz
Response time	50 ms
Readiness delay	500 ms
Function	Signal IN Signal OUT Voltage supply

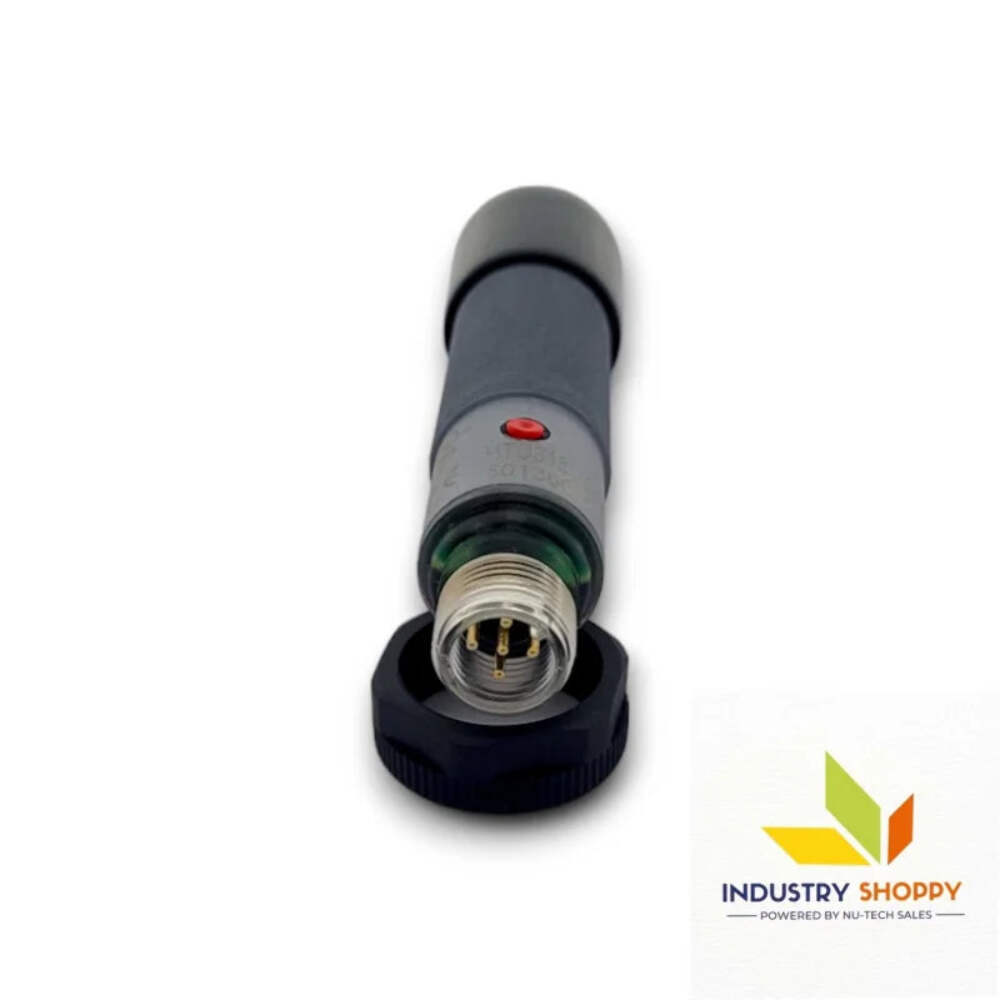

Type of connection	Connector
Thread size	M12
Material	Plastic
No. of pins	5 -pin
Encoding	A-coded
Design	Cylindrical
Thread size	M18 x 1 mm
Dimension (Ø x L)	18 mm x 91.6 mm
Housing material	Plastic
Plastic housing	Polybutylene (PBT)
Sensing face material	Plastic, Epoxy resin, glass fiber reinforced
Ultrasonic transducer material	Piezoceramics (contains lead zirconium titanate (PZT))
Net weight	70 g
Type of display	LED
Number of LEDs	3 Piece(s)
Operational controls	Control buttons
Function of the operational control	NC contact / NO contact changeover Resetting to factory settings Setting for the switching outputs/characteristic output curve
Ambient temperature, operation	-20 ... 70 °C
Ambient temperature, storage	-20 ... 70 °C
Degree of protection	IP 67
Protection class	III
Certifications	c UL US
Standards applied	IEC 60947-5-2

Applications :-

Object Detection: Suitable for detecting small objects in short-range, where precise measurement is required.
Level Sensing: Can be uséd for detecting levels of materials or fluids in tanks or containers in industrial applications.
Positioning: Ideal for applications where precise object or part positioning is crucial.
Packaging and Sorting: Uséd in packaging lines for precise detection and sorting of items based on distance measurements.
Conveyor Systems: Detects the presence of objects on conveyors, helping automate material handling.

Precautions :-

Ensure Correct Wiring: Incorrect connections can cause sensor failure
Avoid Overvoltage: Operating within 10-30V DC prevents damage
Protect from Extreme Heat: Avoid installing near high-temperature sources
Regular Cleaning: Keep the optical lens free from dust and debris for optimal performance
