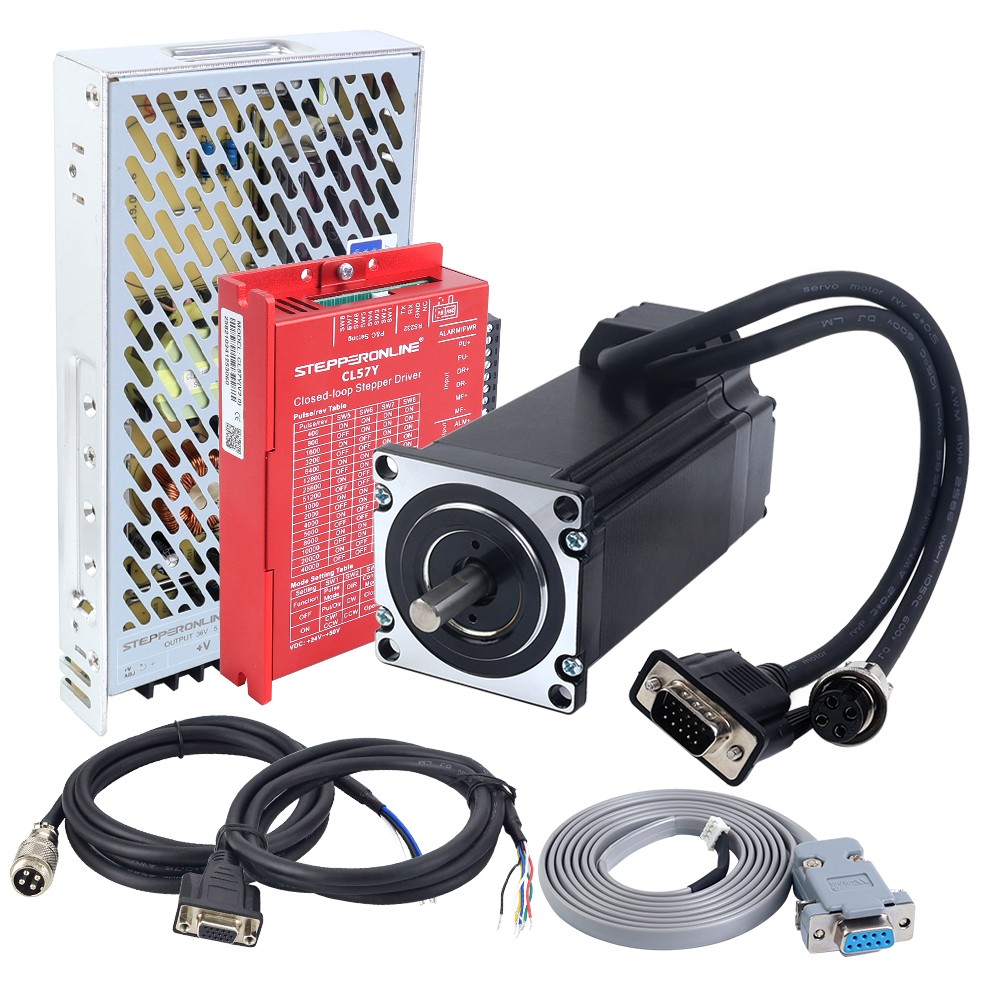

STEPPERONLINE Nema 23 3Nm Closed Loop Stepper Motor Driver CNC Kit W/ Power
USD
$99.00
Seller:
mybotonline
100.0% positive
(5,947 reviews)
Perth Amboy, US
Only 6 left
US
Shipping
Standard Shipping
FREE
USPS Priority Mail
$30.00 USD
Request Quote
View on eBay
As an eBay Partner Network Affiliate, I earn from qualifying purchases.
Secure Transaction
Fast Response
Quality Guarantee
Specifications
| Package | 1 Axis Kit |
|---|---|
| Brand | StepperOnline |
| Shaft Diameter | Φ8mm |
| MPN | 1/3/4-CLYS30-V20 |
| Holding Torque | 3.00Nm(424.83oz.in) |
| Insulation Class | B 130°C[266°F] |
| Country/Region of Manufacture | China |
| Phase Resistance | 0.6ohms ± 10% |
| Inductance | 2.3mH ± 20%(1KHz) |
| Encoder Type | Optical Incremental |
| Encoder Resolution | 1000PPR(4000CPR) |
| Driver Input Voltage | +24~50VDC |
| Driver Output Peak Current | 0~7A(0~5.6RMS) |
| Logic Input Current | 1~7.5mA |
| Isulation Resistance | 10MΩ |
| Full Step Angle | 1.8° (200 Steps) |
| Wiring Configuration | 4-Wire Bipolar |
| Current Type | DC |
| Actual Rated Input Voltage | 24-48VDC |
| Shaft Type | D-Cut |
