15 Watts of paging power
Drive up to (15) 8 Ohm speakers
600 Ohm output to drive additional amplifiers
Select: FXO (loop start), FXS (ring trip) or paging port (VOX relay) interface mode
Independent volume controls for Paging, Ringing Tones and Background Music
36VDC talk battery for interfacing with FXO or unused
PRODUCT DETAILS
The PA-15 interfaces with virtually any telephone system to provide 15 Watts of paging power – enough to drive fifteen 8 Ohm paging horns or paging speakers. This small and light weight chassis design is possible by utilizing new amplifier technology that is 300% more inefficient than old designs competitors use. High efficiency me
The PA-15 provides a 36V talk battery for interfacing with an FXO or unused analog line input / trunk port. With the flip of a switch, the unit can connect to an FXS or PABX / Centrex station ring trip port, or a 600 Ohm paging port. When interfacing with paging systems that do not provide a paging contact closure, the built-in voice activation (VOX) is in control.
After paging, the PA-15 automatically disconnects on CPC, busy signal, silence, or default disconnect timer (helps prevent accidental paging system lock-up if phone is hung-up incorrectly). The paging unit will generate adjustable loud ringing from an independent ringing analog FXS / PABX / Centrex station or from a dry contact closure. The PA-15 can provide background music (muted during page) if connected to an external music source.
Replaces the CPA-7B, provides twice the power and many new features.
PRODUCT DETAILS
The PA-15 interfaces with virtually any telephone system to provide 15 Watts of paging power – enough to drive fifteen 8 Ohm paging horns or paging speakers. This small and light weight chassis design is possible by utilizing new amplifier technology that is 300% more inefficient than old designs competitors use. High efficiency means much less heat dissipation, smaller size, higher reliability, and lower cost.
The PA-15 provides a 36V talk battery for interfacing with an FXO or unused analog line input / trunk port. With the flip of a switch, the unit can connect to an FXS or PABX / Centrex station ring trip port, or a 600 Ohm paging port. When interfacing with paging systems that do not provide a paging contact closure, the built-in voice activation (VOX) is in control.
After paging, the PA-15 automatically disconnects on CPC, busy signal, silence, or default disconnect timer (helps prevent accidental paging system lock-up if phone is hung-up incorrectly). The paging unit will generate adjustable loud ringing from an independent ringing analog FXS / PABX / Centrex station or from a dry contact closure. The PA-15 can provide background music (muted during page) if connected to an external music source.
Replaces the CPA-7B, provides twice the power and many new features.
ans much less heat dissipation, smaller size, higher reliability, and lower cost.

Country of Origin	United States
Brand	Viking
Model	viking
MPN	pa-15

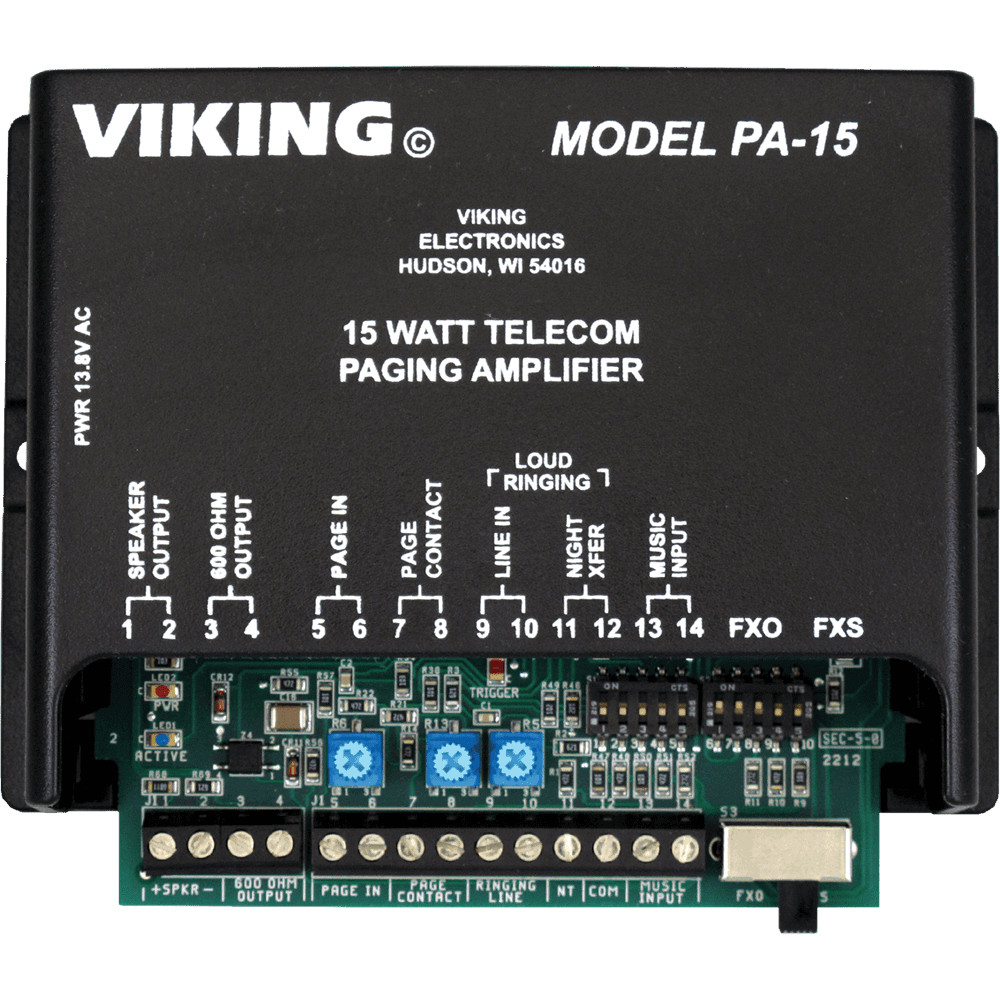

Vikimg 15 watt Paging Amplifier model PA-15
