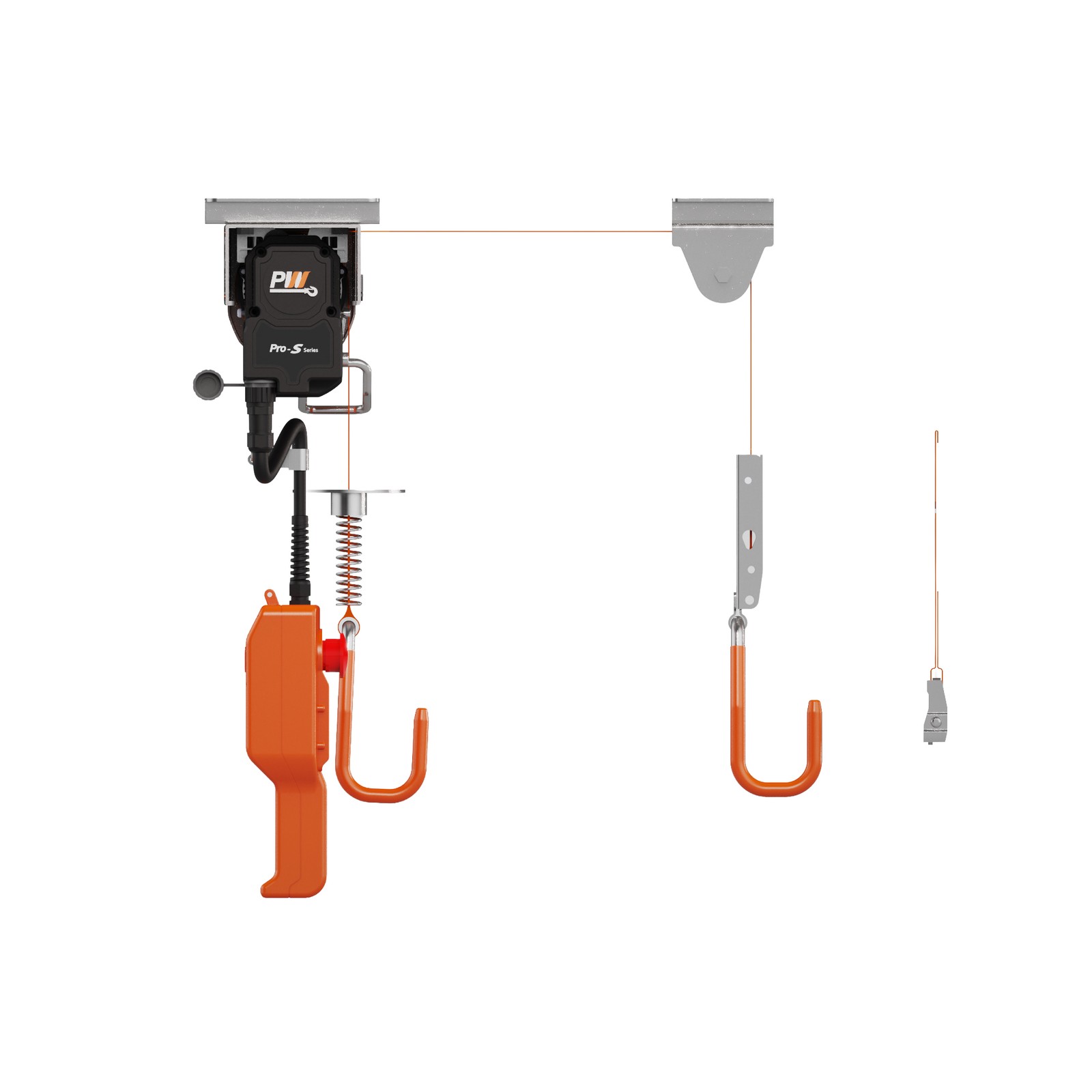

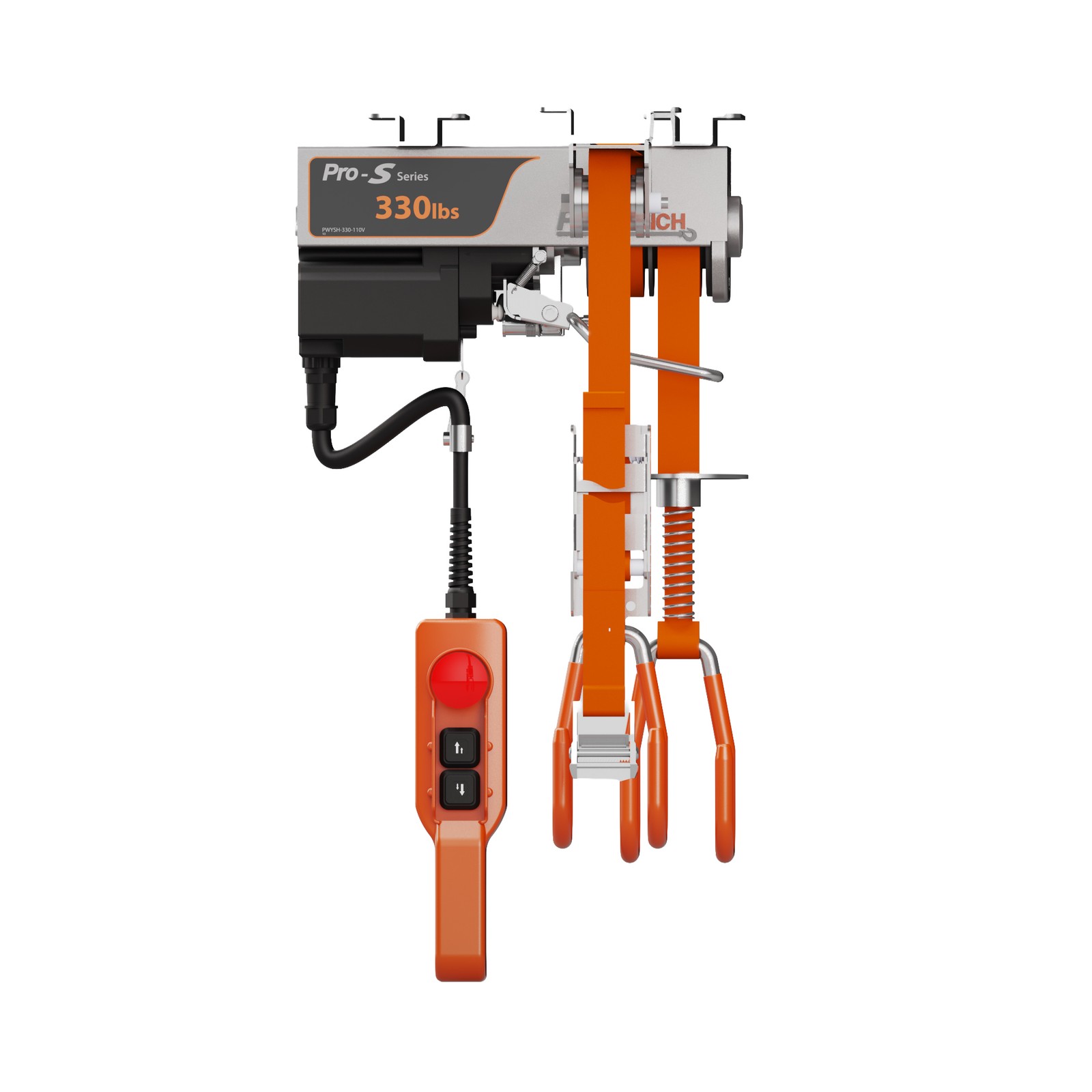

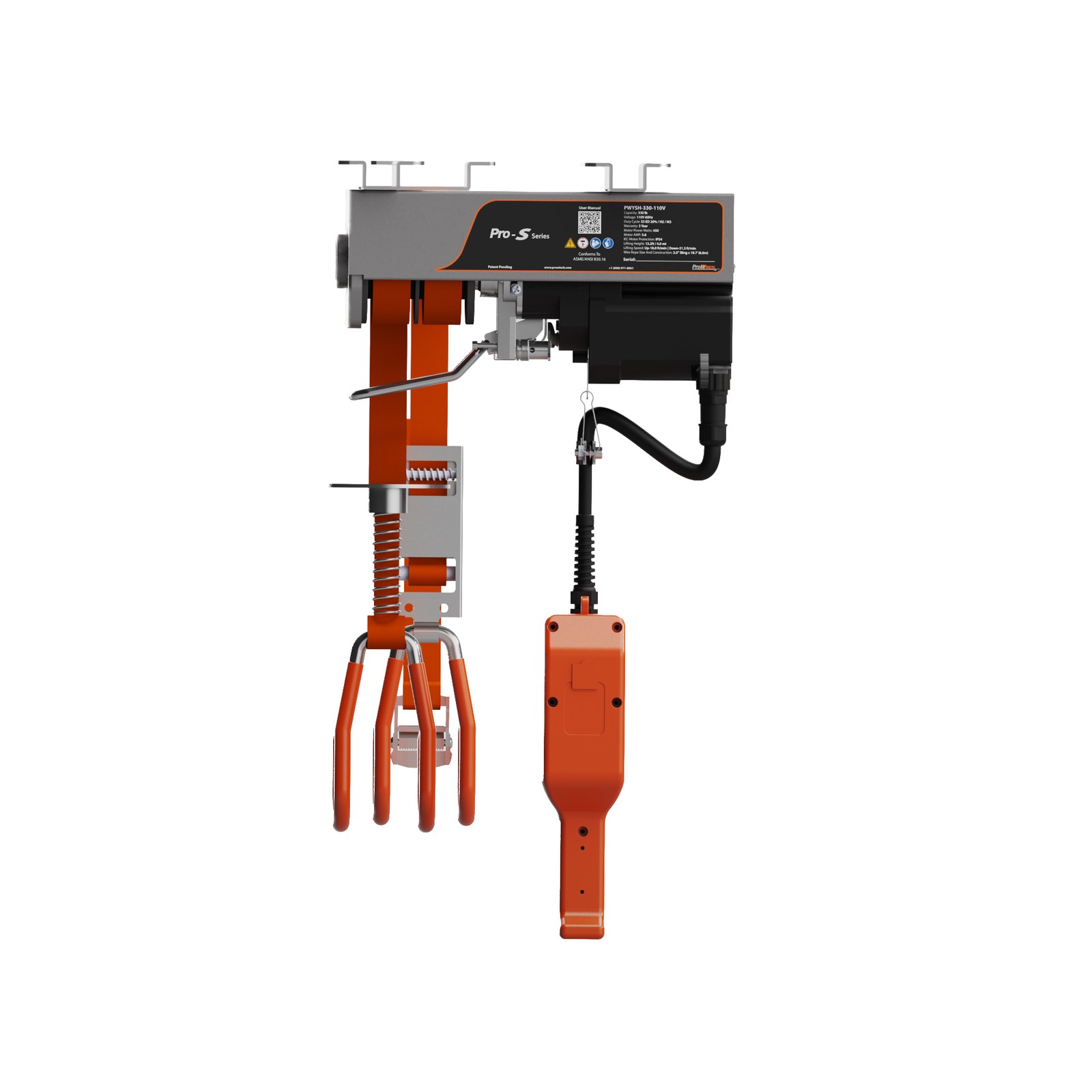

PWYSH-330-110V 330 lb Storage Hoist System 110V Double Brake 4000 FLC

3 Year Warranty, Customer Support and Service in the USA

Technical Specifications

MRC Rated Capacity	330 lb
Number of Speeds	1 Speed
Duty Class	A1 ED 20% / H2 / M3
Standard Lifting Height	15 ft / 4.5 m
Voltage	1 Phase 120V 60Hz
Speed (f/m) / min	16.4 ft/min
Wireless Control	PWYT-W-SET-2C-BM
Full Load Duty Cycles	8000
IEC Pendant Control IP Protection	IP65
Pendant Control cable length	10 ft
Pendant Control w/Quick Connector	Yes
Control Included	Pendant Control w/ E. Stop
Motor Model	Brushless motor
Motor Power	350
Motor AMP	4.7
Motor RPM	13500
Motor Insulation Grade	B
Motor Capacitor Microfarad (µf)	470uf/450V
Motor Brake	Yes
Reducer Brake	Yes
Wire Rope Included	1.2" Sling x 15' (4.5m)
Wire Rope Rig / Falls	2 Belts
Hoist Motor Brake Type and DC Voltage	Electronic brake and Mechanical brake
Hoist Limit Switches	Up and Down
IEC Electric Enclosure Protection	IP54
IEC Motor Protection	IP54
Standards Compliance	ASME/ANSI B30.16
Warranty	3 Year

Dimensions

A Total Height	25.2 In / 64.0 Cm
H Minimum Headroom	24.6 In / 62.5 Cm
W Width	14.2 In / 36.1 Cm
D Depth	4.7 In / 11.9 Cm
J Hook Opening	6 In / 15.2 Cm
Total Weight (w/out cable or Chain)	23.1 Lbs / 10.5 Kg

Packaging

Package 1 Height	10.6 In / 27 Cm
Package 1 Width	5.5 In / 14 Cm
Package 1 Length	18.1 In / 46 Cm
Package 1 Net Weight	24 Lbs / 11 Kg
Package 1 Gross Weight	24.9 Lbs / 11 Kg

About Prowinch

Prowinch was established in 1995 and currently has locations in the United States, Chile, Colombia, Mexico, Costa Rica and El Salvador. We sell winches, electric chain hoists, cranes and related equipment and accessories. Our products are used in many different industries, such as fabrication, assembly, logging and warehousing. We offer hoists and winches that are suitable for hobbies or heavy-duty industrial applications. Our team will work with you to find the perfect unit for any application, and we even offer custom-made solutions.

1875/01

CL-AT-Q-18872/0

Q-18872/0

Brand	Prowinch
MPN	PWYSH-330-110V
UPC	791126143893

Storage Hoist System 330 lb 110V Double Brake 4000 FLC Prowinch
