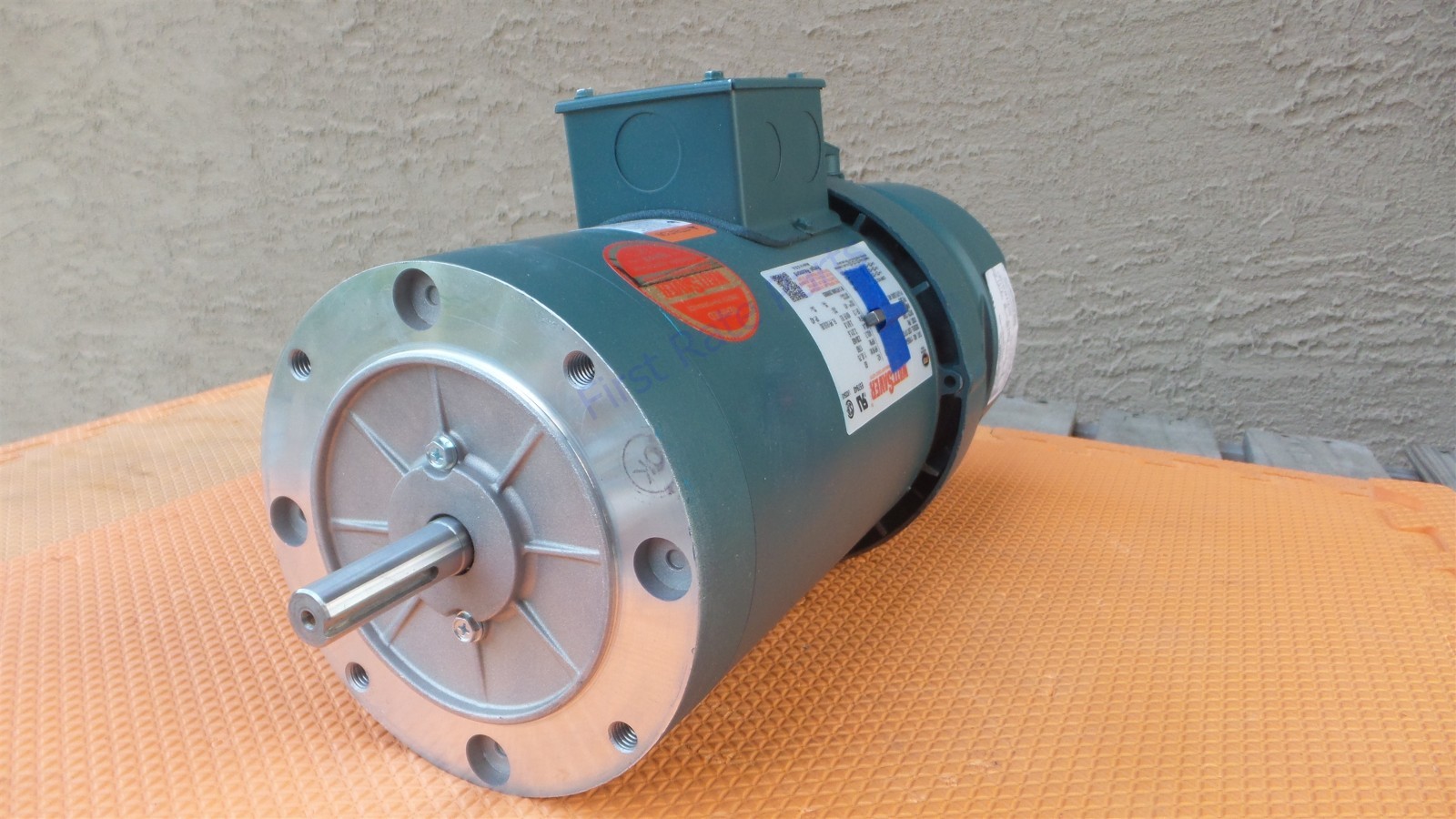

Leeson 119564.00 Brake Motor 1HP C6T17FC249 Wattsaver C6T17FC249A 230V 460V 3PH
USD
$999.95
Seller:
firstratepart
100.0% positive
(229 reviews)
Farmington, US
Only 1 left
US
Shipping
UPS Ground
$84.95 USD
Request Quote
View on eBay
As an eBay Partner Network Affiliate, I earn from qualifying purchases.
Secure Transaction
Fast Response
Quality Guarantee
Specifications
| Rated Load (HP) | 1 |
|---|---|
| IEC Frame Size | 56 |
| NEMA Design Letter | Design B (General Purpose) |
| Special Motor Construction | Brake Motor |
| AC Frequency Rating | 60 Hz |
| Enclosure Type | TEFC (Totally Enclosed Fan Cooled) |
| Base RPM | 1760 |
| Shaft Type | Keyed |
| AC Motor Type | Induction/Asynchronous |
| Shaft Diameter | 5/8 in |
| MPN | 119564.00 |
| Insulation Class | F (Max 311°F) |
| Mounting Type | Face-Mounted |
| Brand | Leeson |
| Reversible/Non-Reversible | Reversible |
| Current Type | AC |
| Service Factor | 1.15 |
| Nominal Rated Input Voltage | 230 V, 460 V |
| Model | C6T17FC249A |
| NEMA Frame Suffix | C |
| AC Phase | Three Phase |
