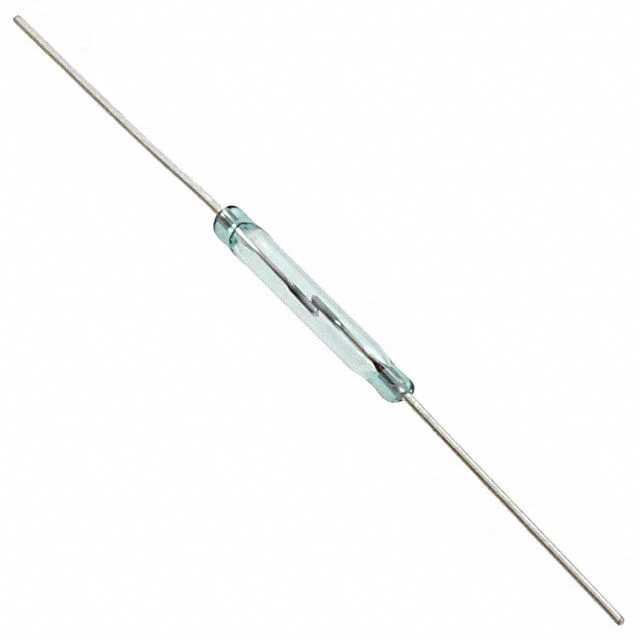

Littelfuse MDSR-7-10-25 Glass Body Reed Switch (Lot of 60+)

New Old Stock

Condition: New in original packaging unless otherwise noted. Please review all specifications carefully before purchase. Photos for representation and reference only.

Specifications:

Manufacturer: Littelfuse Inc.
Manufacturer Part Number: MDSR-7-10-25
Series: MDSR-7
Type: Glass Body Reed Switch
Circuit: SPST-NO
Operate Range: 10 ~ 25AT
Power - Rated: 10W
Voltage - Switching AC: 140 V
Voltage - Switching DC: 200 V
Current - Switching: 350mA (AC), 500mA (DC)
Current - Carry: 800mA (DC)
Operate Time: 0.6 ms
Release Time: 0.2 ms
Capacitance: 0.3 pF
Termination Style: Axial
Mounting Type: Through Hole
Length - Overall: 1.590" (40.39mm)
Size - Body: 0.071" Dia x 0.500" L (1.80mm x 12.70mm)
Operating Temperature: -40°C ~ 125°C
Packaging: Bulk

More Specifics:

Miniature glass body reed switch with SPST-NO configuration.
10-25AT operate range for reliable switching in a variety of magnetic field applications.
Fast operate (0.6 ms) and release (0.2 ms) times for high-speed switching.
Low capacitance (0.3 pF) suitable for high-frequency applications.
Rated for 10W, 200VDC, and 500mA switching.
Ideal for use in proximity sensors, security systems, and test equipment.
This listing is for a lot of 60+ pieces (actual count may vary slightly).

About Littelfuse Reed Switches:

Littelfuse is a leading manufacturer of circuit protection and switching components. Their reed switches are widely used in automotive, industrial, and consumer applications for position sensing, liquid level detection, and security systems.

The MDSR-7 series features a hermetically sealed glass envelope for long life and reliable operation in harsh environments. The MDSR-7-10-25 is a popular choice for general-purpose switching applications.

This listing is for a lot of 60+ pieces. Please verify the part number and specifications to ensure compatibility with your application.

New Old Stock Disclaimer: These are genuine Littelfuse parts, new and unused. We recommend verifying all specifications and contacting us with any questions before purchase.
