Description

Note：If you have any questions, please contact us before open any case, we promise will solve the problem for you. Thanks！

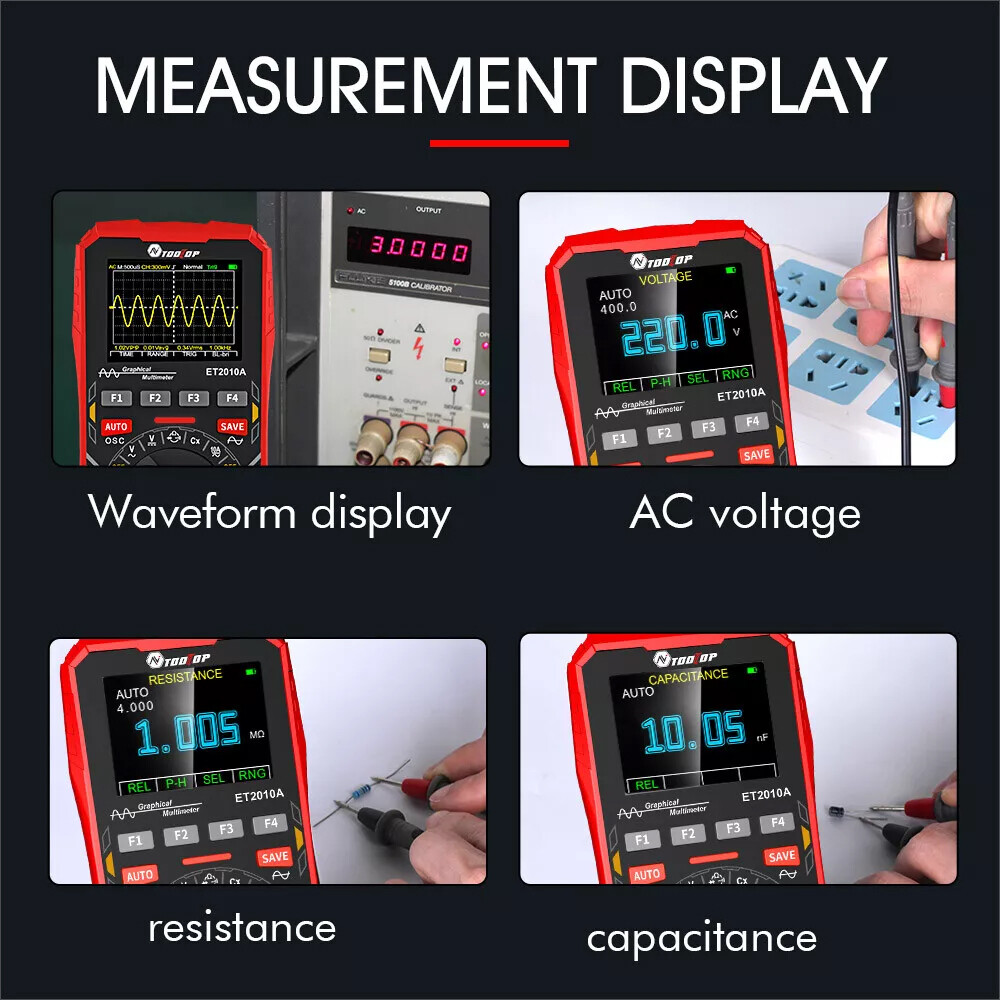

This product is an example of a combination of an 1MHz oscilloscope and a 4000-count autoranging multimeter. It can simultaneously measure a variety of electrical parameters or capture waveforms, and display the electrical parameters or waveforms of electrical signals. Multifunctional design, with base adjustable, amplitude adjustable, data storage, and auto-sleep functions. Supports ACVoltage, DCVoltage, resistance, capacitance, frequency, diode and on/off test functions. It can easily handle measurement in various fields, widely used in the fields of testing and debugging of electronic circuits, troubleshooting and repairing of electronics, communications, computers, etc.

Features:

【2-in-1 Versatility & Digital Display】: Combining a 1MHz oscilloscope with a 4,000-count auto-ranging multimeter, this instrument provides a comprehensive diagnostic toolset for automotive, electronics, and industrial applications. Its 320*240 high-resolution color display ensures clarity in both waveform visualization and numerical readings. Historical data and real- data are displayed on the same screen.

【3 Trigger Modes & Auto Capture】: This device features three triggering modes: AUTO, NORMAL, and , ensuring precise control over waveform acquisition. The auto-capture function simplifies operation by automatically capturing waveforms, suitable for quick analysis and troubleshooting.

【In-depth Measurement Capabilities】: Offering multiple measurement functions, including Vp-p, Vavg, Vrms, Hz, and more, this unit provides a detailed analysis of voltage, current, resistance, capacitance, frequency, and duty cycle. It also includes REL and Maximum/Minimum testing for enhanced accuracy and data analysis, effectively eliminating the influence of leadwire resistance and distributed capacitance on the measurement results.

【Enhanced User Experience】: With a 100-group data storage capacity and 10-waveform memories, users can conveniently store and recall critical measurements. The silent mode and auto-sleep function add to user comfort and efficiency, while the compact size and lightweight design make it highly portable.

【Comprehensive Safety & Wide Applications】: This instrument is equipped with dual fuses for added safety, ensuring safer operation in various environments. It can easily handle measurement in various fields of testing and debugging electronic circuits, troubleshooting and repairing electronics, communications, computers, etc.

Specifications:

Name: 2in1 Oscilloscope Multimeter

Material: ABS

: 3 * AA (not included)

Display: 320*240 display

Auto-sleep: no operation for 15 minutes or disabled

Storage: 100 data, 10 waveforms

Fuse: 10A, 250 V

Use environment: 0℃-40℃; <75%RH relative humidity

Storage environment: -10℃ to +60℃; <90%RH relative humidity

Multimeter:

ACvoltage: 400mV-600V

DCvoltage: 400mV-600V

ACcurrent: 4A-10A

DCcurrent: 4A-10A

Resistance: 400.0Ω-40.00ΜΩ

Capacitance: 51.2nF~100uF

Frequency: 5Hz-5MHz

Duty cycle: 0%-100%

Diode test: Voltage is about 1.5V

Continuity test: Resistance<50Ω, beep

Oscilloscope:

Bandwidth: 1MHz

Maximum real- sampling rate: 2.5Msps

Number of channels : 1

Vertical sensitivity ranges: 300mV- 1000V/div

Timebase ranges: 2.5us-10s/div

Vertical ranges accuracy: ±(5%+ 0.2div)

base accuracy: ±(0.01%+ 0.1div)

Trigger modes: Auto/ /Normal

Trigger edges selection: Rising/falling edges

Automatic sleep: 15 minutes or disabled

Measurement function: Vp-p, Vavg, Vrms, Hz

Input resistance: about 10MΩ

Package size: 195 * 140 * 45mm / 7.68 * 5.51 * 1.77in

Package weight: 290g / 10.23ounce

Packing List:

1 * 2in1 Oscilloscope Multimeter

1 * Pair of Test Pen

1 * Guideline

1 * Storage Bag
