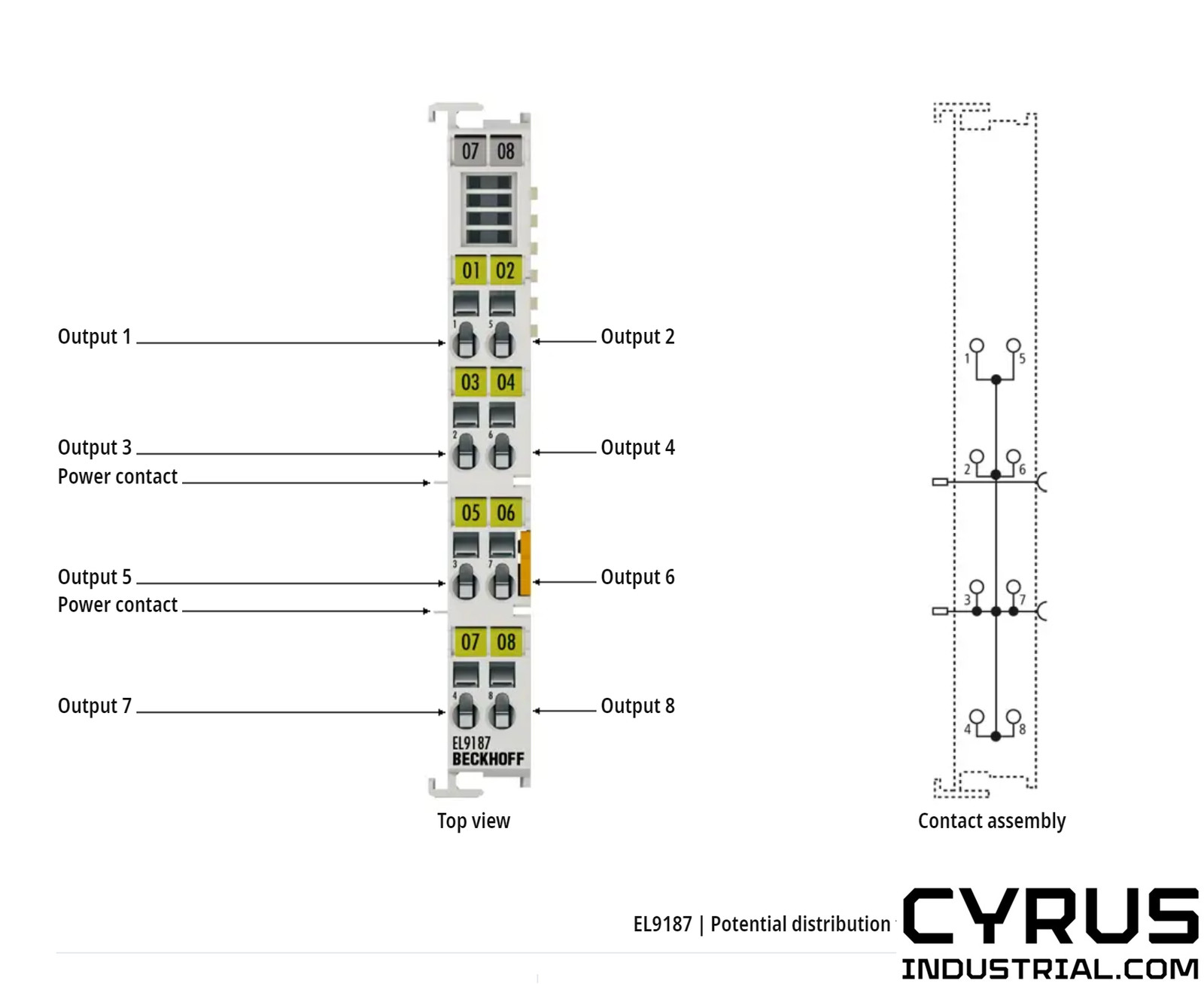

The EL9187 potential distribution terminal provides 8 terminal points with the 0 V potential at the front on the terminal contacts. The 0 V power contact is connected to the front-side terminal contacts and is passed through to the adjacent terminal. The 24 V power contact is not connected to the front-side terminal contacts and is passed through to the adjacent terminal. With the EL9187, the use of additional terminal blocks on the terminal strip can be reduced.

Technical data	EL9187
Technology	potential distribution terminal
Number of outputs	e.g.: 8 x 0 V contact
Current load	≤ 10 A
Nominal voltage	≤ 60 V DC / ≤ 30 V AC
Electrical isolation	500 V (E-bus/field potential)
Connection facility to additional power contact	8
Bit width in the process image	0
Housing width	12 mm
Side by side mounting on EtherCAT Terminals with power contact	yes, left without PE
Weight	approx. 50 g
Operating/storage temperature	-25…+60 °C/-40…+85 °C
Pluggable wiring	for all ESxxxx terminals
Approvals/markings	CE, UL, ATEX, IECEx
Ex marking	ATEX: II 3 G Ex nA IIC T4 Gc IECEx: Ex ec IIC T4 Gc

Housing data	EL-12-8pin	ES-12-8pin
Design form	compact terminal housing with signal LEDs	terminal housing with pluggable wiring level
Material	polycarbonate
Dimensions (W x H x D)	12 mm x 100 mm x 68 mm
Installation	on 35 mm DIN rail, conforming to EN 60715 with lock
Side by side mounting by means of	double slot and key connection
Marking	labeling of the BZxxx series
Wiring	solid conductor (e), flexible conductor (f) and ferrule (a): spring actuation by screwdriver
Connection cross-section	s: 0.08…2.5 mm², st: 0.08…2.5 mm², f*: 0.14…1.5 mm²	s: 0.08…1.5 mm², st: 0.08…1.5 mm², f*: 0.14…1.5 mm²
Connection cross-section AWG	s: AWG 28…14, st: AWG 28…14, f*: AWG 26…16	s: AWG 28…16, st: AWG 28…16, f*: AWG 26…16
Stripping length	8…9 mm	9…10 mm
Current load power contacts	Imax: 10 A

*s: solid wire; st: stranded wire; f: with ferrule

Brand	BECKHOFF
MPN	EL9187
