Business & Industrial|Industrial Automation & Motion Controls|Electric Motors|General Purpose Motors

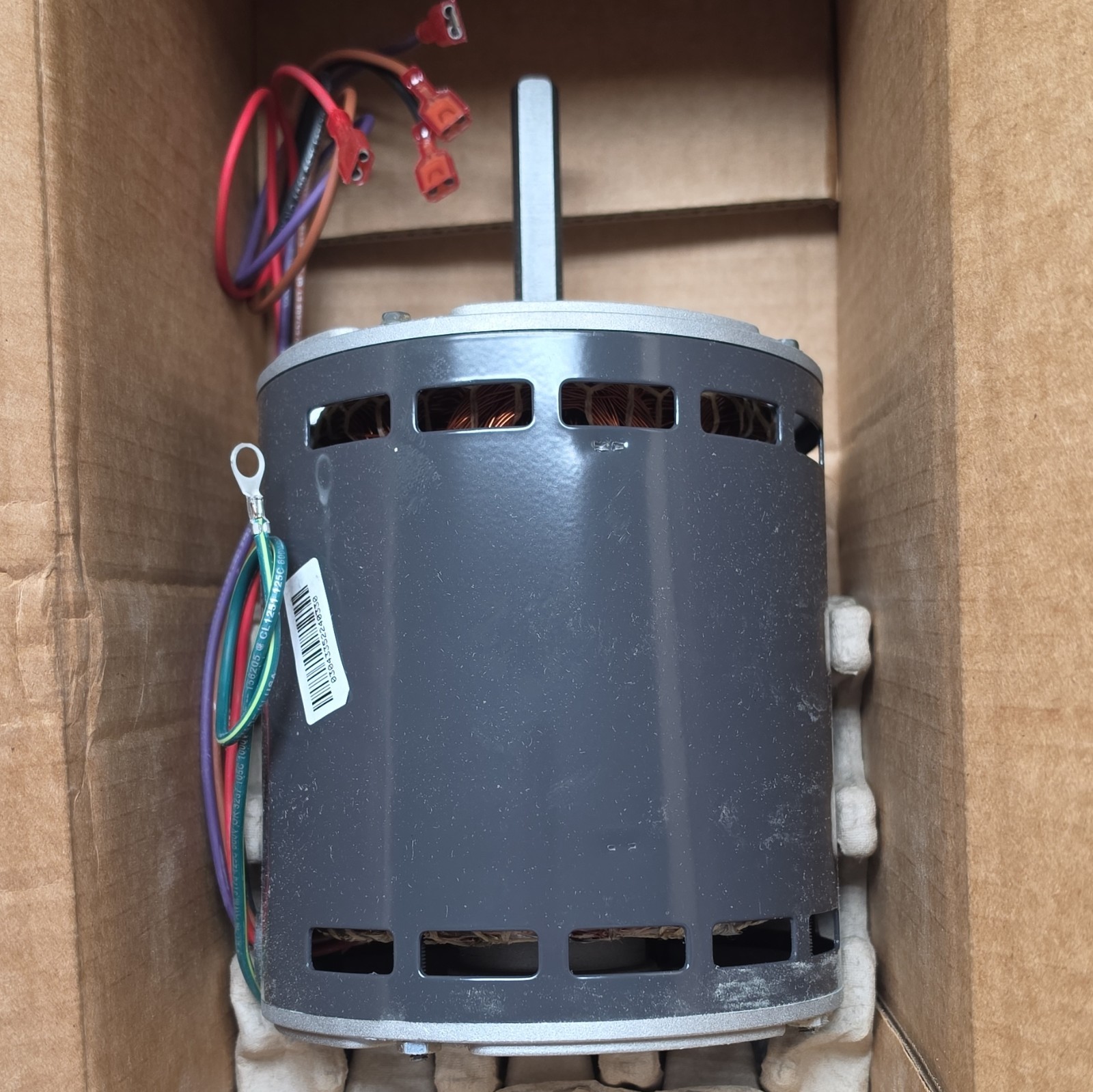

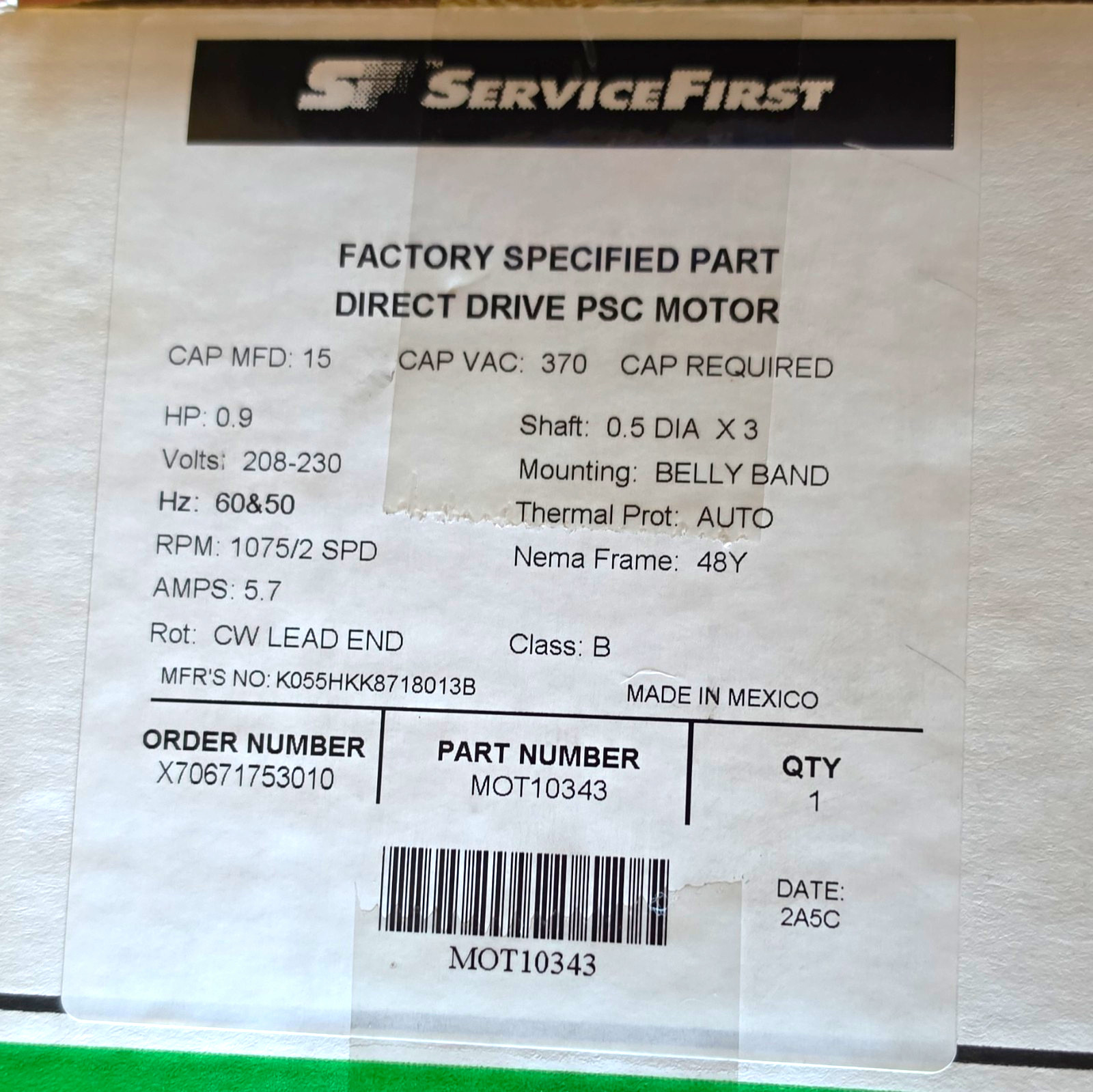

ServiceFirst MOT10343 Direct Drive PSC Motor 0.9HP 208-230V 1075/2
USD
$400.00
Seller:
je-940416
100.0% positive
(26 reviews)
Lapeer, US
Only 1 left
US
Request Quote
View on eBay
As an eBay Partner Network Affiliate, I earn from qualifying purchases.
Secure Transaction
Fast Response
Quality Guarantee
Specifications
| Actual Rated Input Voltage | 208-230 V |
|---|---|
| Inverter/Vector Duty Rating | Not Inverter/Vector Duty Rated |
| Special Motor Construction | Direct Drive |
| Base RPM | 1075/2 SPD |
| MPN | MOT10343 |
| Insulation Class | B |
| Current Type | AC |
| Service Factor | 1.00 |
| NEMA Frame Suffix | Y |
| Full Load Amps | 5.7 |
| IEC Frame Size | 48Y |
| NEMA Design Letter | Design B (General Purpose) |
| Rated Load (HP) | 0.9 |
| AC Frequency Rating | 60&50 |
| Enclosure Type | Open |
| Shaft Type | Straight |
| AC Motor Type | Induction/Asynchronous |
| Shaft Diameter | 0.5 in |
| Mounting Type | Belly Band |
| DC Stator/Winding Type | Permanent Magnet |
| Brand | ServiceFirst |
| Reversible/Non-Reversible | Reversible |
| Protection Against Liquids | Not Protected |
| IP Rating | Not Rated |
| Model | Direct Drive PSC Motor |
| Nominal Rated Input Voltage | 208-230 V |
| AC Phase | Single Phase |
| Protection Against Solids | Not Protected |
