Keysight N2795A

Active Probe, 1 GHz

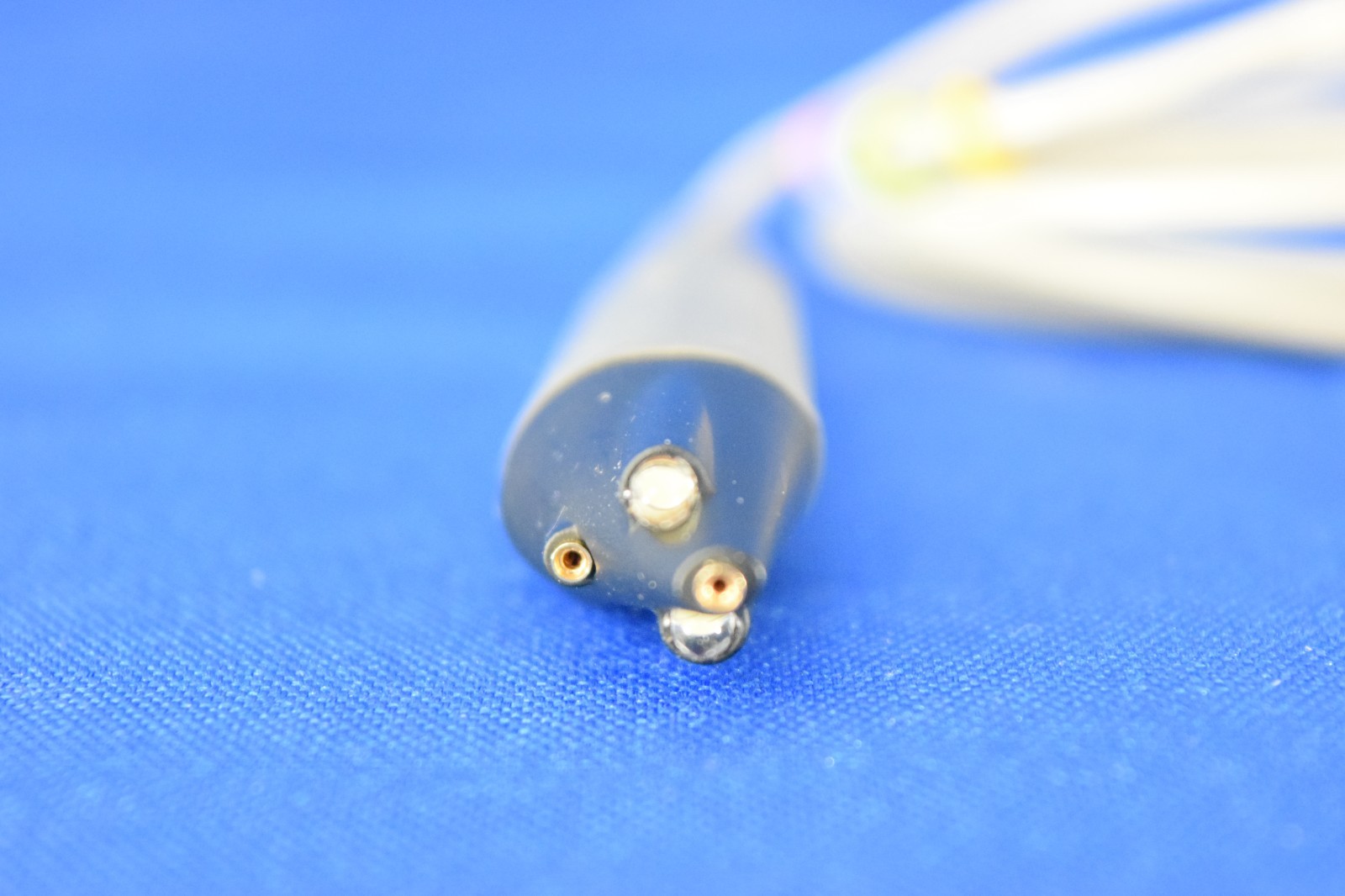

Unit is unused new old stock. Please see pictures.

Manufacturer Description:

The N2795A is a new generation of low-cost, single-ended active probe with the AutoProbe interface. The probe integrates many of the characteristics needed for today's general-purpose, high-speed probing - especially in digital system design, component design/characterization, and educational research applications. Its 1MΩ input resistance and extremely low input capacitance (1 pF) provide ultra low loading of the DUT. This, accompanied with superior signal fidelity, makes this probe useful for most of today's digital logic voltages. And with its wide dynamic range (±8 V) and offset range (±8 V), the probe can be used in a wide variety of applications.

For high signal integrity probing, the N2795A 1 GHz active probe is a perfect complement to Keysight's 500MHz and 600MHz bandwidth Infiniium and InfiniiVision Series scopes.

The N2795A is equipped with a white LED headlight to illuminate the circuit under test. The probe is powered directly by the InfiniiVision and Infiniium Autoprobe interface, eliminating the need for an additional power supply. The probe also comes with a number of accessories that allow for easy connections to the circuit under test.

1 GHz bandwidth (-3dB)
High resistance (1MΩ) and low capacitance (1 pF) input for low loading
Wide input dynamic range (±8V) and offset range (±8V)
Built-in headlight for better visibility while probing
Includes various probe tip accessories
Direct connection to AutoProbe interface (no power supply required)
Provides full system bandwidth with InfiniiVision and Infiniium oscilloscopes with bandwidths up to 500 MHz

All orders shipped in Instapak Foam-Fitted packaging material.

TestEquity, LLC
1935 Plaza Real Oceanside, CA 92056

Brand	Agilent
MPN	N2795A

Agilent N2795A Active Probe, 1 GHz

Specifications

Returns Accepted
