Fluke 718Ex 30G

30G Pressure Calibrator

Serial No: 6017506

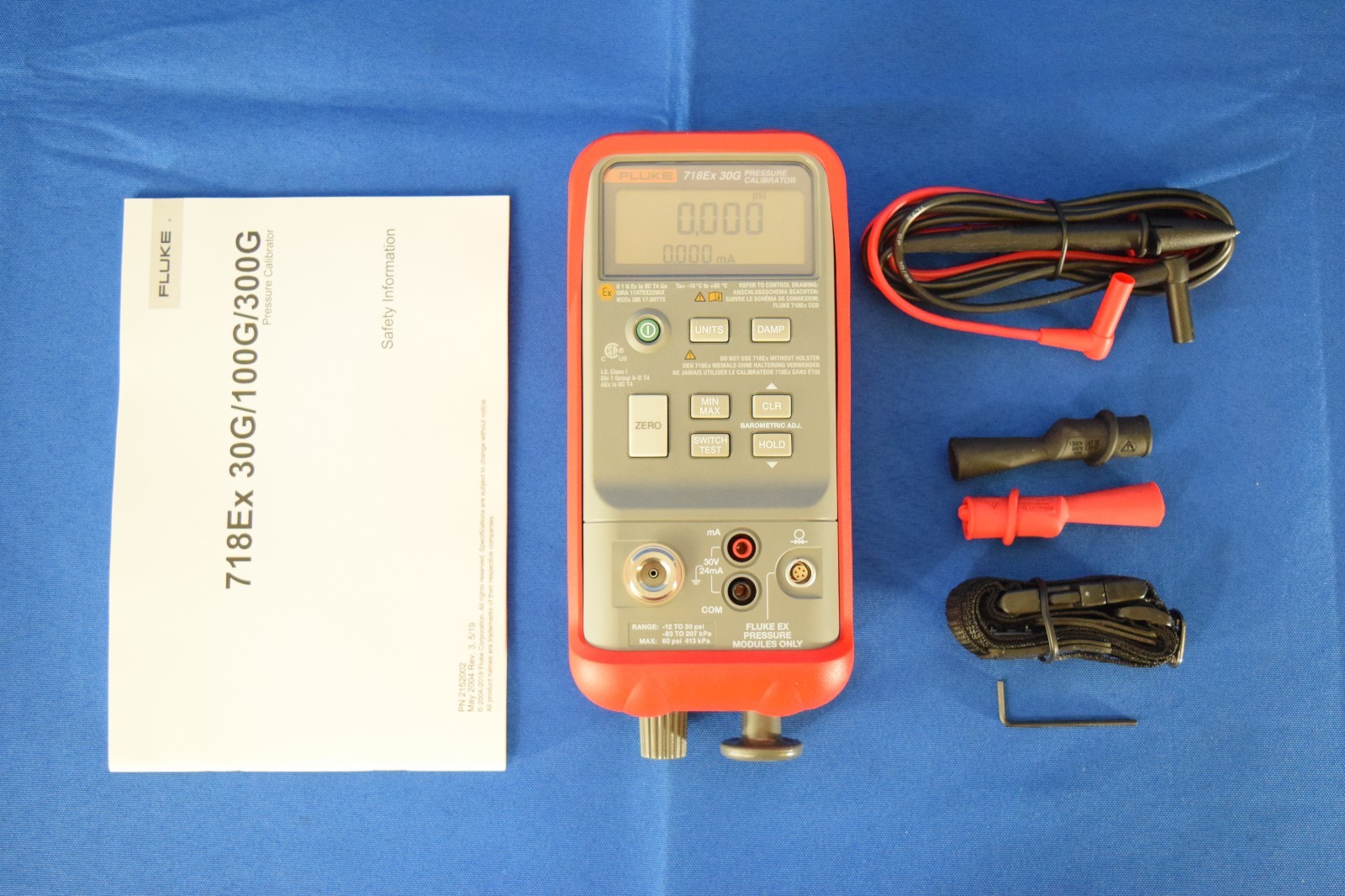

Unit is unused new old stock. Please see pictures.

Manufacturer Description:

The Fluke 718EX-30G Intrinsically Safe Pressure Calibrator is designed to calibrate P/I (pressure to current) transmitters, a task it accomplishes with precision. The device is equipped to measure pressure through a 1/8-inch NPT pressure fitting and an internal pressure sensor. Alternatively, it can also utilize Fluke 750PEx Series Pressure Modules for this purpose. In addition to pressure, the Calibrator can measure current up to 24 mA, demonstrating its multifunctional nature. One of its highly useful features is its ability to simultaneously display pressure and current measurements, providing a comprehensive view of the parameters being monitored. Furthermore, it can perform switch testing, adding to its repertoire of functions. The Calibrator is not only functional but also precise. It provides 5-digit pressure readings in a variety of units including psi, inH2O at 4 C, inH2O at 20 C, kPa, cmH2O at 4 C, cmH2O at 20 C, bar, mbar, kg/cm2, inHg, and mmHg. Its full-scale pressure sensor input is 206.85 kPa or 2.0685 bar, with an overload indication appearing at 33 psi. The device offers a resolution of 0.01 psi (0.01 kPa) and maintains an accuracy of 0.05% FS, ensuring reliable and accurate readings. This combination of versatility, functionality, and precision makes the Fluke 718EX-30G Intrinsically Safe Pressure Calibrator an invaluable tool in its field. The Fluke model 718EX-30 is an intrinsically safe pressure calibrator that features:

ATEX II 1G EEx ia IIC T4 Compliant.
Built-in pressure / vacuum hand pump, with fine adjust vernier and bleed valve.
Pressure measurement to 0.05% of full span, using an internal pressure sensor.
Pressure measurement to 200 bar using any of eight intrinsically safe Fluke 700PEx Pressure Modules.
Wide range of selectable measurement units for pressure
Current measurement with 0.02% accuracy and 0.001 mA resolution.
Pressure switch test function.
Min-Max Hold functions.
Simple, push-button user interface.
Rugged and reliable, ideal for field use.

All orders shipped in Instapak Foam-Fitted packaging material.

TestEquity, LLC
1935 Plaza Real Oceanside, CA 92056

Brand	Fluke
Product	Pressure Calibrator
MPN	718Ex 30G
Country of Origin	United States

Fluke 718Ex 30G Pressure Calibrator
