Features

Reliable starting of difficult loads, thanks to the static POWER BOOST power reserve with up to 125% nominal current permanently
Preventive function monitoring indicates critical operating states before errors occur
Constant voltage: output voltage regenerated even at the end of long cables
Support conversion to various voltage levels
Electrical isolation: for setting up independent supply systems

Tech Specifications

Width	82 mm
Height	130 mm
Depth	125 mm
Width with alternative assembly	122 mm
Height with alternative assembly	130 mm
Depth with alternative assembly	85 mm
Degree of protection	IP20
Ambient temperature (operation)	-25 °C ... 70 °C (> 60 °C derating, 2.5 %/K, startup at -40°C type-tested)
Ambient temperature (start-up type tested)	-40 °C
Ambient temperature (storage/transport)	-40 °C ... 85 °C
Max. permissible relative humidity (operation)	= 95 % (at 25 °C, non-condensing)
Climatic class	3K3 (in acc. with EN 60721)
Degree of pollution	2
Nominal input voltage range	24 V DC
Input voltage range	18 V DC ... 32 V DC
Current Consumption	28 A (24 V, IBOOST)
Inrush surge current	< 26 A (typical)
Mains buffering	typ. 10 ms (24 V DC)
Choice of suitable circuit breakers	40 A ... 50 A (Characteristics B, C, D, K)
Type of protection	Transient surge protection
Protective circuit/component	Varistor
Nominal output voltage	24 V DC ±1 %
Setting range of the output voltage (U<sub>Set</sub>)	18 V DC ... 29.5 V DC (> 24 V DC, constant capacity restricted)
Nominal output current (I<sub>N</sub>)	20 A (-25 °C ... 60 °C)
POWER BOOST (I<sub>Boost</sub>)	25 A (-25°C ... 40°C permanent, UOUT = 24 V DC )
Selective Fuse Breaking (I<sub>SFB</sub>)	120 A (12 ms)
Derating	60 °C ... 70 °C (2.5%/K)
Connection in parallel	Yes, for redundancy and increased capacity
Connection in series	yes
Protection against surge voltage on the output	< 35 V DC
Max. capacitive load	Unlimited
Active current limitation	approx. 29 A
Control deviation	< 1 % (change in load, static 10 % ... 90 %)
Control deviation	< 2 % (change in load, dynamic 10 % ... 90 %)
Control deviation	< 0.1 % (change in input voltage ±10 %)
Residual ripple	< 20 mVPP
Peak switching voltages nominal load	< 10 mVPP (20 MHz)
Maximum power dissipation in no-load condition	2.2 W
Power loss nominal load max.	39 W
Net weight	1.7 kg
Efficiency	> 93 %
Insulation voltage input/output	1.5 kV (type test)
Insulation voltage input/output	1 kV (routine test)
Protection class	III
Degree of protection	IP20
MTBF (IEC 61709, SN 29500)	> 554000 h (40 °C)
Mounting position	horizontal DIN rail NS 35, EN 60715
Assembly instructions	alignable: PN =50%, 5 mm horizontally, 15 mm next to active components, 50 mm vertically alignable: PN <50%, 0 mm horizontally, 40 mm vertically top, 20 mm vertically bottom
Connection Method	Screw connection
Conductor cross section solid min.	0.5 mm²
Conductor cross section solid max.	16 mm²
Conductor cross section flexible min.	0.5 mm²
Conductor cross section flexible max.	16 mm²
Conductor cross section AWG min.	8
Conductor cross section AWG max.	6
Stripping length	10 mm
Screw thread	M3
Connection Method	Screw connection
Conductor cross section solid min.	0.2 mm²
Conductor cross section solid max.	6 mm²
Conductor cross section flexible min.	0.2 mm²
Conductor cross section flexible max.	4 mm²
Conductor cross section AWG min.	12
Conductor cross section AWG max.	10
Stripping length	8 mm
Screw thread	M3
Conductor cross section solid min.	0.2 mm²
Conductor cross section solid max.	2.5 mm²
Conductor cross section flexible min.	0.2 mm²
Conductor cross section flexible max.	2.5 mm²
Conductor cross section AWG min.	24
Conductor cross section AWG max.	12
Screw thread	M3
Electromagnetic compatibility	Conformance with EMC Directive 2014/30/EU
Noise immunity	EN 61000-6-2:2005
Connection in acc. with standard	CUL
Standards/regulations	EN 61000-4-2
Contact discharge	4 kV (Test Level 2)
Standards/regulations	EN 61000-4-3
Frequency range	80 MHz ... 1 GHz
Test field strength	10 V/m
Frequency range	1.4 GHz ... 2 GHz
Test field strength	3 V/m
Standards/regulations	EN 61000-4-4
Comments	Criterion B
Standards/regulations	EN 61000-6-3
Standards/regulations	EN 61000-4-6
Frequency range	0.15 MHz ... 80 MHz
Voltage	10 V (Test Level 3)
Standard - Electrical safety	EN 60950-1/VDE 0805 (SELV)
Standard – Safety extra-low voltage	EN 60950-1 (SELV)
Standard – Safety extra-low voltage	EN 60204 (PELV)
Standard - Safe isolation	DIN VDE 0100-410
Shipbuilding approval	DNV GL (EMC B)
UL approvals	UL/C-UL listed UL 508
UL approvals	UL/C-UL Recognized UL 60950-1
UL approvals	UL ANSI/ISA-12.12.01 Class I, Division 2, Groups A, B, C, D (Hazardous Location)
Shock	18 ms, 30g, in each space direction (according to IEC 60068-2-27)
Vibration (operation)	< 15 Hz, amplitude ±2.5 mm (according to IEC 60068-2-6)
Vibration (operation)	15 Hz ... 150 Hz, 2.3g, 90 min.
Rail applications	EN 50121-4
REACh SVHC	Lead 7439-92-1
China RoHS	Environmentally Friendly Use Period = 25;
China RoHS	For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration”
Inrush current	< 26 A (typical)
Mains buffering time	typ. 10 ms (24 V DC)
Output overvoltage protection	< 35 V DC
Standard ? Safety extra-low voltage	EN 60950-1 (SELV)
Standard ? Safety extra-low voltage	EN 60204 (PELV)
Extended input voltage range in operation	14 V DC ... 18 V DC (Derating)
EMC requirements for noise immunity	EN 61000-6-1
EMC requirements for noise immunity	EN 61000-6-2
EMC requirements for noise emission	EN 61000-6-4
Discharge in air	15 kV (Test Level 4)
Input	2 kV (Test Level 3 - asymmetrical)
Output	2 kV (Test Level 3 - asymmetrical)
Signal	2 kV (Test Level 4 - asymmetrical)
Surge voltage load (surge)	EN 61000-4-5
Input	1 kV (Test Level 2 - symmetrical)
Input	2 kV (Test Level 3 - asymmetrical)
Output	1 kV (Test Level 2 - symmetrical)
Output	2 kV (Test Level 3 - asymmetrical)
Signal	1 kV (Test Level 2 - asymmetrical)
I/O/S	asymmetrical
Criterion A	Normal operating behavior within the specified limits.
Criterion B	Temporary impairment to operational behavior that is corrected by the device itself.
Installation distance right/left	0 mm / 0 mm (= 70 °C)
Installation distance left/right (active)	15 mm / 15 mm (= 70 °C)
Installation distance top/bottom	50 mm / 50 mm (= 70 °C)
Installation distance top/bottom (active)	50 mm / 50 mm (= 70 °C)

Brand	Phoenix Contact
Series	QUINT
MPN	2320102

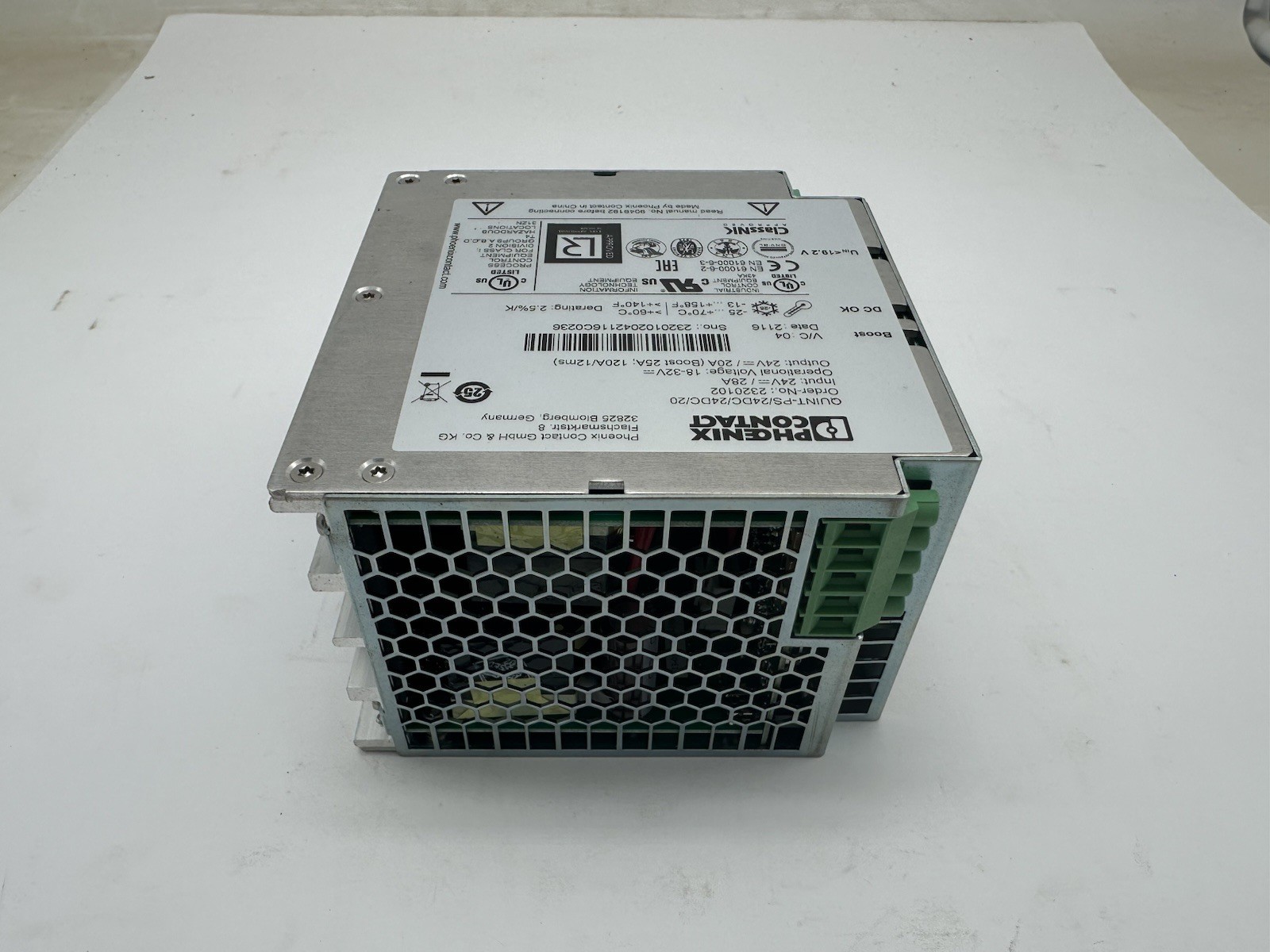

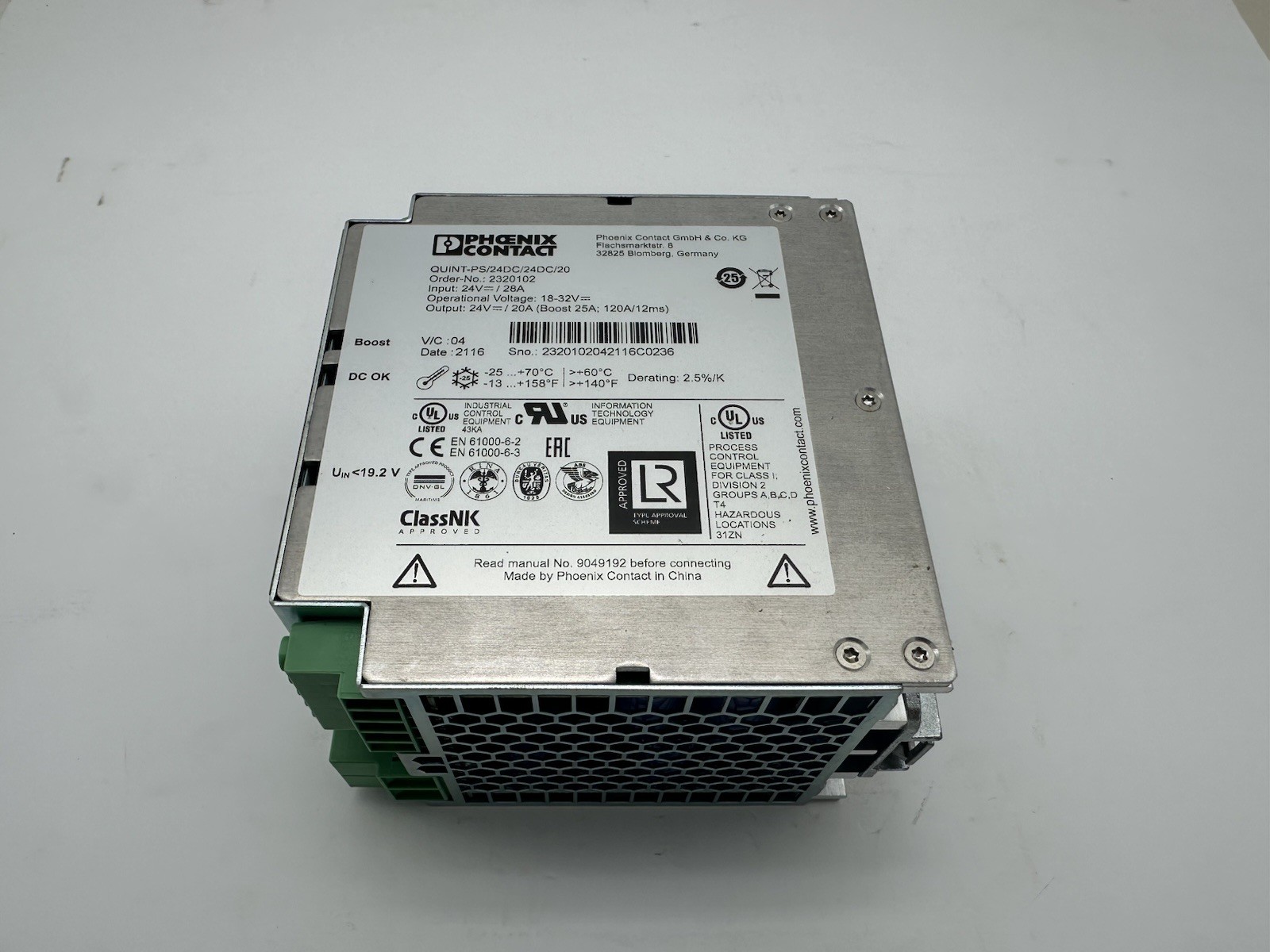

Phoenix Contact 2320102 Power Supply QUINT-PS/24DC/24DC/20
