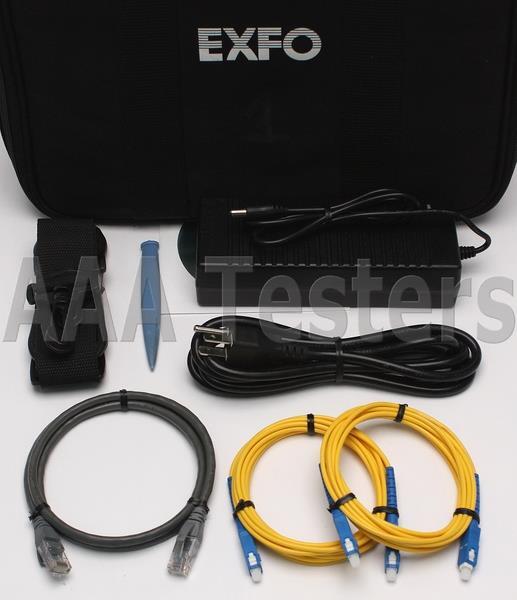

The Following Items Are Included:

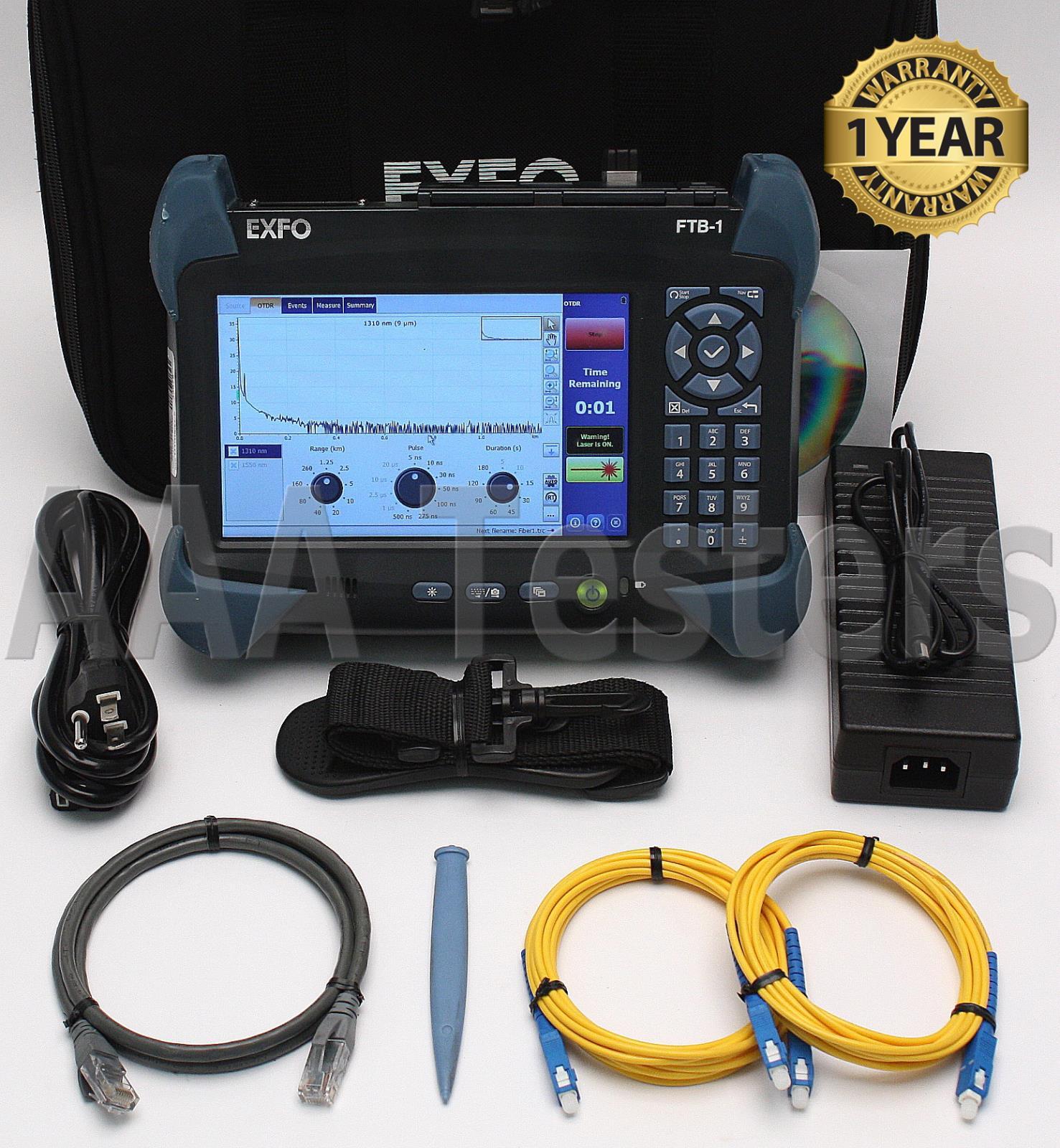

EXFO FTB-1-S1-8G Mini-OTDR Main Frame (BC# 33678-L/T*)
EXFO FTB-730-23B-EI SingleMode OTDR IOLM Module (BC# 33679-L/T*)
- IOLM
- SM OTDR Source:
  - 1310nm
  - 1550nm
- SC Connector For Source
Ethernet Cable
(2) SM SC-SC Fiber Cables
Stylus
AC Adapter/Charger
Power Cord
User Manual On CD-ROM
Carrying Case w/ Strap

BE SURE TO CHECK OUR EBAY STORE FOR OTHER ITEMS!

This Item Has A Current Calibration!

EXFO FTB-1 MINI-OTDR Main Frame
&
FTB-730 SingleMode 1310 / 1550nm OTDR IOLM Module

Dynamic Range:
1310 / 1550 nm : 39 / 37 dB

Includes Carrying Case & Accessories As Listed Above!

Working Condition: Excellent
Condition: Refurbished
Calibrated: Yes
Warranty: 1 YEAR WARRANTY

EXFO FTB-1
S1 - TFT active screen
8G - 8GB Internal Memory

KEY FEATURES

Flexible connectivity: USB, mobile, Wi-Fi and Bluetooth capabilities
Utilities: supports third-party applications and all the tools that enable technicians to complete their work right in the field
Test management/reporting: lets you take advantage of the EXFO Connect environment to monitor fi eld operations (local and remote)
PC-oriented: Intel ATOM processor with Windows Embedded Standard operating system, for optimized productivity and versatility
Power management: latest battery technology for unmatched operation autonomy

MAXIMUM CONNECTIVITY FOR MAXIMUM FIELD-TESTING EFFICIENCY

The result of EXFO’s time-proven expertise in portable platform design, the FTB-1 Platform is an open testing solution for network infrastructure construction and troubleshooting. The FTB-1’s built-in intelligence empowers frontline technicians to take field-testing efficiency to the next level.

Thanks to a highly “connected” set of tools—including Update Manager and compatibility with the EXFO Connect environment, which provides end-to-end operational visibility and centralized reporting capabilities throughout the entire test instrument pool—the FTB-1 delivers maximum return on your investment.

FEATURES

USB, mobile, Wi-Fi and Bluetooth connectivity capabilities
Supports third-party applications and all the tools that enable technicians to complete their work right in the field
Lets you take advantage of the EXFO Connect environment to manage fi eld testing/reporting operations as well as your platform pool
Intel ATOM processor with Windows Embedded Standard operating system, for optimized productivity and versatility
Latest battery technology for unmatched operation autonomy
One GigE port and two USB 2.0 ports
Windows Remote Assistance and Remote Control
EXFO fiber inspection probe connector interface

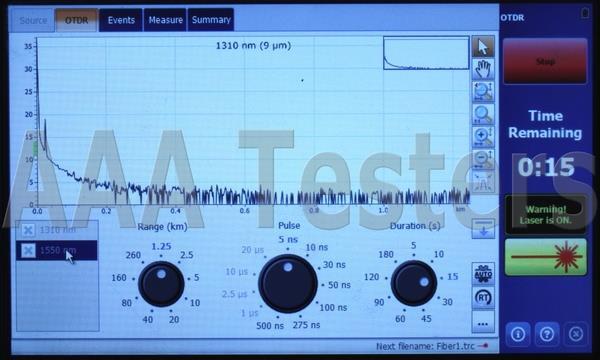

Display: TFT outdoor-enhanced LCD, 7-inch touchscreen
Telcordia-compliant

THIRD-PARTY TEST TOOLS

Wireshark
This live-network packet capture utility makes it possible to look “inside” the packets and obtain data such as transmission time, source, destination, protocol type, etc. Users can then diagnose a problem or root out suspicious behavior. Wireshark is a standard utility on all FTB-1 platforms.

JPerf
This TCP performance testing tool can create TCP and UDP data streams which measure the throughput of a network that is carrying them. Thanks to various user-definable parameters, technicians can rely on JPerf to optimize or tune a network under test.

Network Stumbler
Network Stumbler verifies wireless network configurations, enabling field techicians to identify areas that have poor coverage or wireless interference, and helping them to aim antennas for full effect and find unauthorized access points.

TECHNICAL SPECIFICATIONS

Display	Touchscreen, color, 800 x 480 TFT, 178 mm (7 in)
Interfaces	Two USB 2.0 ports RJ-45 LAN 10/100/1000 Mbit/s Fiber inspection probe connector port (video)
Storage	8 GB internal memory (flash)
Batteries	Rechargeable lithium-ion batteries 8 hours of operation as per Telcordia* (Bellcore) TR-NWT-001138
Power supply	AC/DC adapter, input 100-240 VAC, 50-60 Hz, 2 A max, output 24 VDC, 90 W
Computer	Intel ATOM processor Windows Embedded Standard operating system
GENERAL SPECIFICATIONS
Size (H x W x D)	190 mm x 252 mm x 66 mm (7 1/2 in x 9 15/16 in x 2 5/8 in)
Weight (with battery)	1.5 kg (3.3 lb)
Temperature	Operating 0 °C to 50 °C (32 °F to 122 °F) Storage –40 °C to 70 °C (–40 °F to 158 °F)(Without Battery)
Relative humidity	0 % to 95 % non-condensing

Specifications:

Wavelength (nm)	1310 ± 20/1550 ± 20/1650 ± 7
Dynamic range at 20 μs (dB)	39/37/37
Event dead zone (m)	0.8
Attenuation dead zone (m)	4/4.5/4.5
Distance range (km)	1.25, 2.5, 5, 10, 20, 40, 80, 160, 260, 400
Pulse width (ns)	5, 10, 30, 50, 100, 275, 500, 1000, 2500, 10 000, 20 000
Linearity (dB/dB)	±0.03
PON dead zone (m)	35
Loss threshold (dB)	0.01
Loss resolution (dB)	0.001
Sampling resolution (m)	0.04 to 5
Sampling points	Up to 256 000
Distance uncertainty (m)	±(0.75 + 0.0025 % x distance + resolution)
Measurement time	User-defined (60 min. maximum)
Typical real-time refresh (Hz)	4
Stable source output power (dBm)	–2.5
Reflectance (dB)	±2
GENERAL SPECIFICATIONS
Size (H x W x D)	130 mm x 36 mm x 252 mm (5 1/8 in x 1 7/16 in x 9 15/16 in)
Weight	0.65 kg (1.4 lb)
Temperature Operating Storage	0 °C to 50 °C (32 °F to 122 °F) –40 °C to 70 °C (–40 °F to 158 °F)
Relative humidity	0% to 95% non-condensing

For full EXFO FTB-1 FTB-730 product specifications, please click here: EXFO FTB-1 FTB-730
