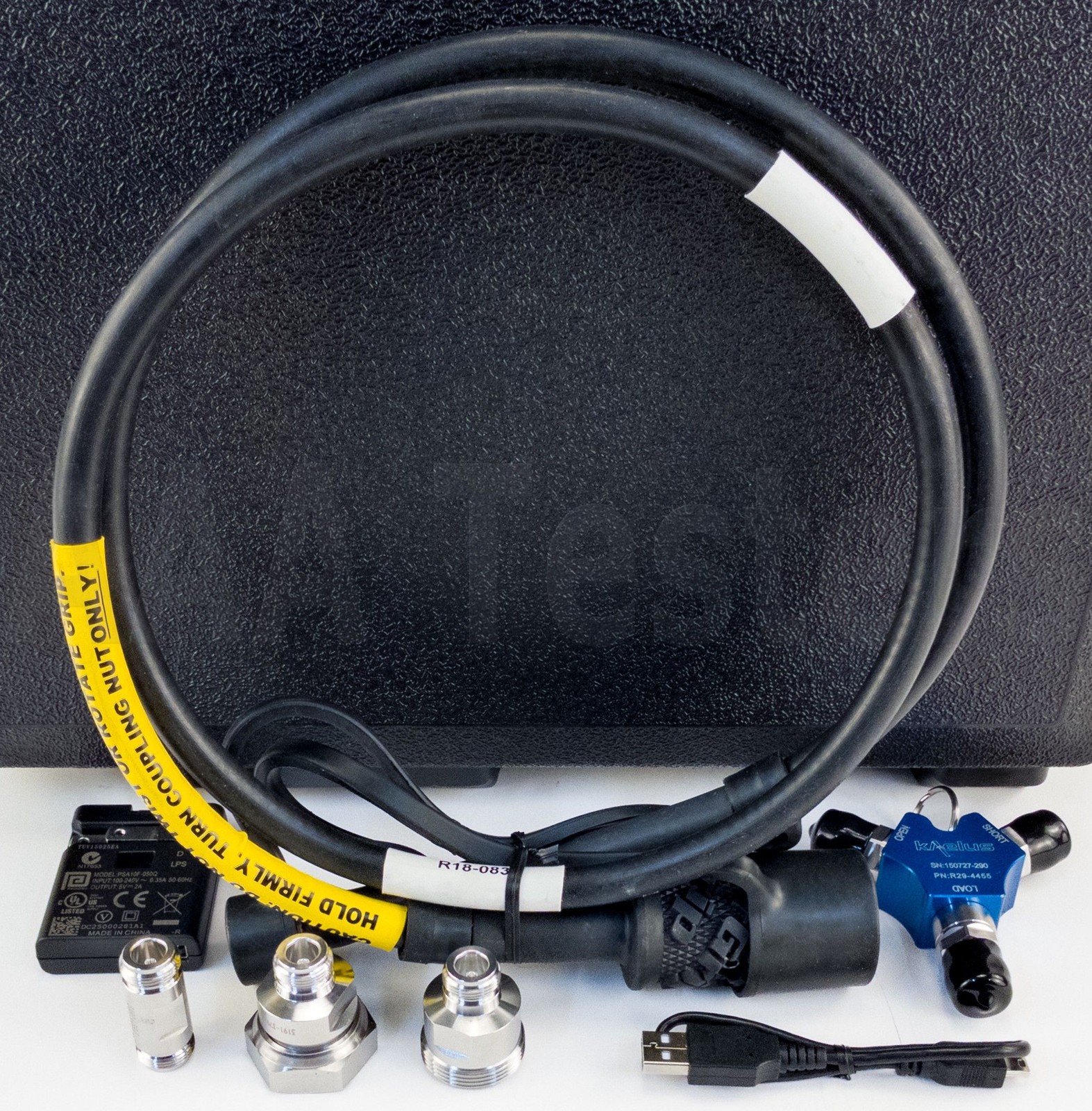

The Following Items Are Included:

Kaelus IVA-0627A Cable and Antenna Analyzer (BC# 19820M-L/T*)
Phase Cable
Din Kit
Kaelus R29-4455 O/S/L
USB PC Interface Cable
AC Adapter/Charger
Hard Carrying Case (G)

BE SURE TO CHECK OUR EBAY STORE FOR OTHER ITEMS!

This Item Has A Current Calibration!

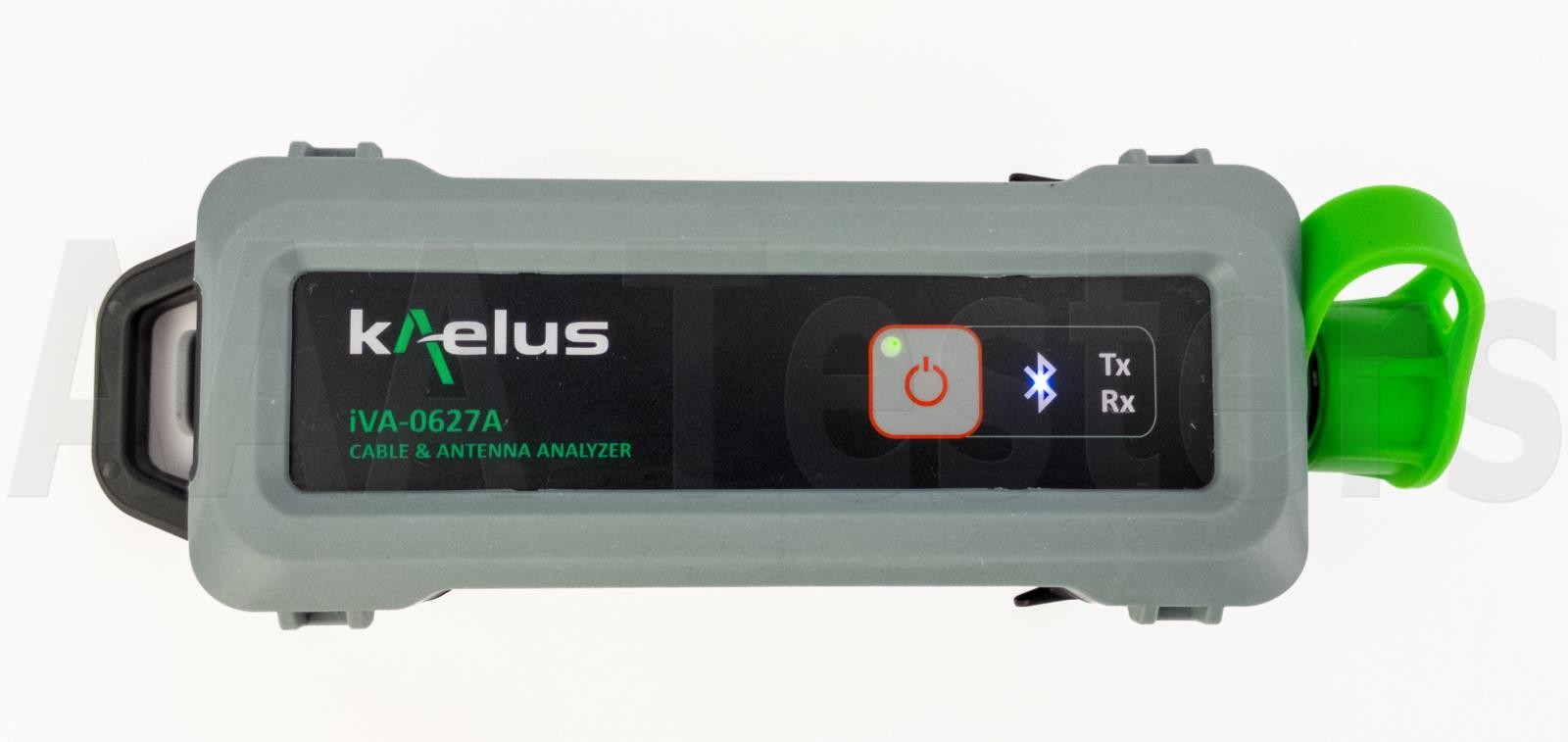

Kaelus IVA-0627A Cable and Antenna Analyzer

The iVA is a rugged battery operated module that can be remotely controlled with any Bluetooth enabled tablet, smart phone, laptop computer or any of our iPA Series Portable Passive Intermodulation analyzers.

Includes Accessories As Listed Above!

Working Condition: Excellent
Condition: Refurbished
Calibrated: Yes
Warranty: 1 YEAR WARRANTY

Kaelus IVA-0627A Cable and Antenna Analyzer

The iVA Series Cable and Antenna Analyzer is an exciting product from Kaelus that enables users to accurately measure VSWR / return loss and the location of the VSWR / return loss faults in their RF infrastructure. The wireless connectivity allows unprecedented measurement flexibility and opens up new possibilities in sweep testing and multi-port testing.

The iVA is a rugged battery operated module that can be remotely controlled with any Bluetooth enabled tablet, smart phone, laptop computer or any of our iPA Series Portable Passive Intermodulation analyzers.

FEATURES

Modernizing site certification sweep testing and dramatically reducing test time on site
Accurately measure swept VSWR / return loss and Distance-to-Fault in RF path
Directly Measure Return Loss, insertion loss and isolation when using multiple iVA’s
Simple to operate, highly intuitive software user interface with the unique ability to generate and complete the test report on-site
Bluetooth connection to a tablet or laptop computer. Wireless connection is safer and convenient
Connect directly to the device under test; eliminates the need for a phase stable cable in most cases
Geotag each test point, insert a Google Maps® snapshot directly into the report
Uses the Kaelus customer-proven reporting workflow and tagging features to facilitate a faster, simpler and more efficient test and reporting process
Use the Spectrum Monitor Mode for interference checking

Specifications:

SYSTEM
iVA Analysis Modes	Return Loss, VSWR, Cable Loss, Distance-to-Fault (DTF), Transmission Loss1, Isolation 1, Spectrum Monitor
Frequency Range	600 - 2750 MHz All Modes
Minimum Frequency Increment	1 kHz All Modes
Number of Measurement Points	2 to 2151
ELECTRICAL
RF Output Power	0 dBm ±3 dB
User Interface	Tablet Computer (iOS & Android) Recommended Samsung Tab 4 8″ or Tab A 8″ iPA Portable PIM Analyzer PC, Windows 7 & 8 Running .NET Version 4 or Later

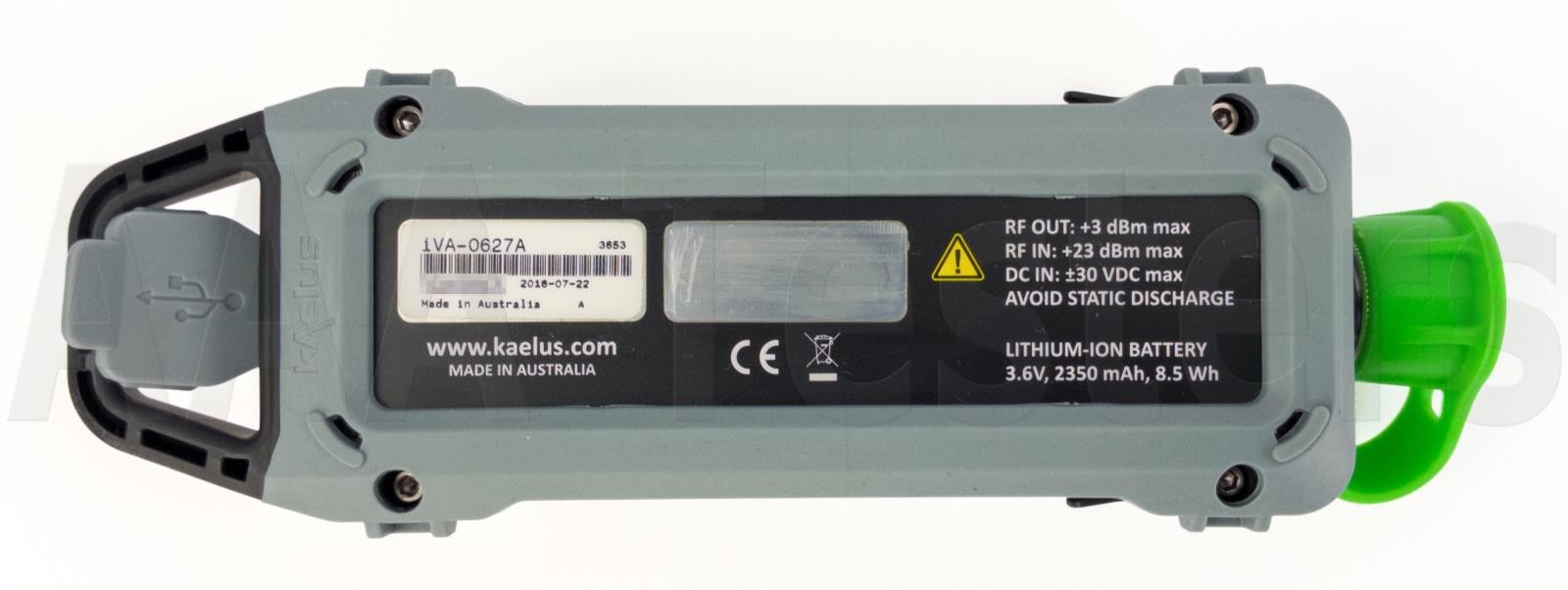

Battery	Lithium-Ion 3.6 V, 2350 mAh, 8.5 Wh
Battery Operating Time	8 Hours at Typical Usage Factor
MECHANICAL
Dimensions H x D x W	2.06″ x 2.73″ x 8.51″ (52 x 69.5 x 216 mm)
Weight	1.5 lbs (680 g)
USB Connector	USB 2.0 Mini-B (Charging and Connection to iPA or PC)

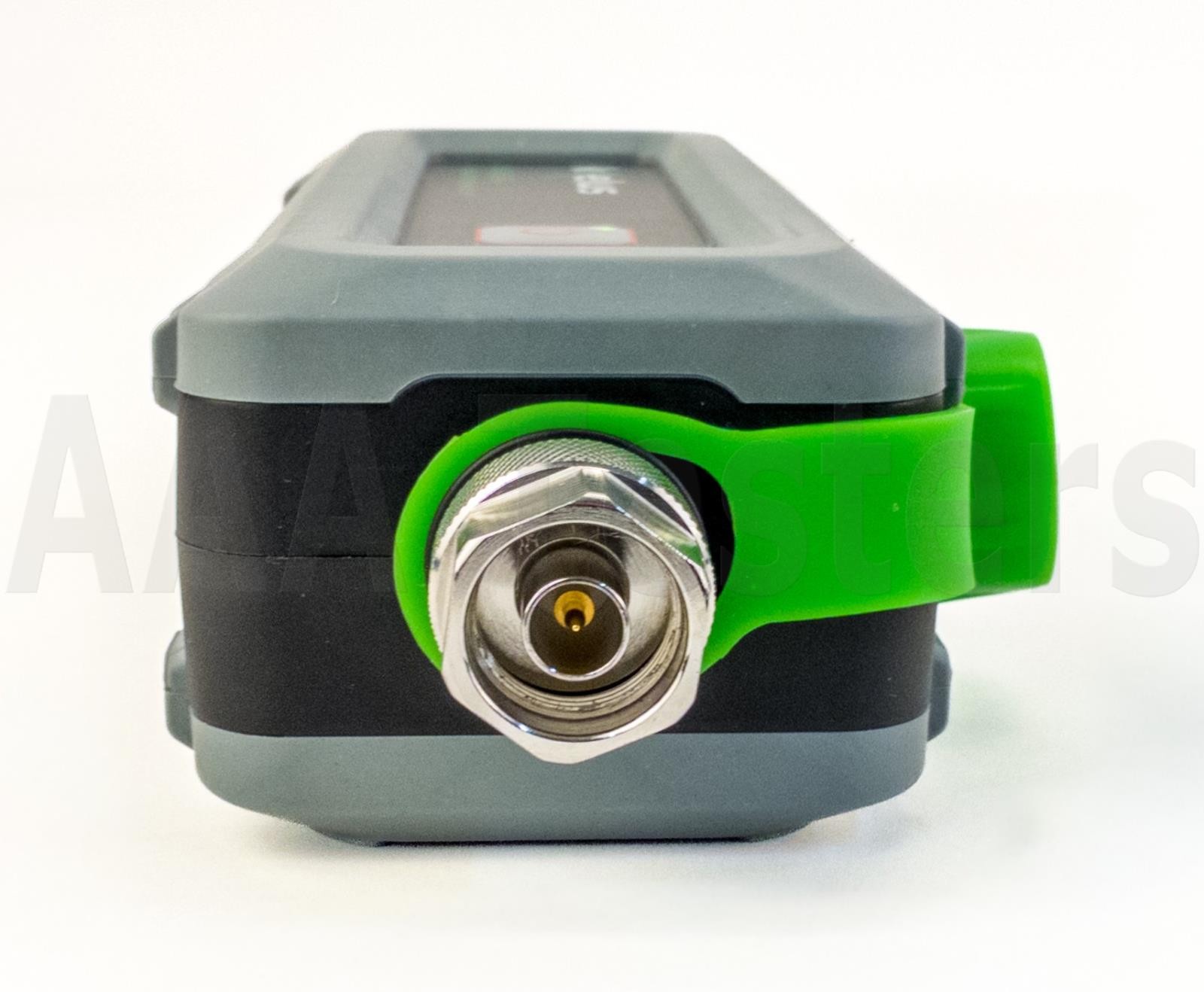

RF Test Port Connector	Type N Male, 50Ω
Operating Temperature Range	-10°C to +55°C
Storage Temperature Range	-20°C to +60°C
Ingress Protection (IP)	IP54
