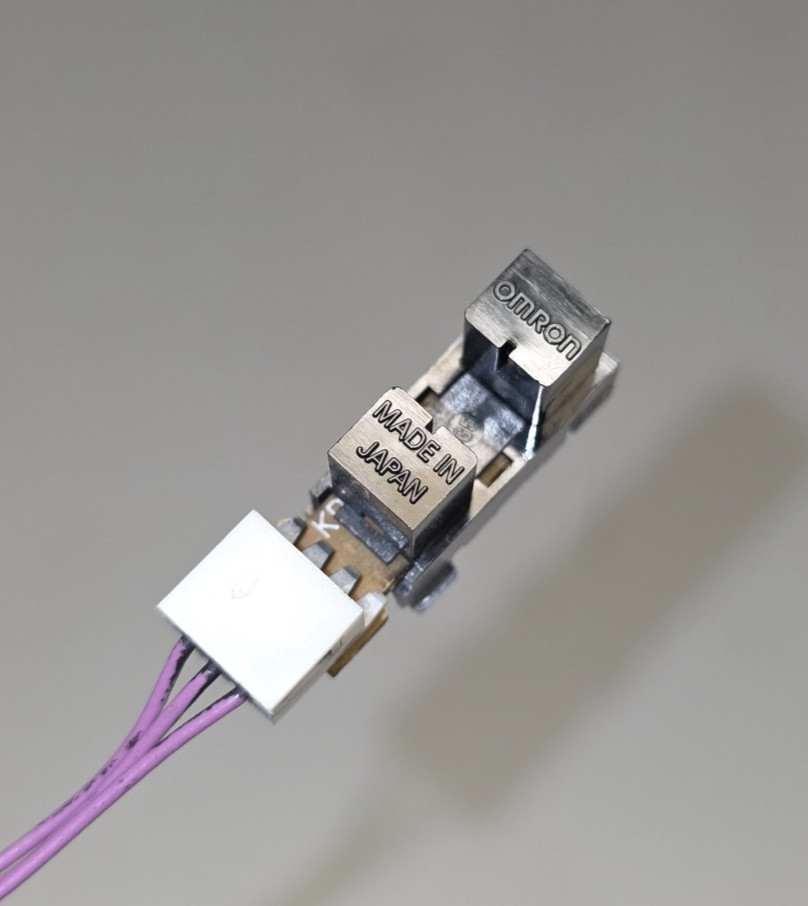

Xerox M&T Stepper Motor SP-42RD-200L & 2x Omron 1235A P2 Optical Sensors
USD
$38.00
Seller:
elhoh.mjxodzpxg
100.0% positive
(153 reviews)
El Paso, US
Only 2 left
US
Request Quote
View on eBay
As an eBay Partner Network Affiliate, I earn from qualifying purchases.
Secure Transaction
Fast Response
Quality Guarantee
Specifications
| Actual Rated Input Voltage | ~24V DC |
|---|---|
| Base RPM | Variable |
| MPN | SP-42RD-200L / 1235A P2 |
| Insulation Class | Class E or B |
| Suitable For | Xerox WorkCentre / Robotics / 3D Printers |
| Holding Torque | Approx. 15-20 mN·m |
| Current Type | DC |
| Features | Includes Wiring Harness, 10.4 ohm Resistance, Brass Gear |
| Wiring Configuration | 4-Wire Bipolar (Integrated into a multi-pin harness) |
| Full Step Angle | 7.5° (48 Steps) |
| Full Load Amps | ~0.5A - 1.0A |
| Maximum Amperage | Signal Level (Sensors) / Low Voltage (Motor) |
| Number of Positions | N/A (Continuous Stepper) |
| Rated Current per Phase | ~400mA - 600mA |
| Color | Silver (Motor) / Black (Sensors) |
| Shaft Type | Geared Shaft |
| Shaft Diameter | 3mm (Internal shaft diameter under the gear) |
| Material | Metal (Motor Housing), Plastic (Sensors/Harness) |
| Brand | M&T (Motor) / Omron (Sensors) |
| Operation Method | Stepper / Optical Sensing |
| Type | Stepper Motor & Optical Photo-Interrupter Sensor Lot |
| Contact Configuration | Optical (Non-Contact) |
| IP Rating | IP40 |
| Nominal Rated Input Voltage | 12 V, 24 V |
| Model | M&T SP-42RD / Omron 1235A |
| Resistance per Phase | 10.4 ohms |
| Country | Japan (Sensors) / Thailand (Motor) |
