The Following Items Are Included:

EXFO FTB-2 Pro Mainframe (BC# -L/T*)

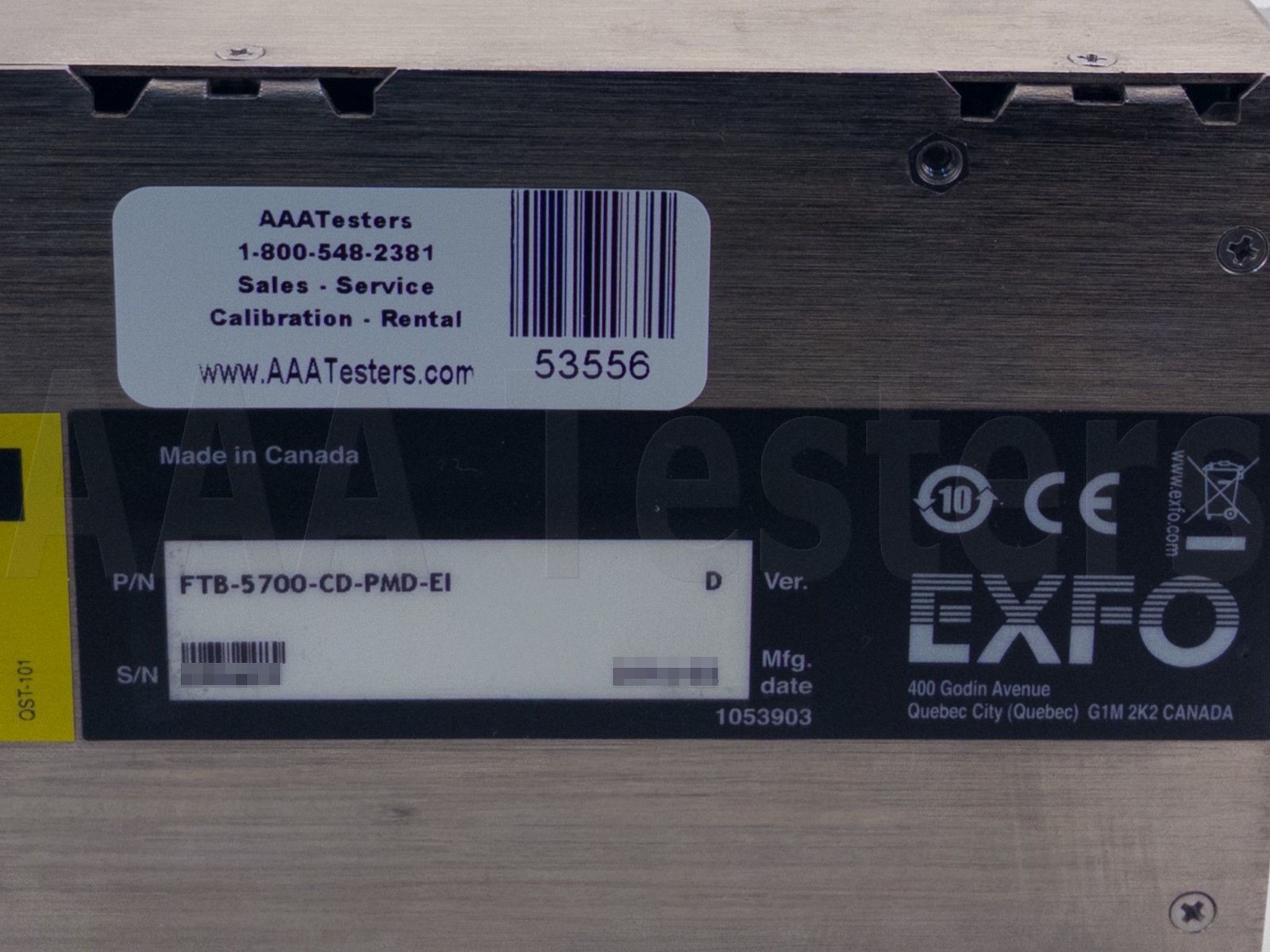

EXFO FTB-5700-CD-PMD PMD Analyzer Module w/ (BC# -L/T*)
- Installed Options:
  - CD: CD Analyzer
  - PMD: PMD Analyzer
AC Adapter/Charger
Power Cord
RS232 PC Interface Cable
Carrying Case

BE SURE TO CHECK OUR EBAY STORE FOR OTHER ITEMS!

This Item Has A Current Calibration!

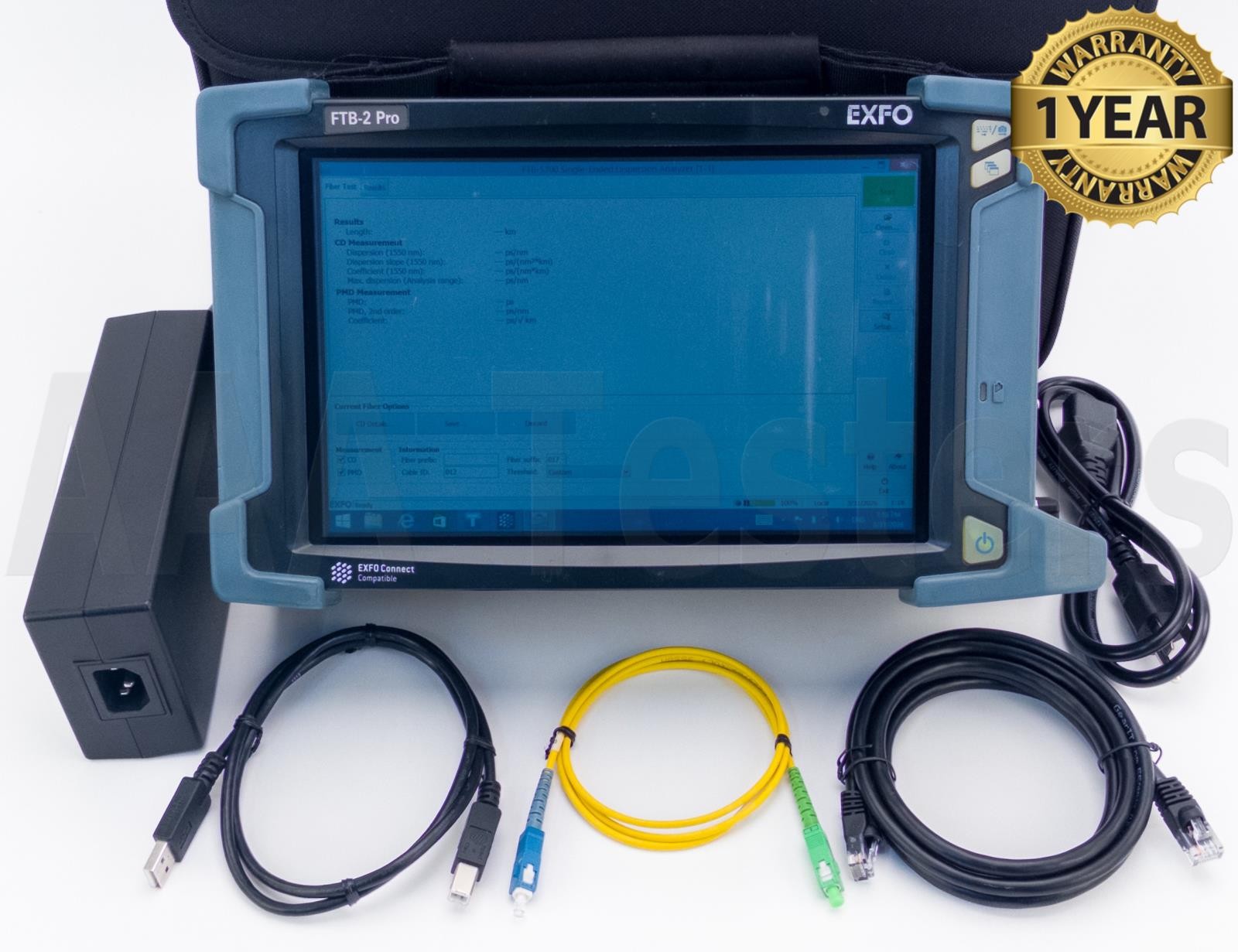

EXFO FTB-2 Pro Universal Test System with

EXFO FTB-5700-CD-PMD PMD Analyzer Module

Installed Options:
- CD: CD Analyzer
- PMD: PMD Analyzer

Includes Carrying Case & Accessories As Listed Above!

Working Condition: Excellent
Condition: Refurbished
Calibrated: Yes
Warranty: 1 YEAR WARRANTY

EXFO FTB-2 Pro Platform

OPTICAL PLUG-AND-PLAY OPTIONS

The platform features optical plug-and-play options that can be purchased whenever you need them: at the time of your order or later on. In either case, installation is a snap and can be performed by the user without the need for any software update.

Optical Power Meter

A high-level power meter (GeX) that can measure up to 27 dBm, the highest in the industry. This is essential for hybrid fiber-coaxial (HFC) networks or high-power signals. If used with an auto-lambda/auto-switching compatible light source, the power meter automatically syncs on the same wavelength, thus avoiding any risk of mismatched measurement.

Extensive range of connectors
Auto-lambda and auto-switching
Offers measurement storage and reporting
Choice of seven standard or coarse wavelength-division multiplexing (CWDM)-calibrated wavelengths

Visual Fault Locator (VFL)

The plug-and-play VFL easily identifies breaks, bends, faulty connectors and splices, in addition to other causes of signal loss. This basic, yet essential, troubleshooting tool should be part of every field technician's toolbox. The VFL visually locates and detects faults over distances of up to 5 km by creating a bright-red glow at the exact location of the fault on singlemode or multimode fibers (available with the Optical Power Meter only).

Specifications:

Display	Touchscreen, color, 1280 × 800 TFT 256 mm (10.1 in)
Interfaces	RJ45 LAN 10/100/1000 Mbit/s Two USB 2.0 ports One USB 3.0 port Display port Headset jack
Storage (internal flash memory)	128 GB
Battery	Two rechargeable Li-ion smart batteries
Power Supply	AC/DC adapter, input: 100 – 240 V; 50/60 Hz; 4.0 A max, output: 24 V; 8.33 A
Computer	Quad-core processor / 4 GB RAM / Windows 10
GENERAL SPECIFICATIONS
Size (H × W × D)	199 mm × 333 mm × 119 mm (7 13/16 in × 13 1/8 in × 4 11/16 in)
Weight	3 kg (6.6 lb)
Temperature	Operating: 0 °C to 50 °C (32 °F to 122 °F) Storage: –40 °C to 60 °C (–40 °F to 140 °F)
Relative humidity	≤95 % non-condensing

EXFO FTB-5700-CD-PMD Dispersion Module

The Only Combined CD and PMD Test Module on the Market
Building on EXFO’s market-proven dispersion testing expertise, the FTB-5700 Single-Ended Dispersion Analyzer combines chromatic dispersion and polarization mode dispersion measurement into a single, highly automated, high-efficiency test solution. It offers the true advantage of one—one-ended testing using one module, one connector and a one-step test setup and delivering one combined results file—dramatically reducing the cost of ownership and speeding up the learning curve, the test cycles as well as the reporting.

Housed in either of EXFO’s multimodular portable platforms, the FTB-200 Compact Platform and the FTB-400 Universal Test System, the FTB-5700 delivers straightforward, yet advanced CD and PMD characterization in a single affordable instrument optimized for both entrylevel and seasoned technicians.

Characterize CD in a Snap
The ongoing race to develop high-speed transmission systems and to increase available bandwidth is facing certain limitations. Chromatic dispersion (CD) measurements are becoming more and more critical for carriers and service providers looking to upgrade their systems to faster transmission rates, such as 10 Gbit/s (OC-192/STM-64), and longer routes, thanks to the advent of reconfigurable optical add/drop multiplexers (ROADMs).

What’s more, since the eight test points are configurable, the FTB-5700 never “loses” test points due to high attenuation. Whatever the link, test parameters are automatically optimized.

The Only Single-Ended PMD Analyzer on the Market
PMD is a real threat to both legacy and newly deployed networks. And as high-speed services—namely 10 Gbit/s—are being massively deployed, PMD awareness continues to grow. Whether you need to assess the PMD level of legacy fiber or perform network maintenance, EXFO’s FTB-5700 PMD Analyzer FTB-5700 is fast, reliable and ready to go.

PMD is an average of delay values over a given wavelength range and state of polarization. The FTB-5700 being tunable, over 200 wavelength pairs are acquired, all at different states of polarization. Each pair provides a delay point.

For even higher accuracy, you can launch multiple scans and perform an averaging of all test results.

A Highly Intuitive User Interface with No Setup Required
Featuring easy-to-read pass/fail results and providing a view of all key parameters and values on one screen, the FTB-5700’s user interface is all about field testing simplicity and efficiency.

Features:

Single-ended PMD and CD measurements
The advantage of one: complete dispersion analysis with a single module, a single connector and a one-step test setup
Unparalleled software user-friendliness: all automated
Testing range: up to 120km

Specifications:

Measured wavelength range (nm)	1475 to 1626
Maximum measurement distance (km)	>120
Distance uncertainty (km)	± (0.01 + 1 % x distance)
Chromatic dispersion
Number of test points	8
CD uncertainty (ps/nm)	±12
Test time (s)	40
PMD
PMD range (ps)	0.5 to 15
Test time (s)	180
General Specifications
Temperature	Operating: 0 °C to 50 °C (32 °F to 122 °F) Storage: -40 °C to 70 °C (-40 °F to 158 °F)
Relative humidity	0 % to 93 % non-condensing
Size (H x W x D)	96 mm x 50 mm x 281 mm (3 3/4 in x 2 in x 11 in)
Weight	1.3 kg (2.8 lb)
