### Premium, Plug-and-Play Industrial Motion Assembly

**Featuring:** Lenze MCS Servo Motor + Northrop Grumman Position Mount + Pre-Wired Turck Sensor

This is a high-value, turn-key industrial motion positioning stop and track drive assembly. Avoid the significant engineering lead times and labor costs of sourcing, fabricating, and wiring individual components. This premium factory-integrated asset is ready for immediate drop-in replacement or system integration.

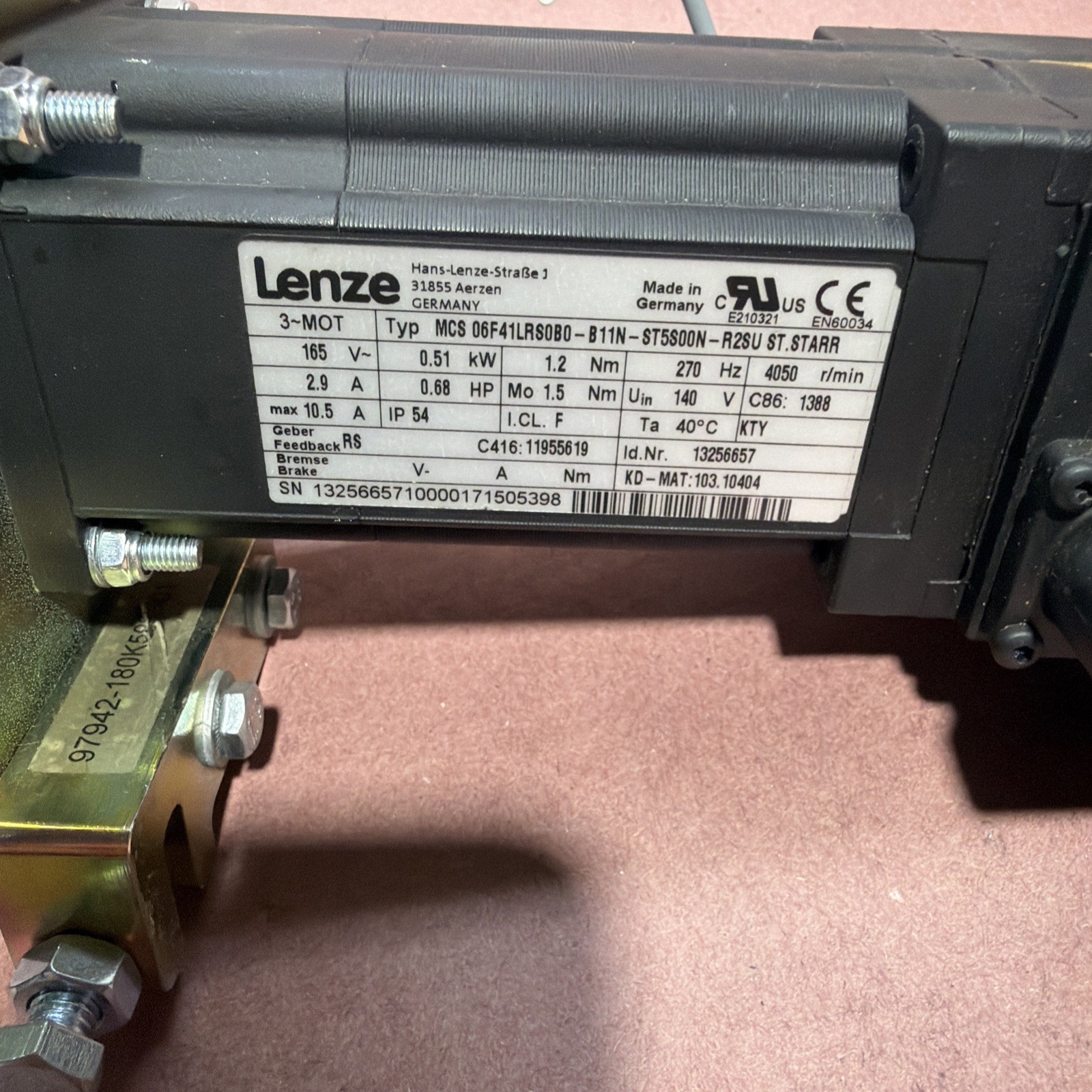

#### 1. Actuator Component (Lenze Synchronous AC Servo Motor)

* **Brand:** Lenze Americas

* **Model/Type:** MCS 06F41LR6080-811N-ST5S00N-R28U ST.STARR

* **Power Rating:** 0.51 kW / 0.68 HP

* **Rated Speed:** 4050 RPM

* **Continuous Torque:** 1.2 Nm (Mo 1.5 Nm Stall Torque)

* **Electrical Ratings:** 165 V~, 2.9 A, 270 Hz (Max Current: 10.5 A)

* **Enclosure Protection:** IP54

* **Feedback System:** High-precision integrated resolver

#### 2. Heavy-Duty Mechanical Tracking Hardware (Northrop Grumman)

* **Bracket Body Part No:** 97942-180K589G01

* **Cam / Roller Assembly Label:**97942-143K327H01

* **Coating:** Premium yellow zinc-dichromate (gold-chromate) finish for maximum industrial corrosion resistance.

* **Mechanics:** Equipped with heavy-duty roller bearings and an integrated track adjustment channel for flawless alignment under high dynamic torque loads.

#### 3. Integrated Logic & Connectivity (Turck Industrial Cable & Sensor)

* **Brand:** Turck Control Components

* **Application:** Fully integrated proximity/limit sensing built directly into the bracket tracking mechanism.

* **Value-Add:** Pre-wired and ruggedized to feed precise home-checkpoint or end-of-travel feedback loop signals directly back to your PLC controller or drive inverter.

Lenze MCS06F41 Servo Motor w/ Northrop Grumman Bracket & Turck Sensor Assembly

Specifications
