Note: This unit is only compatible with the HDMI 1.0 protocol. It only accepts HDMI input that has HDCP removed.

The Panasonic PT-EW630U LCD projector delivers bright, detailed WXGA resolution at up to 5500 lumens, making it a logical choice for classrooms, lecture halls, or business settings where lighting conditions can vary throughout the day. Its Dynamic Iris technology adapts in real-time to optimize contrast, offering a 5000:1 ratio that keeps images sharp and clear when displaying text-heavy slides or detailed visual content. Features like powered zoom and lens shift, a centered lens design, and flexible 360-degree installation give you plenty of freedom in mounting and setup, making it easy to tailor the projector’s performance to the environment and application.

Long-term reliability is built into the PT-EW630U, with a durable optical engine and inorganic LCD panels that extend maintenance intervals to as much as 10,000 hours. The washable Eco Filter and a lamp rated for up to 4,000 hours help reduce downtime and overall cost of ownership. Designed with real-world use in mind, it includes thoughtful additions like built-in audio, corner keystone correction, and even a closed caption decoder, keeping everyone involved and interested.

This is a Used item. It may have cosmetic flaws but is guaranteed to be in proper working order. Please contact your Sales Pro for more information on this and other products.

Note: This unit is only compatible with the HDMI 1.0 protocol. It only accepts HDMI input that has HDCP removed.

Panasonic PT-EW630U1-USED3 Features

Dynamic Iris achieves a superb contrast ratio of 5,000:1
Daylight View Basic technology ensures easy-to-see, clear images even in brightly lit rooms
Lamp replacement cycle of up to 4,000 hours
Dust-resistant cabinet with one-way air flow design
Eco Management function included to reduce power consumption
Flexible vertical 360 degree installation, lens-centered design, powered horizontal/vertical-lens shift, powered zoom/focus and a wide range of optional lenses
Side-by-Side and P-in-P functions
Built-in 10 W speaker
Closed caption decoder built-in for the US market
Corner Keystone corrects trapezoidal distortion

Panasonic PT-EW630U1-USED3 Specifications

White Brightness: 5,500 Lumens (ANSI)1
Resolution: 1280x800
Aspect Ratio: 16:10 (WXGA)
Contrast: 5,000:1 (full on/off)
Dynamic Iris: Yes
Display Type: 0.75" 3LCD
Color Processing: 8-bit
Video Modes: 720p, 1080i, 1080p/60, 1080p/24, 1080p/25, 1080p/30, 1080p/50, 1035i, 525i, 525p, 576i, 576p, 625i, 625p, 1125i, 480p, 480i
Data Modes: MAX 1280x80
Lamp Type: 330W UHM bulb
Lamp Life: 3,000 hours / 4,000 hours (Eco)
Lamp Model: ET-LAE200 Buy Replacement Lamp
Optional Lenses
- ET-ELT20 Zoom Lens Throw Ratio 2.80:1-4.60:1
- ET-ELT21 Zoom Lens Throw Ratio 4.60:1-7.20:1
- ET-ELW20 Zoom Lens Throw Ratio 1.30:1-1.70:1
- ET-ELW21 Fixed Lens Throw Ratio 0.80:1
- Lens Shift: Horizontal +/-10% & Vertical +/-60%
Throw Distance : 7.9' - 48.0' Calculate Throw Distance
Image Size: 39.93" - 399.56"
Throw Ratio: 1.70:1 - 2.80:1 (D:W)
Digital Keystone: Horizontal & Vertical
Projector Size: 6.46" x 19.27" x 17.12" (HxWxD)
Weight: 23.2 lbs
Audible Noise: 35 dB / 31 dB (Eco)
Internal Speakers: No
Power: 490 Watts 100V - 240V

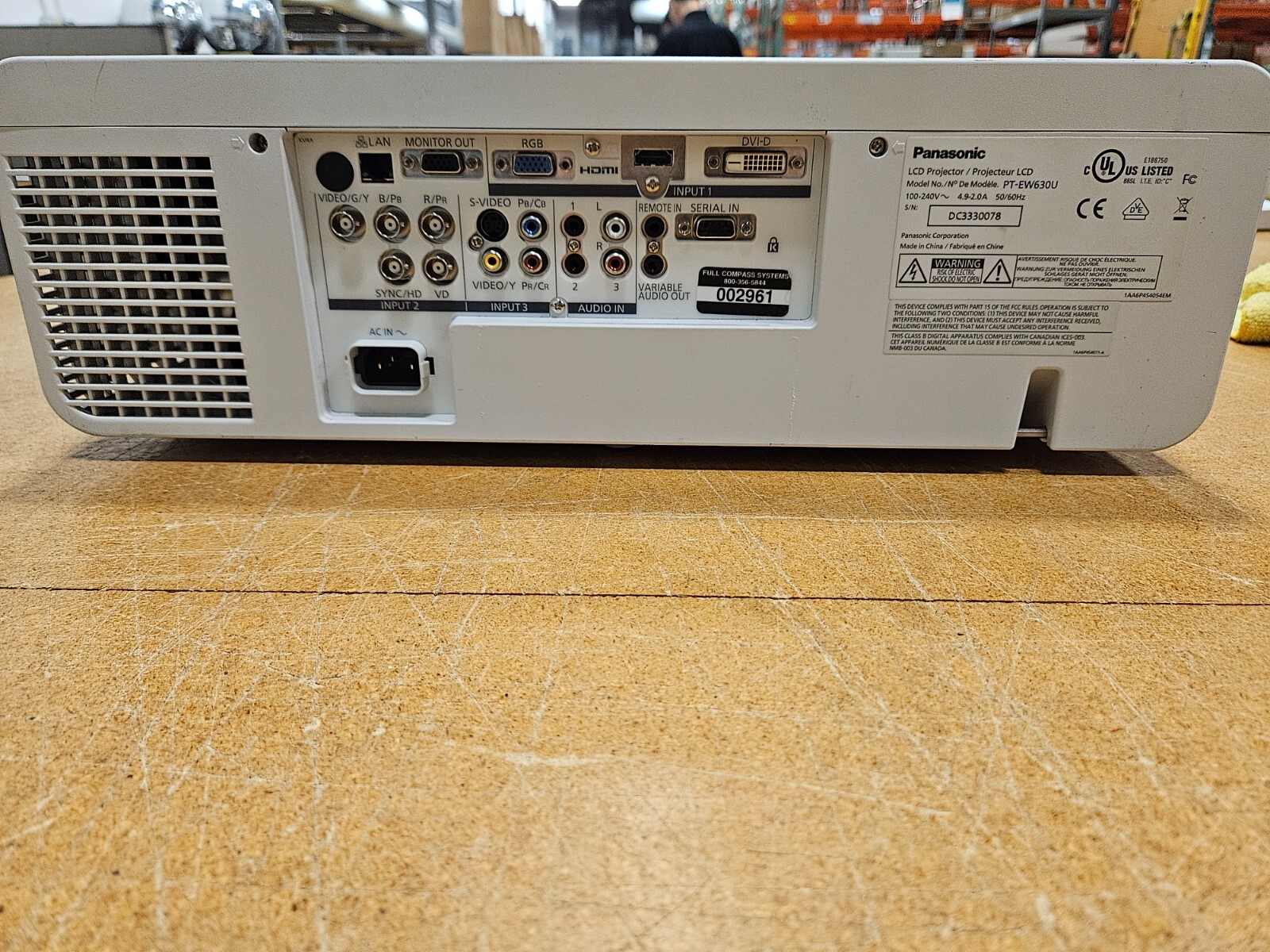

Connection Panel
- Composite: RCA
- DVI Digital Input
- HDMI
- Network: RJ-45
- RGB In: BNC
- RS232: DB-9pin
- S-Video
- VGA In: Dsub-15pin

Brand	Panasonic
Type	Projectors, Video-Data
Model	PT-EW630U
MPN	PT-EW630U

Panasonic PT-EW630U Projector, No Lens, Includes Remote and Power Cord [USED]
