The Agilent/HP 37717C OmniBER 717C is a modular communications performance analyzer for PDH/DSn and SONET/SDH networks; with Options 110, 120, 131 and A3D installed it supports DS1/DS3/E1/E3 electrical interfaces, STS‑3/STM‑1 electrical SONET/SDH testing, 1310 nm STM optical interfaces, and remote/parallel/GPIB control.

Quick option table

Option	Primary capability	What it enables (practical)
110	DS1/DS3 and E1/E3 structured PDH/DSn interfaces	Allows transmit/receive and BER/jitter testing on DS1, DS3, E1, E3 electrical circuits.
120	STS‑3 / STM‑1 electrical SONET/SDH interfaces	Enables STS‑3/STM‑1 electrical line testing, framing, and SONET/SDH performance measurements.
131	STM‑0/STM‑1/STM‑4 optical interface (1310 nm)	Provides 1310 nm optical transmit/receive for STM‑0/1/4 testing (optical BER, loss, and overhead).
A3D	Remote control / printer / parallel + GPIB/RS‑232 interfaces	Adds remote control (HPIB/GPIB), RS‑232, parallel/printer and related I/O for automation and data capture.

Technical description (what the instrument is)

The HP/Agilent 37717C OmniBER 717C is a rack‑mount, multi‑rate communications performance analyzer designed for installation, maintenance and manufacturing test of hybrid PDH/DSn and SONET/SDH networks up to OC‑12/STM‑4 rates when fitted with appropriate modules. It is a modular mainframe: you populate it with interface and feature options (electrical, optical, jitter, ATM, remote I/O) to match the network technologies you must test.

What each installed option does (expanded)

Option 110 (DSn/PDH electrical interfaces): Implements structured PDH transmit/receive for DS1/DS3 and E1/E3 rates, including framing, payload mapping and BER/jitter measurements on those copper interfaces—used for legacy PDH network validation and BER acceptance tests.
Option 120 (STS‑3/STM‑1 electrical): Adds SONET/SDH electrical line interfaces so the unit can generate/analyze STS‑3/STM‑1 signals, measure overhead, alarms, and perform SONET/SDH BER/jitter tests without optical transceivers.
Option 131 (1310 nm optical STM interfaces): Provides 1310 nm optical transceiver interfaces for STM‑0/1/4 testing (optical BER, power, and overhead). This lets you test fiber links and optical line cards at the specified wavelength.
Option A3D (remote/printer I/O): Enables remote control (GPIB/HPIB), RS‑232 and parallel/printer interfaces and related firmware support so the instrument can be automated, integrated into production test rigs, or controlled from scripts. Firmware updates historically enabled full A3D functionality.

Brand	Agilent
MPN	37717C
Country of Origin	United States

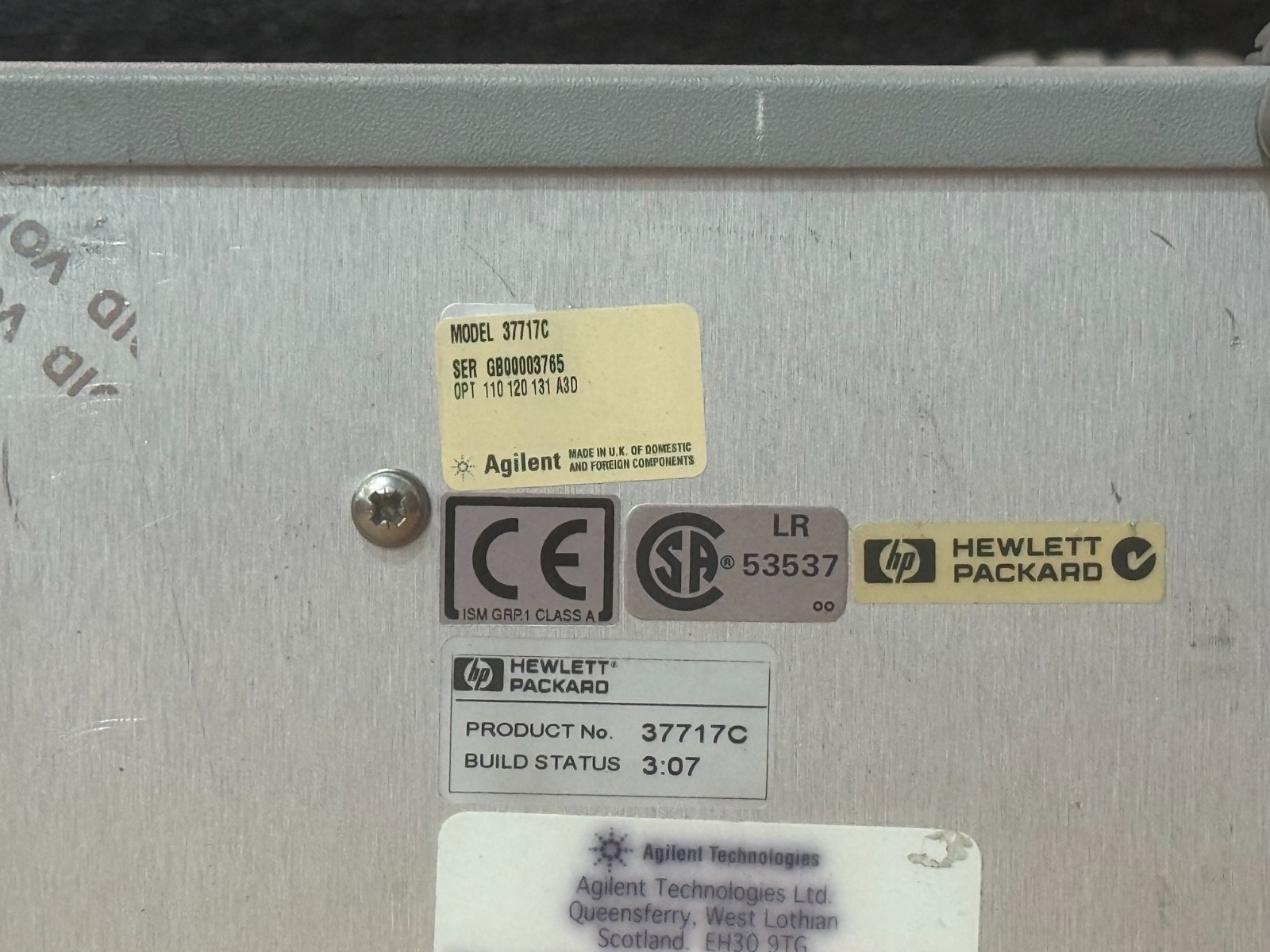

Agilent HP 37717C OmniBER 717C w/ Options 110 120 131 A3D
