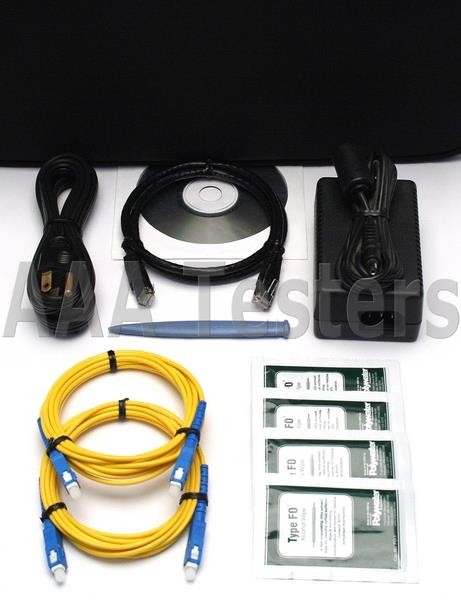

The Following Items Are Included:

EXFO FTB-200-V2-S1 Mainframe (BC# 7507A-L/T*)
EXFO FTB-7500E-23B-EIi-VFL SM Long Haul OTDR Module (BC# 41097-L/T*)
- SM OTDR Source:
  - 1310nm
  - 1550nm
- VFL
Ethernet Cable
(2) SM SC-SC Fiber Optic Cables
Stylus
(4) Fiber Wipes
AC Adapter/Charger
Power Cord
User Manual On CD-ROM
Carrying Case (G)

BE SURE TO CHECK OUR EBAY STORE FOR OTHER ITEMS!

This Item Has A Current Calibration!

EXFO FTB-200-V2-S1 OTDR Main Frame w/
EXFO FTB-7500E 1310/1550nm SM Long Haul OTDR Module

Dynamic Range:
1310/1550nm : 45/45 dB

Includes Carrying Case & Accessories As Listed Above!

Working Condition: Excellent
Condition: Refurbished
Calibrated: Yes
Warranty: 1 YEAR WARRANTY

The FTB-200 is a compact, modular platform designed for multilayer and multimedium testing

Tests physical, transport and datacom
Accommodates two field-interchangeable modules
Integrated hardware options such as visual fault locator (VFL), fiber inspection probe and power meter

Designed for metro/access and FTTx networks

Lightweight construction
Touchscreen resistant to shock, water, dust and common chemicals
Dial and shortkeys for easy scrolling and selecting
Extended battery autonomy of more than eight hours, perfect for OTDR testing

Improved productivity

Four-second power-up time with Windows CE
Faster acquisition, processing and reporting

A Compact Platform Optimized for Large-Scale Network Deployments

EXFO has created the first true compact platform for the supertech. Whether you are testing triple-wavelength insertion loss at the CO or testing data ntegrity at the core, the FTB-200 has the power, speed and modularity that you need in the field.

Optimized for all phases of the network lifecycle

Construction/installation
System provisioning/service activation
Maintenance/troubleshooting

Lightweight

2.5 kg/5.4 lb (platform only)

Fast and powerful

Four-second power-up time with Windows CE/mobile

Faster acquisition, processing and reporting

Instantaneous AutoSync USB data transfer
Faster acquisitions—down to five seconds
Remote control and virtual applications

Flexible connectivity

File transfer and software upgrading through USB
USB A/A-B, RJ-45 and Bluetooth flexibility
Compact Flash (memory, Wi-Fi and Bluetooth)

Built for the outside plant

Waterproof outer shell, sealed joints, door panels for extra port protection
Advanced TFT transflective display, for great visibility under direct sunlight
Rugged shortkeys and tracking knob
GR-196-CORE-compliant
Extended battery autonomy of more than eight hours

Spcifications:

Display	Touchscreen, color, 640 x 480 TFT 163 mm (6 7/16 in)
Interfaces	USB A main USB B remote RJ-45 LAN 10/100 Mbit/s Compact Flash Fiber inspection probe connector port (video)
Storage	Internal 80 MB (Flash) USB sticks 1 GB and 2 GB (optional) Compact Flash cards (optional)
Batteries	Rechargeable Li-Ion 8 h of operation as per Bellcore TR-NWT-001138
Power Supply	AC/DC adapter, input 100-240 VAC, 50-60 Hz, 2 A max, output: 24 VDC, 90 W
Temperature	operating	—5 °C to 50 °C (23 °F to 122 °F)
	storage	—40 °C to 70 °C (—40 °F to 158 °F)
Relative humidity	0 % to 95 % non-condensing
Size (H x W x D)	322 mm x 197 mm x 109 mm	(12 11/16 in x 7 3/4 in x 4 5/16 in)
Weight	2.5 kg	(5.4 lb)
Vibration	< 1.5 g at 10 Hz to 500 Hz (on three main axes)
Mechanical shock	< 760 mm on six sides and eight main edges (according to GR-196-CORE)

FTB-7500E Metro / Long Haul OTDR Module

Features:

Dynamic range of up to 45 dB
Up to 256 000 sampling points
Event dead zone of 0.8 m and attenuation dead zone of 4 m
Industry-leading linearity of ±0.03 dB/dB
EXFO Connect-compatible: automated asset management; data goes through the cloud and into a dynamic database

Specifications:

Wavelengths (nm)	1310 ± 20/1550 ± 20
Dynamic range at 20 µs (dB)	45/45
Event dead zone (m)	0.8
Attenuation dead zone (m)	4/4.5
Distance range (km)	1.25, 2.5, 5, 10, 20, 40, 80, 160, 260, 400
Pulse width (ns)	5, 10, 30, 100, 275, 1000, 2500, 10 000, 20 000
Linearity (dB/dB)	±0.03
Loss threshold (dB)	0.01
Loss resolution (dB)	0.001
Sampling resolution (m)	0.04 to 5
Sampling points	Up to 256 000
Distance uncertainty (m)	±(0.75 + 0.001 % x distance + sampling resolution)
Measurement time	User-defined (5 sec. minimum to 60 min. maximum)
Typical real-time refresh (Hz	4
Stable source output power (dBm)	-1

For full EXfo FTB-7500E product specifications, please click here: EXfo FTB-7500E
