110V Automatic Double-sided Gluing Machine Glue Coating Machine for Paper & Leather

Product Overview

The automatic double-sided gluing machine is an efficient and professional device for coating the double sides of paper products, leather, thin workpieces and other objects with water-soluble glue evenly simultaneously and continuously. It is equipped with a high-quality soft roller to achieve more uniform gluing operation. The gluing machine has the advantages of uniform coating, gap adjustability, speed controllability, high working efficiency and so on. The automatic double-sided gluing machine can be widely applied to the industries of artware and model making, packaging, building decoration, shoe production, etc.

Product Parameters

Voltage	AC110V 60Hz
Power	200W
Coating Speed	0-16m/min
Coating Width	15.35" (370mm)
Material Thickness	0.004"-0.59" (0.1-15mm)
Product Size	33.07"×11.02"×20.87" (84×28×53cm)
Net weight	56kg (123.46LBS)

Product Features

1. High working efficiency, the 200W motor, low noise and energy consumption, achieves fast start and stop through one switch.

2. Better double-sided gluing effect, uses a soft roller with the gluing width of 15.35in, high elasticity, better coat uneven materials with water latex.

3. Large capacity, hold more glue with a glue box on the top, convenient to control through the control valve, easy to clean, resistant to corrosion. Also supply glue with the glue tray at the bottom, and facilitate double-sided gluing.

4. Excellent adjustability, two product thickness adjusting knobs for flexibly adjusting the gluing rollers to adapt to different materials, and four gluing thickness adjusting knobs for flexibly adjusting the roller gap to meet the gluing thickness demands.

5. Speed Adjustability, the speed regulator for easily adjusting the gluing speed as needed.

6. Good safety protection function, a motor safety baffle for improving safety and preventing accidents.

7. Wide application fields, suitable for gluing various materials such as paper and leather in different industrial fields.

High-Quality Motor

The 200W high-quality motor provides the enough driving power for glue coating operation, remarkably improving the production efficiency, obviously reducing the energy consumption and noise and effectively achieving high precision control and stable running. It is quickly started and stopped through one switch, and gives a quick response to the instruction.

Soft Roller

Compared with a traditional gluing machine, the automatic gluing machine has the advantage that a soft roller is adopted instead of a steel roller. The coating width can be 15.35in/390cm. The soft roller has good properties such as good elasticity, good coating uniformity and better gluing effect. The soft roller is more suitable for coating the uneven material surfaces.

Glue Box & Glue Tray

The top glue box and the bottom glue tray are adopted to provide water-soluble glue from the top and bottom correspondingly, well achieving double-sided gluing operation. The glue box on the top can hold large amount of glue and uses a control valve to adjust the glue flow, ensuring good sealing performance and controllability.

Speed Regulator

The speed regulator is of a knob structure, easily and accurately adjusting the gluing speed to meet the requirements of different materials and further improving the gluing effect. The structure is simple, and the practicability and reliability is higher.

Gap Adjusting Knobs

Four adjusting knobs on the front side are specially designed for adjusting the gap between the rollers so as to adjust the gluing thickness according to the user’s demand. When the knobs are adjusted properly, glue can be closely attached to the soft roller and then adhere to different materials along with relative rotation of the rollers.

Supporting Leg

The rubber supporting legs have a stable and reliable supporting effect on the machine, effectively reducing the vibration of the machine during use, preventing the machine from movement and keeping the machine balanced and stable.

Attention

1. In the working process, do not touch the rollers so as to prevent hands from being crushed.

2. Please note that the voltage of the gluing machine is 110V 60Hz.

3. Use glue that meets the requirements of the machine. Avoid using glue with strong corrosiveness or inconsistent with the viscosity requirements to avoid damaging machine components.

4. Each time the work is completed, please wipe away the glue on the machine to prolong the service life of the machine.

5. After the work is completed every day, each sleeve should be lubricated timely, then idling needs to be conducted for a few minutes, and then the machine can be stopped.

Operation Method

1. Preparation

(1) Place the machine on a flat and stable workbench, and adjust the bottom support feet to keep the machine horizontal.

(2) Open the lid of the glue storage device and pour an appropriate amount of glue into it. Be careful not to exceed the maximum scale line.

2. Parameter Setting

According to the thickness of the material to be glued and the required glue coating amount, adjust the roller gap through the adjustment knobs on both sides of the roller group.

3. Start-up Operation

(1) Connect the power supply, press the start switch on the right control box, and observe whether the glue spreading roller group operates normally.

(2) Slowly feed the to-be-glued material from one end of the glue spreading roller group to ensure that the material passes through the roller group smoothly.

4. Monitoring in the Gluing Process

In the gluing process, pay attention to the gluing situation. If problems such as uneven gluing occur, the glue outflow can be fine-tuned through the control valve below the glue storage device, or the roller gap can be adjusted.

5. Shutdown and Cleaning

(1) After the gluing work is completed, press the stop switch and turn off the power.

(2) Clean the glue storage device, glue spreading roller group and other components in a timely manner to prevent the glue from drying and affecting the next use. Special cleaning agents and tools can be used for cleaning according to the cleaning method in the manual.

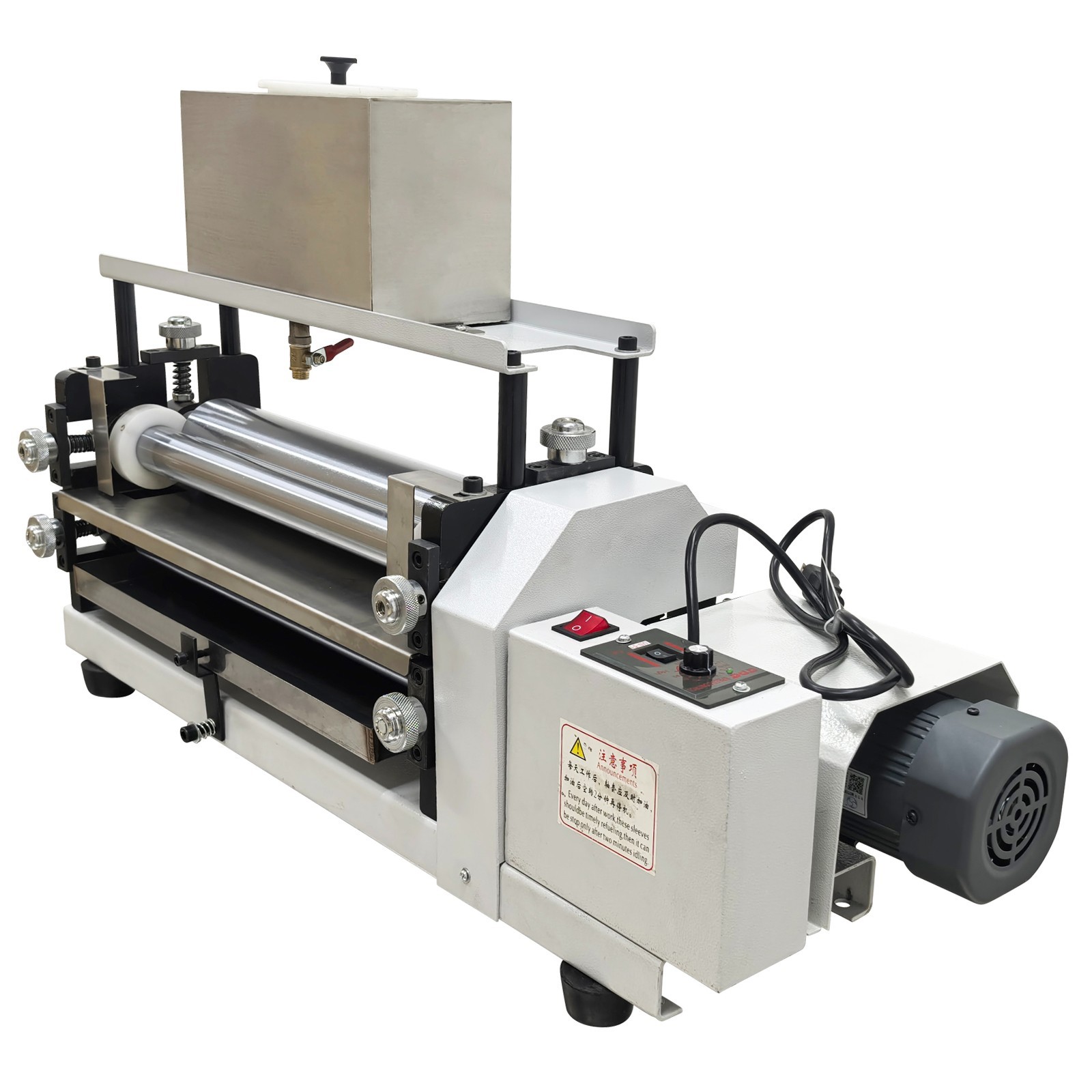

Product Display

Item Number (120124): 1 x Automatic Double-sided Gluing Machine 110V
