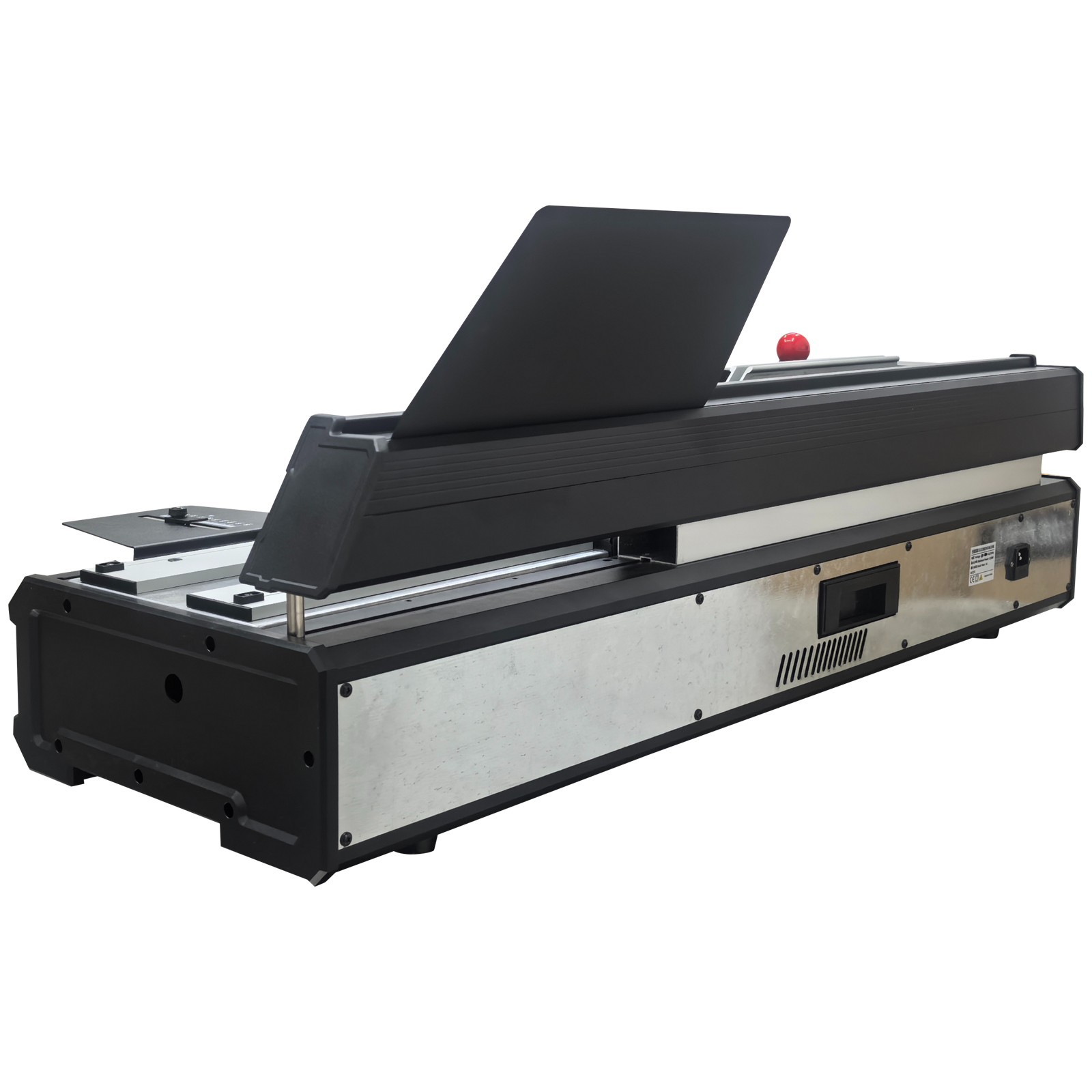

Product Overview

The semi-automatic binding machine is a robust and professional device designed for high-capacity production. It can bind large A4-sized documents with the thickness of up to 42 mm, using the combination of sun cutterhead and small milling cutter. It features button control, precise temperature control, multiple safety protection, low energy consumption and high yield of 250 books per hour. The binding machine is suitable for print shops, copy centers, and small-to-medium publishing operations that need to produce perfect-bound books (like reports, theses, manuals and paperback books) efficiently.

Product Parameters

Model	460 (Semi-automatic)
Voltage	110V
Power	1150W
Gluing Method	Automatic
Round / Square Corner Graduated Adjustment	Manual
Accessory	Paper scrap collection & smoke filtration
Milling Cutter Mode	Small milling cutter + Sun cutter Freely adjustable height of milling cutter
Bookbinding Speed	250 books per hour
Maximum Bookbinding Thickness	42 mm (1.65 in)
Binding Format	A4
Operation Mode	Manual paper clamping, manual trolley movement, automatic binding
Packing Dimension	42.13 × 16.14 × 13.39 in (107 × 41 × 34 cm)
Net Weight / Gross Weight	84.9 lb (38.5 kg) / 91.5 lb (41.5 kg)

Precaution

1. During heating, do not touch the glue tank to prevent scalding your hands. Do not place the machine in damp areas to avoid rust. The power socket shall comply with safety standards and be reliably grounded.
2. Do not put hands or tools into the machine during operation. Do not touch the running parts during operation.
3. Before bookbinding, wait for 15–20 minutes to preheat, completely melt the hot melt adhesive and reach the set temperature value.
4. Disconnect the power supply, and wait for the glue wheel to cool down before cleaning and maintenance.
5. Timely add the hot melt adhesive to ensure sufficient adhesive. Do not mix hot melt adhesive of different models or specifications.
6. Regularly clean the milling cutter and glue wheel and remove residual adhesive and paper scraps in the machine to avoid blockage.

Product Features

High Efficiency: The high yield of 250 books per hour makes it suitable for environments with significant daily binding demands.
High Capacity: The large capacity of 42 mm thickness allows it to handle very thick documents that smaller desktop binders cannot process.
Industrial Design: The significant weight and power consumption confirm it is a professional and stationary piece of equipment, not a light-duty office tool.
High Bookbinding Quality: The dual-cutter design improves the stability and consistency of bookbinding and ensures the books can be kept flat and orderly after repeated browsing.
Precision Temperature Control: The temperature knob can well control the temperature of the adhesive tank, ensuring the fluidity of the hot melt adhesive is located in an optimal state all the time.

Control Panel

The control panel is of a simple structure, integrates multiple switches and knobs to achieve manual control over power, milling, glue box, temperature and square / round corner adjustment, well meeting different bookbinding requirements.

Book Clamping & Processing Assembly

The book clamping mechanism can be manually controlled to be opened and closed quickly, the milling cutter and sun cutter are combined to improve the adhesive firmness, and the precision positioning and milling are achieved.

Adhesive Coating Unit

The large-volume adhesive pot is matched with the adhesive wheel and adhesive scraping part, effectively achieving appropriate adhesive coating. Adhesive heating is quick and uniform, and the preheating time is effectively shortened.

Cover Mounting Assembly

The accurate and adjustable positioning scale is integrated on the platform, enabling the book cover to be bound with paper sheets firmly and precisely, preventing the book cover from deviation and improving the bookbinding precision.

Residue Box

The drawer type detachable residue box is made of sturdy and wear-proof materials, has a sufficient storage space, can effectively collect and discharge paper scraps and residues generated by milling, and improves the practicability.

Supporting Legs

The rubber supporting legs are wear-proof and anti-skid, can stably support the machine body on the workbench, prevent the machine body from movement during operation, and have good shock absorption and noise reduction.

Operation Method

Take out the machine and place it on the horizontal workbench.
Plug the power cord to a well connected (3-core) grounding socket.
Turn on the red power switch, adjust the temperature to 155–165 degrees, adjust the pressure to "8" position and then sustain for around 8 seconds.
The heating time of this machine is about 15–20 minutes. A ticking sound will be heard when the machine warms up well, and then it can be ready for work.
Place the inner pages flat into the paper clamping platform and tighten the hand wheel, push the "start", hold the handwheel and push the handle from the left to the right at a constant speed. Loosen the handwheel and take out the book when the binding on the right platform is finished and fall down automatically, and then let the machine back to the left origin.
Keep the made-files on a smooth platform for at least 10 minutes until the glue cools down to make sure the files are bound firmly.
Pull out the dust box from the back of the machine and clean it after 50 made-files are finished. This can keep the machine always running well.

Product Display

Item Included

(026040) 1 × Hot Glue Binder 110V

Shipping & Handling Details

Default Shipping Cost or Free Shipping

Default shipping cost or free shipping service is only for the lower 48 United States by UPS Ground or USPS. Other areas or needs other shipping ways, please contact us.

Buyers from Guam, Puerto Rico, Virgin Islands, American Samoa, Alaska, Hawaii, PO Boxes, APO/FPO addresses or other countries / areas, there will be extra shipping costs, please contact us for more detailed information.

Please make sure your address is valid for both UPS and USPS services. Any costs incurred because of incorrect or undeliverable address shall be undertaken by buyer.

Handling Time

Shipping is usually made in 1–3 business days after payments cleared. Orders are processed from Monday–Friday; not on the weekends & public holidays.

Sales Tax / Customs Duties

Any sales taxes or customs duties are not included. If came out, they must be undertaken by the buyer. Sales Tax of 8% will be applied for orders shipped within the state of California.

Damage In Shipping

Email or call us First! We will work with you to get the case resolved in the fastest method.

Return & Refund

If you are not 100% happy with your purchase, please contact Us. Please don't directly opened a request or case without informing us, or else, we will do some discounts on the warranty and other sales-services later on. Hope for your understanding.

Returns & Exchanges

All returns must be made within 14 days of delivery date. Items must be in new, unused condition, with all original materials included with the shipment. A partial refund may be applied for opened or damaged items, depending on the condition.

Items returned under the buyer remorse: The return shipping fee must be covered by the buyer; The original shipping cost will also be deducted from the refund. 15% restocking fee of the item's purchase price will be charged.

Returns that are the result of our seller's error: Buyer will receive a full refund of the item as well as shipping charges.

All returns require a RA (Return Authorization) number that will be given by our seller. Please contact with us at first for more details.

Defective & Damaged Products

If product was received damaged or not as described, please send us some pictures or videos, so we could well understand your problem, then solve them for you ASAP. Besides, it's much helpful for us to claim with UPS, remind our related department to pay much more attention to packaging later on. Hope for your understanding.

Replacement or refund of defective or damaged products can only be returned in exchange for the exact same product, or else, the purchase price will be refunded back to your original payment method.

If an item is received damaged, customer service must be contacted within 7 days of receiving your item. All returns require a RA (Return Authorization) number as above.

Payment

eCheck Issues

Payments via eCheck do not clear immediately. Usually you will wait 5–7 days after checkout for it to clear. Then we will arrange shipments for you.

Warranty & Feedback

6 months' warranty for the machines, not for the consumables. We stand behind our products all the item, so even if your warranty period has expired, you can still seek for service or technical support from us with low cost.

Any warranty shipping cost to us is responsible by buyer. Any shipping cost to buyer is responsible by the seller.

We committee to the customer satisfaction and want to bring you the best purchase experience. If there is any problems, please contact us ASAP. If not, please leave us a positive feedback as it's very important for us. Thanks very much.
