DC 12V Vibration Motor 30W Vibration Motor Vibration Motor with Speed Controll

Description

An efficient machine can facilitate your work and increase your productivity. This high-end vibration motor can be used in various applications. It features precision bearings, rotors, and copper wire coils to ensure smooth and energy-efficient running. Multiple protection mechanisms can somewhat ensure the safety of your use, and it is suitable for many occasions. It is a reliable motor you don't want to miss!

An efficient machine doesn’t just simplify work—it also elevates productivity, and this excellent vibration motor embodies this advantage. Applicable in many areas, it integrates precision bearings, rotors, and copper wire coils to achieve smooth, energy-efficient performance. Multiple protection mechanisms contribute to safer usage, and its suitability for diverse scenarios makes it a reliable motor deserving of consideration.

Key Features

Sturdy and Reliable: The product is made from high-grade aluminum alloy and copper, utilizing die casting and baked paint processes, which result in high strength, excellent wear tolerance, and long service life.

Robust Build: Crafted from premium aluminum alloy and copper through die-casting and baked paint processes, this product demonstrates exceptional structural strength, wear tolerance, extended service life, and dependable performance.

Comprehensive Protection: The sealing grooves, O-ring seals, and sealing structure provide excellent sealing performance for this product to withstand harsh environments. F insulation class and IP65 protection better ensure safety during handling, so you can use it with peace of mind.

Reinforced Safety: Featuring sealing grooves, O-ring seals, and an integrated sealing structure, this product achieves robust sturdiness and performs reliably in challenging conditions. With F-class insulation and IP65-rated protection, it offers enhanced safety.

Strong Performance: The 30W brushless motor, pure copper coils, high-performance bearing, and high-precision rotor endow this product with strong power, which can work normally even under heavy loads and meet various commercial purposes.

Dependable Performance: The 30W brushless motor, combined with pure copper coils, excellent bearings, and a precision-engineered rotor, delivers reliable power output, enabling consistent running under demanding conditions and supporting a wide range of commercial applications.

Compact & Convenient: The motor's small size (4.15*2.95*1.86 inches) makes it adapt to most settings with less spatial limitations. It supports external lithium battery or storage battery power supply(not included), making it ideal for diverse work scenarios.

Compact & Flexible Design: With compact dimensions (4.15 × 2.95 × 1.86 inches), the motor fits easily into various setups, reducing space constraints. It can also be powered by an external lithium battery or storage battery(not included), enhancing flexibility across different working environments.

Adjustable Design&Remote Control: By turning the knob on the speed controller, you can set 9 speeds with a range of 0-7000 rpm to meet your various vibration needs. Additionally, it features an efficient and user-friendly control device with a signal transmission range of 98.43 feet, easily adapting to diverse working environments.

Adjustable Performance & Extended Control: It is equipped with a 9-speed adjustable controller (0-7000r/min) to meet different vibration requirements; and it also supports remote control with a distance of up to 98.43ft, enabling more efficient and convenient control.

Details

Pre-drilled Holes: The pre-drilled holes on the motor and speed controller base help you quickly secure them for more stable running.

Reserved Holes: Reserved holes on the motor and speed controller base allow for easier and quicker mounting, contributing to a more stable setup.

Round Corners: This can better care for your skin during the installation process.

Round Corners& Smooth Edges: They enhance safety by reducing sharp edges and providing a more comfortable touch during installation.

Application

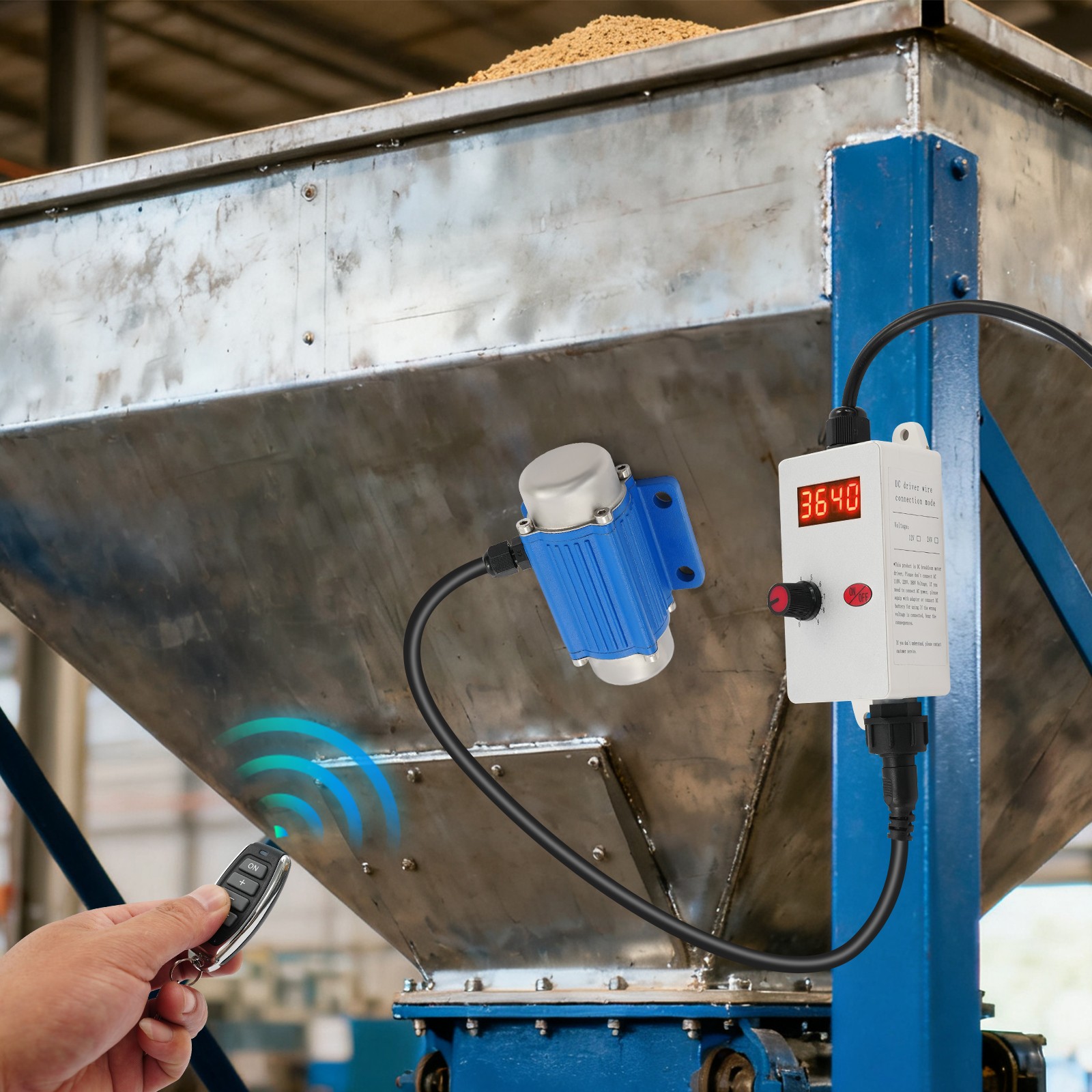

It can be widely used in mining, metallurgy, coal, electric power, construction, casting, food, spraying equipment, grain machinery, and other fields.

Specifications

Color: Silver, Blue

Material: Aluminum Alloy, Copper

Process: Die Casting, Baked Paint

Motor Type: DC Brushless Motor

Voltage: DC12V

Current: 2 A

Power: 30W

Speed Gears: 9

Excitation Force: 0.2KN

Maximum Speed: 7000rpm

Protection Grade: IP65

Insulation Level: F

Ambient Temperature Range: -20°C~40°C/-4°~104℉

Remote Control Distance: 30m/98.43ft

Product Size: 105.4*75*47.35mm/4.15*2.95*1.86in

Package Size: 19.5*14*12cm/7.68*5.51*4.72in

Gross Weight: 1kg/2.2 lbs

Net Weight: 0.95kg/2.09 lbs

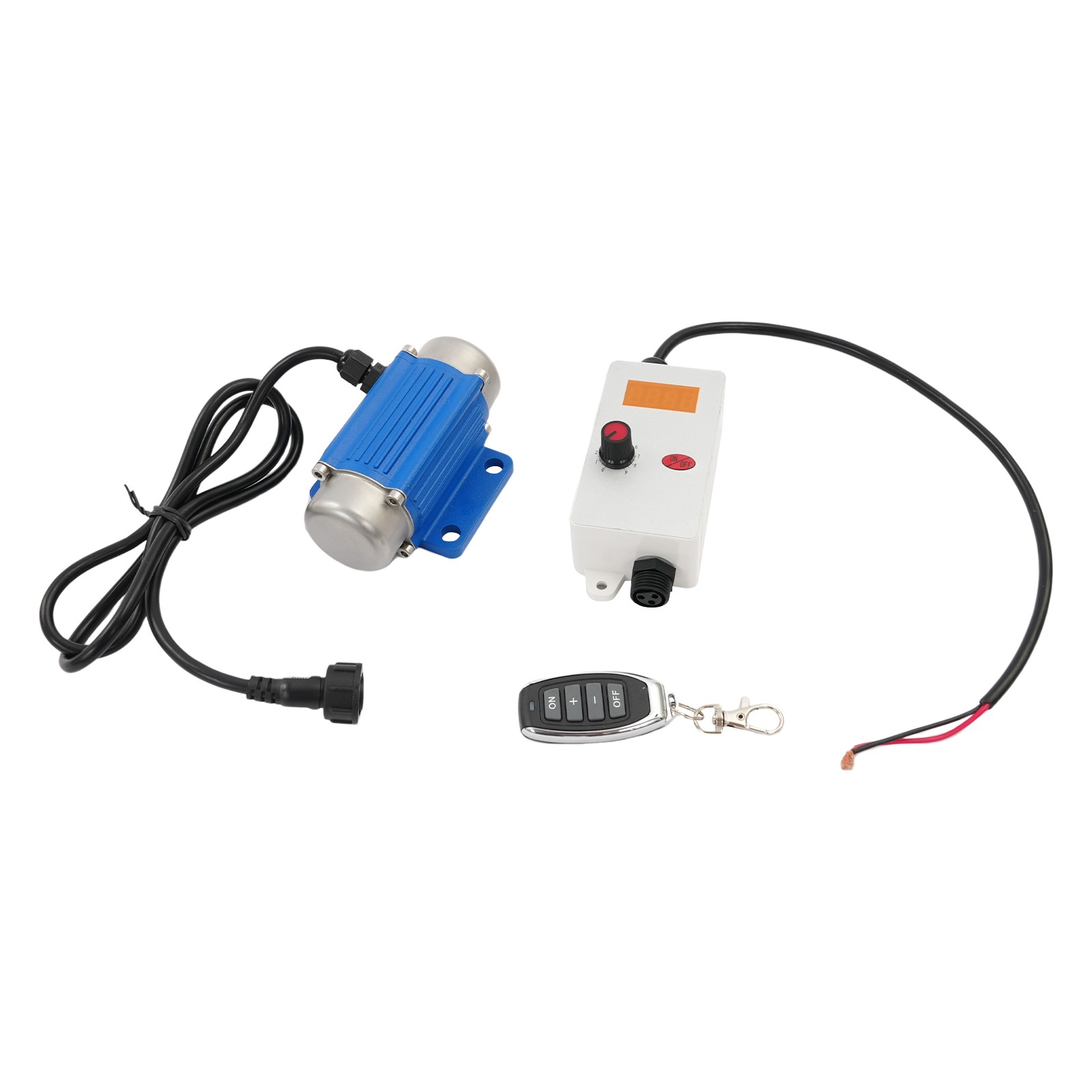

Package Included

1* Vibration Motor

1* Speed Controller

1* Remote Control

Notes

To ensure the normal installation and use of the motor, please confirm the motor model and installation size before purchasing.
Before use, please fix the motor with screws(not included) to avoid safety accidents, and remember to check the tightness of the mounting screws and the dust on the surface of the vibration motor regularly.
This series of products is DC motors; direct AC input is strictly prohibited. If AC power is required, a converter must be fitted.
For the motor driver input terminal, the red wire is the (+) positive pole, and the black wire is the (-) negative pole. Reversing the positive and negative connections is strictly prohibited.
Please allow the slight color difference caused by the shooting light and a 1-3cm error due to manual measurement, and make sure you do not mind before you order.
