Business & Industrial|Hydraulics, Pneumatics, Pumps & Plumbing|Hydraulic & Pneumatic Motors

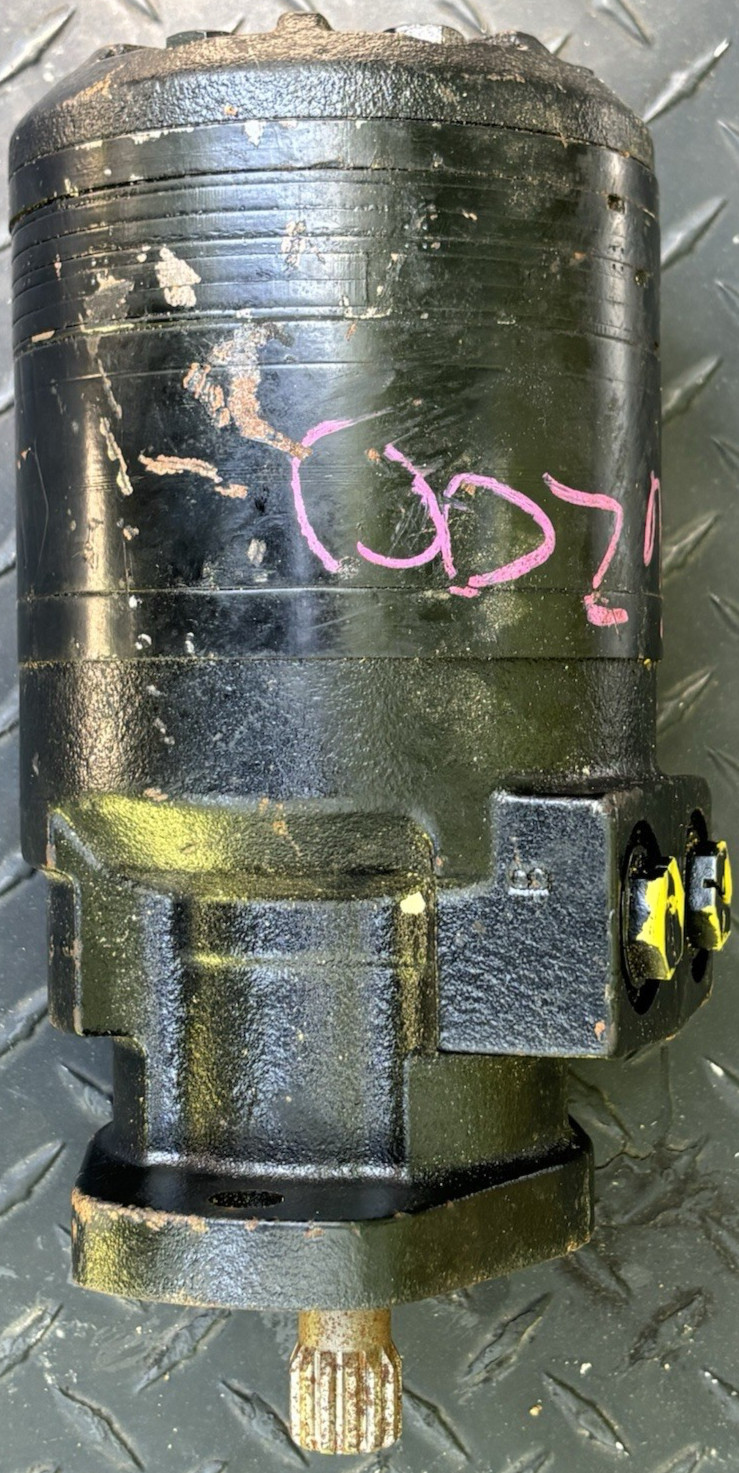

Parker Hannifin TF Hydraulic Motor TF0405AS280AAAA SAE A 2-Bolt Spline 405cc
USD
$643.80
Seller:
neilpaigeparts
100.0% positive
(918 reviews)
Baltimore, US
Only 1 left
US
Shipping
UPS Ground
FREE
Request Quote
View on eBay
As an eBay Partner Network Affiliate, I earn from qualifying purchases.
Secure Transaction
Fast Response
Quality Guarantee
Specifications
| Maximum Continuous Pressure | 1,850 PSI (128 bar) |
|---|---|
| Housing Finish | Industrial-grade black paint finish |
| Outlet Port Diameter | 7/8-14 UNF-2B straight thread O-ring port |
| Maximum Intermittent Torque | 9,103 in-lbs (1,028 N-m) |
| Maximum Intermittent Pressure | 2,750 PSI (190 bar). |
| MPN | TF0405AS280AAAA |
| Maximum Intermittent Flow Rate | 25 GPM (95 L/min). |
| Shaft Length | 1.53 inches (38.9 mm) |
| Maximum No-Load RPM | 231 RPM |
| Max. Oil Temp | 130 °F |
| Inlet Port Diameter | 7/8-14 UNF-2B straight thread |
| Shaft Type | 13-Tooth Splined shaft |
| Shaft Diameter | 1-1/4 inches (1.25 in / 31.75 mm) |
| Mounting Type | SAE A 2-Bolt |
| Displacement | 24.7 cubic inches per revolution |
| Brand | Parker Hannifin |
| Series | TF |
| Maximum Continuous Flow Rate | 20 GPM (76 L/min) |
| Torque at Maximum Pressure | 1,948 in-lbs |
| Length | 8.87 in |
| Rated Power | 29.7 HP (22.1 kW) |
| Maximum Continuous Torque | 6,076 in-lbs (686 N-m) |
| Rotation Direction | Standard bi-directional rotation |
| RPM at Maximum Torque | 181 RPM - 224 RPM |
| Total Product Weight | 36.4 lbs |
| Country of Origin | United States |
