USED - Eaton Cutler-Hammer HND312T38W HND 65k Circuit Breaker 1200A 600V 3 Pole with Digitrip RMS 310 Trip Unit + Lugs + Aux Wires

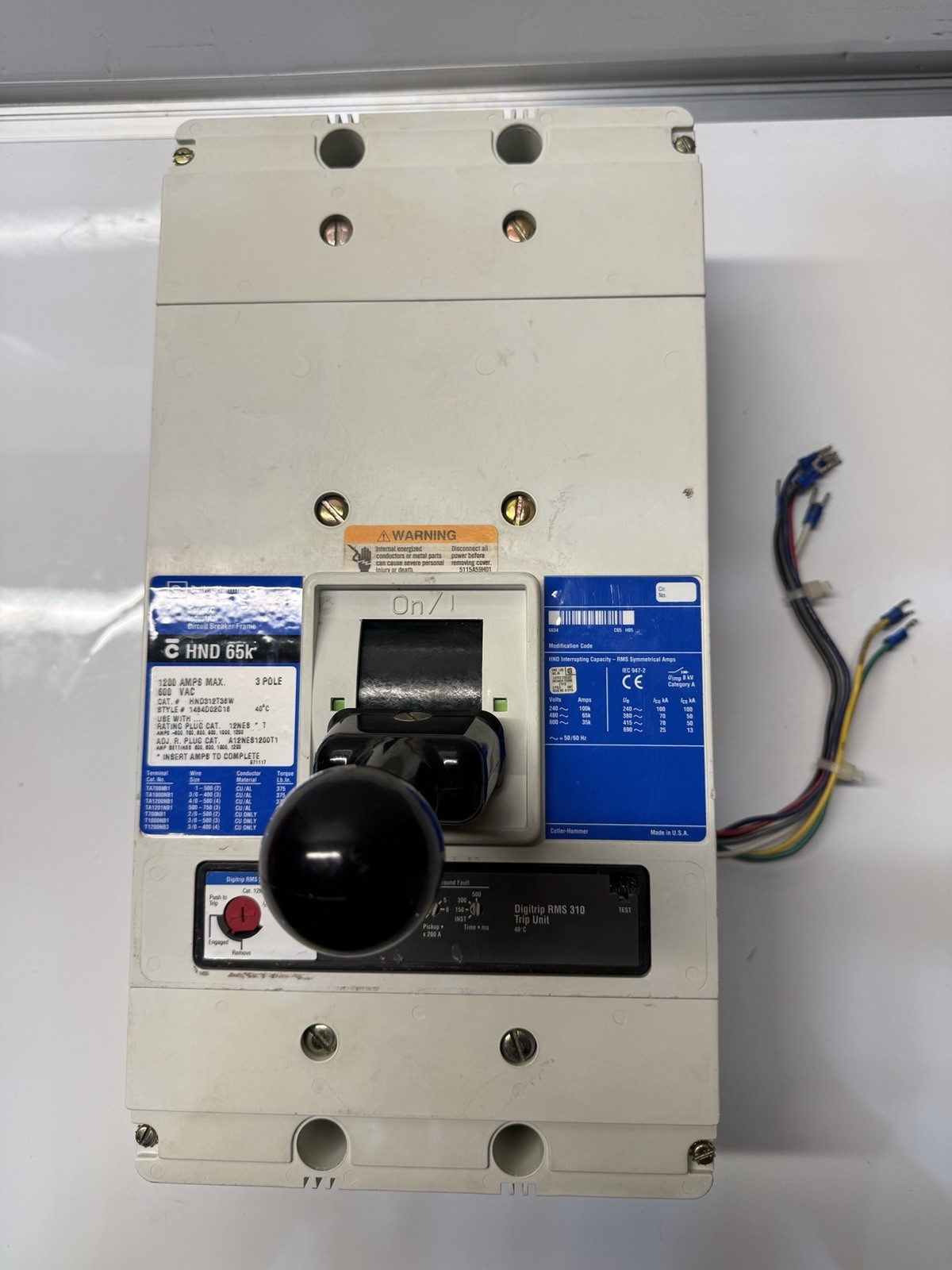

You are buying 1 Eaton HND312T38W HND 65k Breaker as pictured - 7 photos - Frame + Trip Unit + Rating Plug + Lugs + Aux Wires + Ball Handle.

Catalog: HND 65k - 1200 AMPS MAX. 600 VAC 3 POLE - CAT. # HND312T38W - STYLE # 1484D02G16 - 40°C - USE WITH RATING PLUG CAT. 12NES * T AMPS 600,700,800,900,1000,1200 - ADJ. R. PLUG CAT. A12NES1200T1 AMP SETTINGS 600,800,1000,1200 - *INSERT AMPS TO COMPLETE - Terminal Cat. TA700NB1, TA1000NB1, TA1200NB1, T700NB1, T1000NB1, T1200NB3 - Wire Size 1-500(2), 3/0-400(3), 4/0-500(4), 500-750(3), 2/0-500(2), 3/0-500(3), 3/0-400(4) - CU/AL or CU ONLY - Torque 275-450 Lb.In. - WARNING Internal energized conductors - 5115A59H01

Trip: Digitrip RMS 310 Trip Unit 40 C - Digitrip RMS 310 Rating Plug Cat. 12NES1200T - In=Ir=1200A - Push to Trip red button - Engaged/Remove - Short Delay Pickup x Ir 2-8, Time ms 100-300 INST - Ground Fault Pickup x 200A 1-6, Time ms 150-500 INST - TEST port - See photos

Lugs: Quad lugs installed - 3 per side - Large aluminum blocks with 4 holes each - 3/0-400 MCM - Silver oxidation normal - Threads perfect - See bottom photos

Aux: Auxiliary Switch / Alarm harness - 7 wires - Blue fork terminals - Yellow/Green/White/Gray/Red/Black/Blue - 2 white zip ties - WARNING Sensitive leads Breaker trip unit can be damaged by hi-potting - See side photos - For BAS / remote status / trip indication

Handle: Ball handle On / I - Black ball joystick - For direct panel operation

Label Right: HND Interrupting Capacity - RMS Symmetrical Amps - Volts 240~ 100k, 480~ 65k, 600~ 35k - Ue Icu kA Ics kA - 240~ 100 100, 380~ 70 50, 415~ 70 50, 690~ 25 13 - 50/60 Hz - CE - Made in U.S.A. - Cutler-Hammer - 5634 C65 H05 - Modification Code - 1484D02G16 9711171708 G24 barcode on side

Eaton HND312T38W Breaker 1200A HND 65k 600V 3 Pole Digitrip RMS 310 12NES1200T
