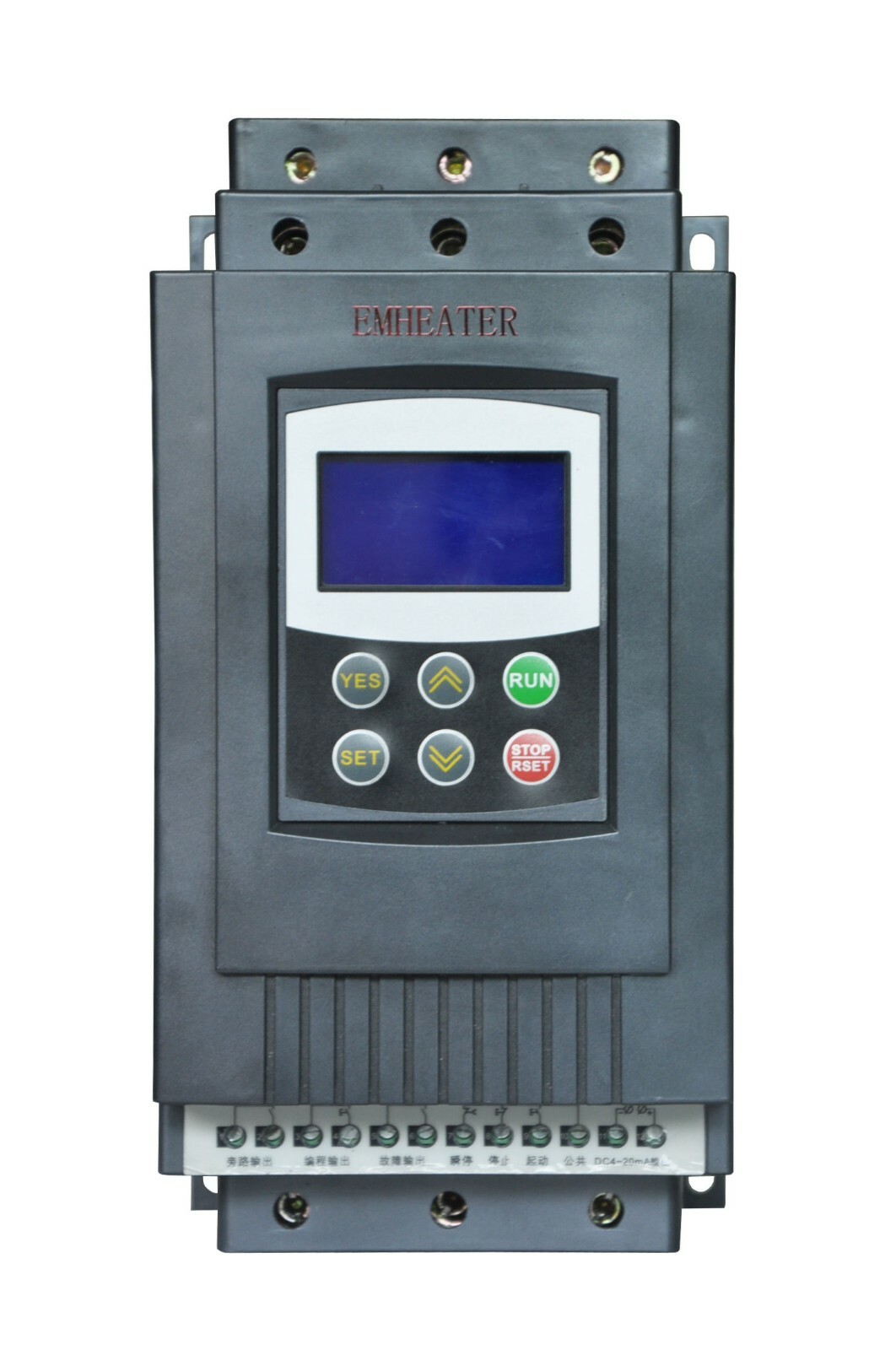

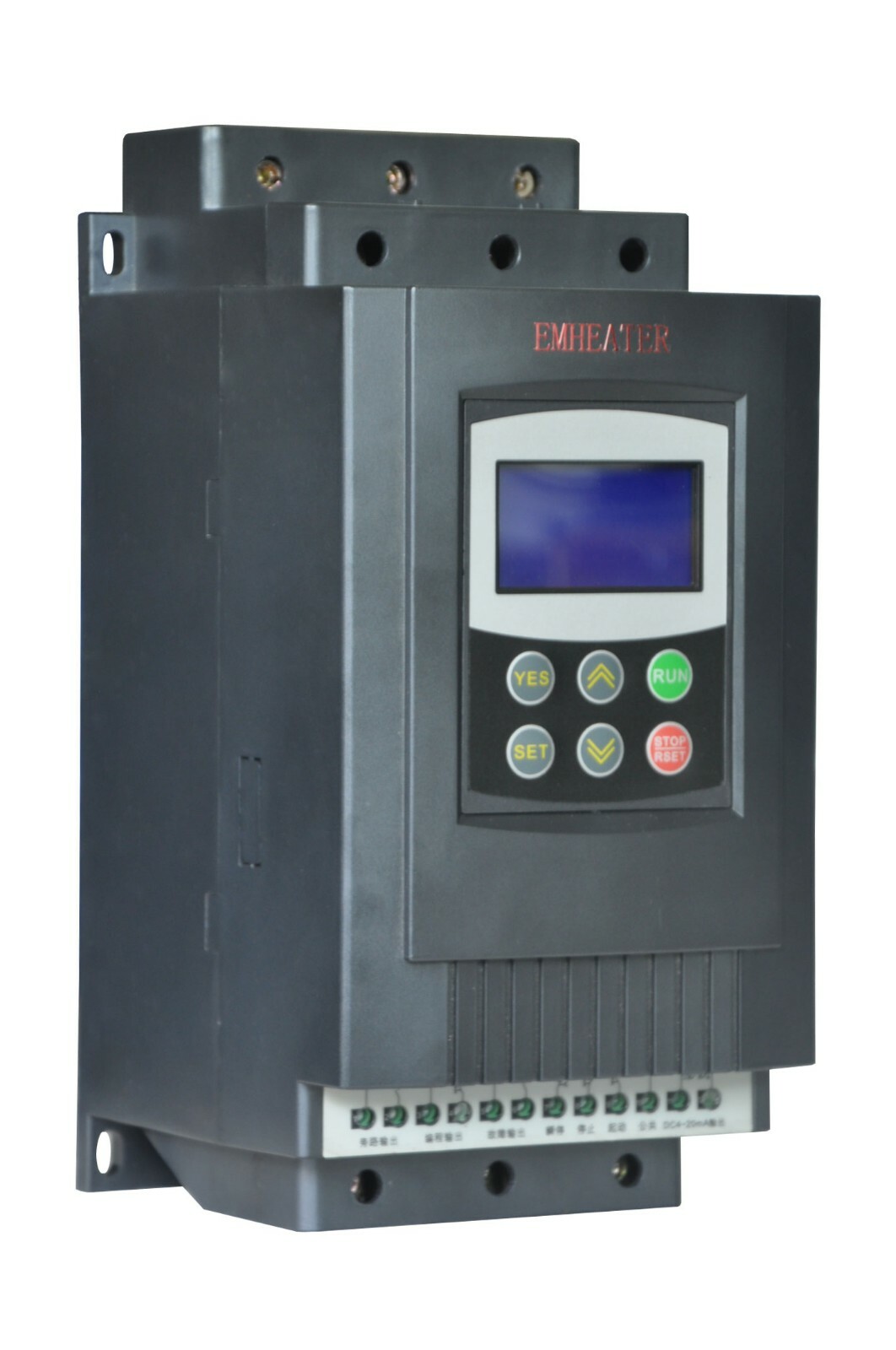

40HP 30KW motor Soft Start Soft Starter 3 phases AC 440~480v 60A

EM-GS4-030 3phase 440~480V soft starter; Power 30KW, rated Current: 60Amp.

Product Features：

Intelligent digital motor soft start equipment system with the complete protection function, extend the service life of the system, reduce the cost of system cost, improve the reliability of system and compatible with all the functions of starting equipment; It is a new ideal alternative for traditional star triangle starter and self-coupling decompression starter.

Product characteristics

l Reduce the starting current, reduce power supply peak current, reduce the cost of distribution equipment. Reduce the abrasion of motor, improve the service life of mechanical equipment.

l Optional starting parameters are convenient in one soft starter starting different motors.

l Soft starter inspects motor feedback voltage to realize closed loop control, ensure the motor start-up success in different conditions and different loads.

l A variety of starting ways: voltage ramp starting way can get the maximum output torque; Current limiting can realize biggest limitations of the soft start starting current.

l Reliable quality assurance: using computer simulation design; SMT production process; Excellent electromagnetic compatibility performance; High temperature aging, vibration test of the machine before delivery.

l Perfect and reliable protection function: loss of voltage, less voltage, over voltage protection; overheating, starting time too long; Input phase lost, output phase lost, three-phase imbalance; starting over current, overload and load short circuit protection, etc.

l Full dynamic control field-bus monitoring starter, easy networking.

l LED displaying screen can display parameter code, state and error.

Application industry

General purpose soft start motor control applications where traditional across-the-line starting or wye-delta starting would typically be appropriate. Typical application types include:

- Motor fan:use soft starter instead of conventional starter, to realize the smooth start.
- Compressor: The soft starter limit the startup current, reduce the abrasion and mechanical impact, reduce the heat of motor, prolong the working life, save the maintenance cost.
- Crusher: The block protection of soft starter prevent the motor being over burnt and hurt damaged come from mechanical fault and block.
- Transmission machine: soft startup and presetting slow movement realize smooth, gradual start, to avoid products movement and liquid overflow.
- Pump: the control of soft starter reduce the water hammer result from liquid impact, saving maintenance cost for system.
- Grinder: The soft start reduce the abrasion of wheels, lighten the maintenance cost and tiem.

l Agitator

l Air Compressor

l Ball Mill

l Centrifuge

l Chiller

l Conveyor

l Crusher

l Escalator

l Fan (Low and High Inertia)

l Feeder

l Grinder

l Hammer Mill

l Lathe Machine

l Mills (Flour, etc.)

l Mixer (Unloaded or Loaded)

l Pelletizer

l Plastic and Textile Machines

l Press (Flywheel)

l Pump (Centrifugal)

l Pump (Positive Displacement)

l Rolling Mill

l Saw (Band)

l Saw (Circular)

l Screen (Vibrating)

l Transformer

l Tumbler

l Wood Chipper

Three phase input & output

Model No.

Voltage

Power

Current

G.W

Starter size

Installation dimension


(V)

(KW)

(A)

(KG)

L/W/H(mm)

H/W/D(mm)

EM-GS4-5d5

480

5.5

11

5

270/146/160

247/131/Ф6

EM-GS4-7d5

480

7.5

15

5

270/146/160

247/131/Ф6

EM-GS4-011

480

11

23

5

270/146/160

247/131/Ф6

EM-GS4-015

480

15

30

5

270/146/160

247/131/Ф6

EM-GS4-018

480

18

37

5

270/146/160

247/131/Ф6

EM-GS4-022

480

22

43

5

270/146/160

247/131/Ф6

EM-GS4-030

480

30

60

5

270/146/160

247/131/Ф6

EM-GS4-037

480

37

75

5

270/146/160

247/131/Ф6

EM-GS4-045

480

45

90

5

270/146/160

247/131/Ф6

EM-GS4-055

480

55

110

5

270/146/160

247/131/Ф6

EM-GS4-075

480

75

150

5

270/146/160

247/131/Ф6

EM-GS4-090

480

90

180

21

525/257/194

377/195/Ф8

EM-GS4-115

480

115

230

21

525/257/194

377/195/Ф8

EM-GS4-132

480

132

264

21

525/257/194

377/195/Ф8

EM-GS4-160

480

160

320

21

525/257/194

377/195/Ф8

EM-GS4-185

480

185

370

21

525/257/194

377/195/Ф8

EM-GS4-200

480

200

400

21

525/257/194

377/195/Ф8

EM-GS4-250

480

250

500

25

560/290/245

465/260/Ф8

EM-GS4-280

480

280

560

25

560/290/245

465/260/Ф8

EM-GS4-320

480

320

640

25

560/290/245

465/260/Ф8

EM-GS4-355

480

355

710

25

560/290/245

465/260/Ф8

EM-GS4-400

480

400

800

32

590/330/245

490/300/Ф8

EM-GS4-450

480

450

900

32

590/330/245

490/300/Ф8

EM-GS4-500

480

500

1000

45

750/450/300

575/400/Ф10

EM-GS4-600

480

600

1200

45

750/450/300

575/400/Ф10

This is the price for 30kw. If you need other models, please let us know. Thank you.
