IVS Accuvision 200 0001-00055 ECB Vacuum System Control Board PCB Module

IVS Accuvision 200 0001-00055 ECB Vacuum System Control Board PCB Module

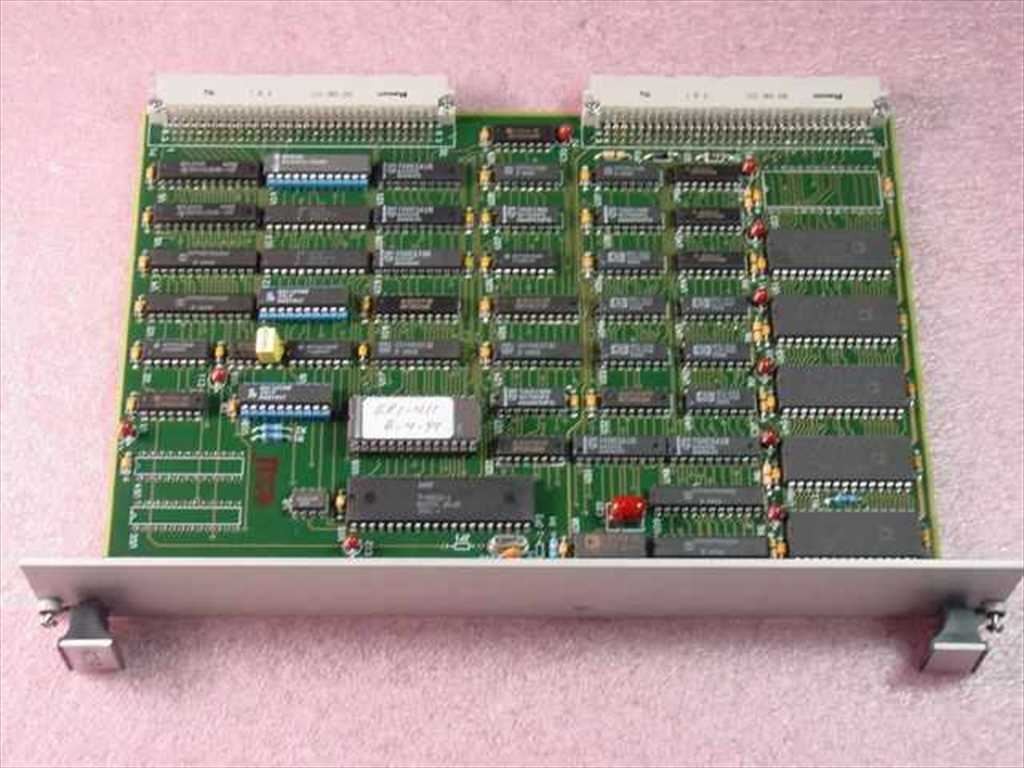

This is the ECB (Electronic Control Board) for the IVS Accuvision 200 vacuum system, identified by assembly number 0001-00055. The board is a multi-IC populated PCB module that serves as the central control card within the Accuvision 200 vacuum process system, managing electronic control functions for the vacuum system's operation. A copyright date of 1983 is printed on the board, placing this card in the early-1980s era of dedicated industrial vacuum control electronics.

Specifications & What's Included

Manufacturer: IVS
Compatible System: Accuvision 200 Vacuum System
Assembly Number: 0001-00055
Board Type: ECB — Electronic Control Board
Form Factor: Card/PCB module with rack-mount card guides (slides into card cage)
PCB copyright date: 1983

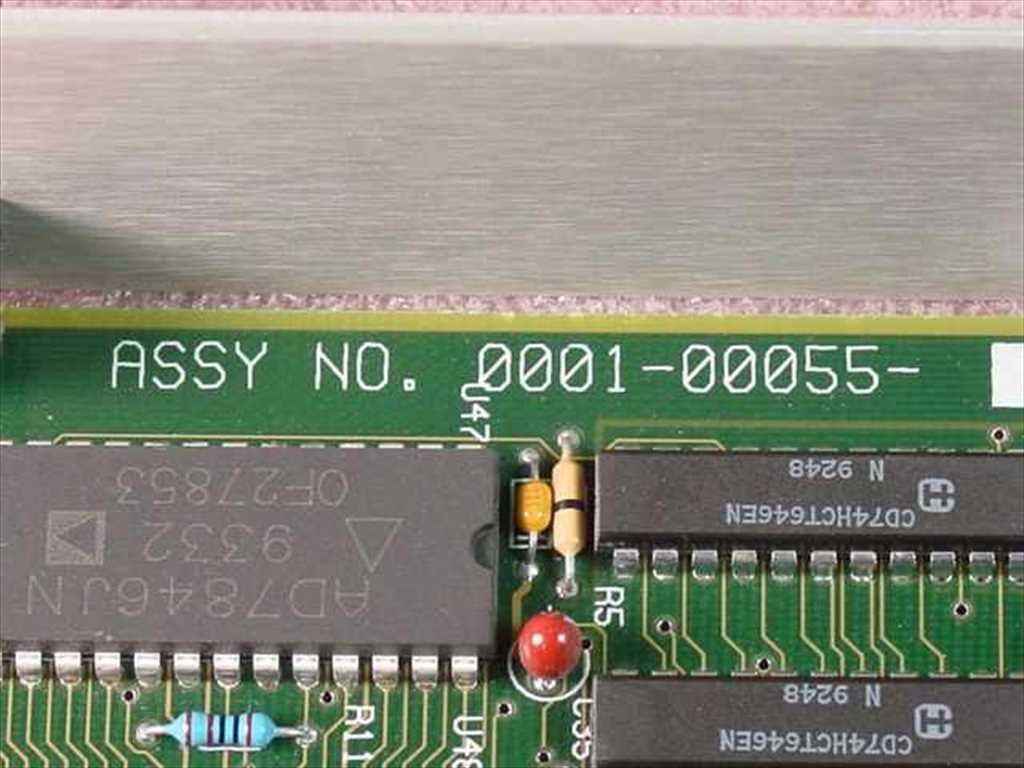

Visible ICs include: AD78463JN analog/mixed-signal IC; CD74HCT646EN octal bus transceiver/register (multiple)
Additional ICs: numerous through-hole DIP logic and memory ICs populating both halves of the board

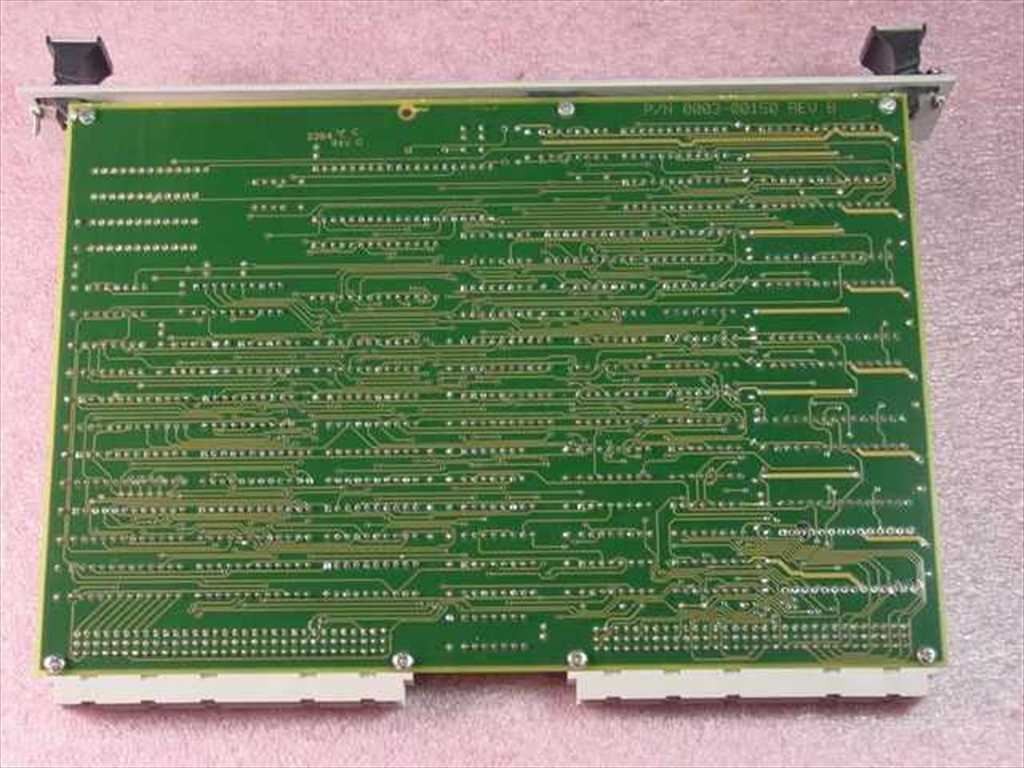

Board connectors: dual edge-card connectors (left and right) for backplane mating
Includes: board only

Applications

The IVS Accuvision 200 is an industrial vacuum system used in thin-film deposition, sputtering, and related vacuum process applications — equipment common in semiconductor fabrication, optical coating, and research environments from the early 1980s onward. The ECB (Electronic Control Board) is the system's main process control card, handling logic, sequencing, and I/O within the vacuum system's card cage. Replacement and spare ECBs like this one are sought by facilities still operating Accuvision 200 systems, as well as technicians performing depot-level repairs. The CD74HCT646EN bus transceivers and the mixed-signal AD78463JN IC are characteristic of 1980s industrial control board designs that bridged analog process signals with digital control logic.

Condition: Used
This IVS Accuvision 200 ECB Control Board (0001-00055) has been inspected and is in good used condition. It was pulled from a working vacuum system environment where it was in active use and functional. The board shows normal age-related patina consistent with its 1983 date code — component markings are intact, ICs are seated, and there is no visible physical damage, burnt components, or broken traces. Please view our photo set and contact us if you have any questions.
