Product Description

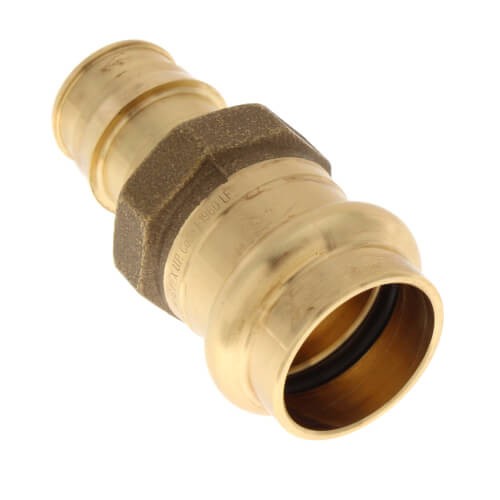

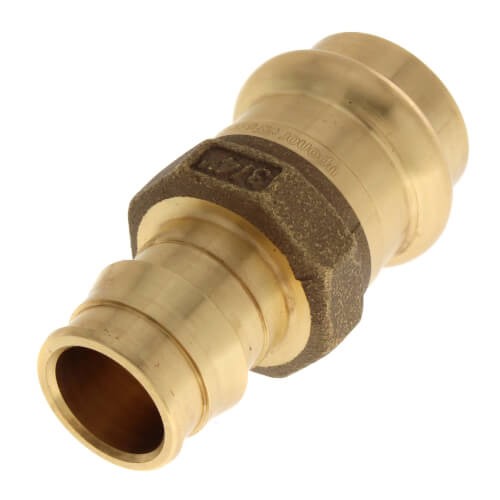

The Uponor LFP4517575 ProPEX LF brass copper press adapter transitions copper pipe to Uponor PEX. This adapter fitting is designed for hot and cold potable water, hydronic heating, and cooling systems. It provides fast, consistent, reliable connections for ASTM F1960 ProPEX expansion systems to copper press systems.

Faster installations compared to copper sweat transitions for greater profitability
Eliminates hot work for safer job sites
Reduces liability with the only PEX connection system that cannot be dry fit

Product Highlights

The Uponor ProPEX adapter provides a reliable method for joining copper pipe or copper fittings without the need for dangerous hot work.

Product Information

Standard Information

Brand: UPONOR
Manufacturer Part Number: LFP4517575
Country of Origin: US

Technical Specifications

Applicable Standard: NSF 14/61/372, CSA B137.5, UPC, IAPMO, IBC, IMC, IRC, IPC, NSPC, NPC, UMC, ICC PMG 1006, ICC ES LC1002, HUD MR 1269
Application: Hot and Cold Potable Water, Hydronic Heating and Cooling System
End Connection: ProPEX x Copper Press
Material: Brass
Material Specification: ASTM F877/F1960
Pressure Rating: 80 PSI
Size A: 3/4 Inch
Size B: 3/4 Inch
Temperature Rating: 200 Deg F
Type: Straight
Size: 3/4 in PEX x 3/4 in Copper
End Style: PEX x Copper
Length: 2-3/8 in
Nominal Size: 3/4 in
Connection Size: 3/4 in
Connection Type: PEX x Copper
Sub Brand: ProPEX
Material Specifications: ASTM F877, ASTM F1960
Operating Temp Range: 0-200 F
Lead Free: Yes
End Size 1 [inch|mm]: 3/4"
End Size 2 [inch|mm]: 3/4"
End Type 1: ProPEX
End Type 2: Copper Press
Material Gasket: EPDM
Operating Pressure 1 [PSI]: 160 psi
Operating Pressure 2 [PSI]: 100 psi
Operating Pressure 3 [PSI]: 80 psi
Operating Temperature 1 [ 0 F]: 73 0 F
Operating Temperature 2 [ 0 F]: 180 0 F
Operating Temperature 3 [ 0 F]: 200 0 F
Cv: 13.4
Width: 0.886 IN
Material Standard: ASME B16.51, ASTM F877, ASTM F1960
Industry Standards: UPC, IBC, IRC, IPC, NPC of Canada, UMC, NSPC, IMC, IAPMO PS 117, NSF372, ICC-ES LC1002, CSA B137.5, NSF-61, NSF-14, IAPMO-ES, cNSFus-pwG, U.P.Code, ICC-PMG-1412
Other Physical Dimension: 1.236 IN Hex Size
Dimensions: 2.4 in L x 1.1 in W x 1.1 in H
Fitting Type: Adapter
Material Construction: Brass
Country of Origin: US
Fitting/Connector Type: Adapter
Standards/Approvals/Certifications: ASME B16.51 IAPMO PS 117 NSF-372 ASTM F877 ICC-ES LC1002 ASTM F1960 CSA B137.5 NSF-61 NSF-14 IAPMO-ES cNSFus-pw-G U.P.Code ICC-PMG-1412

Brand	UPONOR
MPN	LFP4517575

Uponor LFP4517575 ProPEX LF Brass Copper Press Adapter 3/4
