AD9958/59 Chip function introduction:

·             2/4 synchronized DDS channels @ 500 MSPS

·             Independent frequency/phase/amplitude control between channels

·             Matched latencies for frequency/phase/amplitude changes

·             Excellent channel-to-channel isolation (>65 dB)

·             Linear frequency/phase/amplitude sweeping capability

·             Up to 16 levels of frequency/phase/amplitude modulation(pin-selectable)

·             4 integrated 10-bit digital-to-analog converters (DACs)

·             Individually programmable DAC full-scale currents

·             0.12 Hz or better frequency tuning resolution

·             14-bit phase offset resolution

·             10-bit output amplitude scaling resolution

·             Serial I/O port interface (SPI) with enhanced data throughput

·             Software-/hardware-controlled power-down

·             Dual supply operation (1.8 V DDS core/3.3 V serial I/O)

·             Multiple device synchronization

·             Selectable 4× to 20× REFCLK multiplier (PLL)

Module feature:

l     AD9958 / 59 module is the effort to build a senior engineer, PCB beautiful appearance, reasonable layout and design, material stress;

l     AD9958 / 59 are two-channel / four-channel independent output, output frequency: 1Hz-200Mhz, phase resolution: 1 degree, amplitude resolution: 1/1024, the above is now in control of the accuracy of the controller module The performance itself is higher than the above parameters, but to modify the program to achieve;

l     after several re-designed and beautiful to board 200Mhz signal can be output.

l     the development board uses a high-speed 32-bit STM32F103 chip control; programming specifications, concise, easy to understand, can quickly master the AD9958 / AD9959 chip control.

l     the development board directly with the USB-powered, easy to use;

l     support for serial control or button operation; you can control channel, frequency, amplitude, phase;

l     modular control, AD9958 / 59 module and the control board is independent, convenient to use other controller;

l     AD9958 / 59 module, the output section: three-way direct output, one can take a signal transformer output

Module application：

l     Agile local oscillators

l     Test Equipment

l     Instrumentation

l     Synchronized clocking

l     Module performance parameters

Module performance parameters:

The Development board supplied by usb(5V power)

Output frequency 0---200M, resolution 1HZ;

The output range 0 – 500mVPP (1M high resistance)

Independent phase adjustment, 1 degree fine phase resolution.

Shipping Policy

We will send out the item within 2-3 days through DHL/EMS/FEDEX /UPS/SPEEDPAK/CHINA POST to the below countries:

Belgium, Netherlands, Luxembourg, Italy, Germany, France, United Kingdom, San Marino;

Austria ,Denmark ,Finland ,Greece ,Ireland ,GUERNSEY ,JERSEY ,Norway ,

Portugal , spain , Sweden , Switzerland;

Bulgaria,Cyprus,Estonia,Latvia,Lithuania,Malta,slovakia,slovenia;

Czech Republic, Hungary, Poland, Romania,.

Australia ,New Zealand ,Korea South, Malaysia, Thailand, Philippines ,Singapore , Bruniei ,Taiwan , Macau, Indonesia,

USA, Canada

We will send tracking number to your eBay email within 1 day after sending out your item

We will mark the item at the very low value, so that you do not need to pay for the tax or pay a little tax.

Payment policy:

We accept Paypal only.

Payments must be finished within 5 working days after bid, otherwise, Unpaid Item dispute will be reported to eBay.

Refund &Return policy

We take all the responsibility during delivery. If you do not receive your item, we will refund you the full money or send you a new item according to your request.

We can accept the return item within 60 days after the buyer receives it. Once we receive the return item, then we will refund you full money.

Feedback Policy

We will very appreciate you give us positive feedback ASAP. If the item you got in any problem, PLS don’t hesitates to contact us. We will do our best to help solve the problem

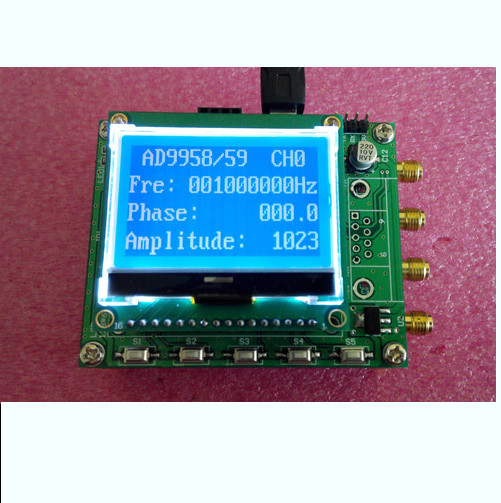

Quality AD9958 AD9959 200Mhz DDS Signal Generator + STM32F103 32bit board
