6 DIGIT LED NUMBER DISPLAY with UP /DOWN COUNTER

COSY 6 Digit LED Number display

( JUMBO 4 INCHES HIGH GREEN LED DIGITS)

works with RS232 data inputs

For use as number display or production counter in factories or as event counter in sports etc.

Features :

6 digit display to show numbers between 1 to 999999 .
4 inches high bright GREEN FND LED digits .
High accuracy micro controller based circuit.

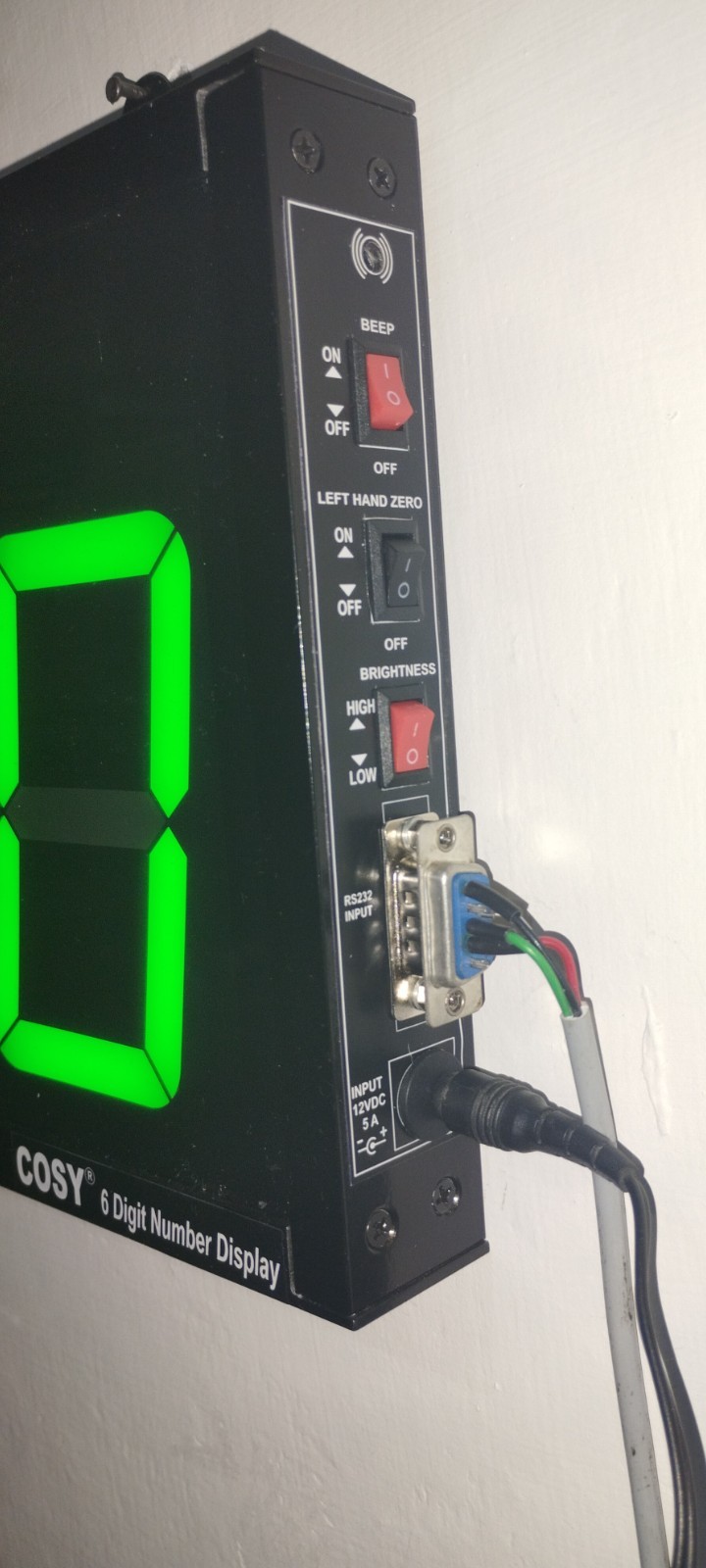

Easy to operate with RS232 data input .
Brightness low/high switch.
Sturdy black powder coated aluminum frame .

Operation :

Connect 12 VDC power adapter to the display .

connect RS232 data input cable with your source . use the RS232 data protocols given below to send data.

Display can be successfully used to receive up to 5 pulses per second.

In case of any power failure the last number will remain in the memory of display .

When power supply is restored the display will start showing the last recorded number .

Use left hand zeroes on /off switch to hide left side zeroes on display if not required .( e.g. show only 1 or show 000001 )

Specifications :

Pulse Input : Can accept up to 5 pulses per second.

10 meter long RS232 data cable included

RS232 DATA INPUT PROTOCOLS :

BAUD RATE : 9600 , Data bits : 8 , Parity : none , Stop bit : 1 , Hand shake : none

To send a 6 digit number send data as : axxxxxx

Examples :

To show number 1 send data as : a000001

To show number 5287 send data as : a005287

To show number 999999 send data as : a999999

To increment number by 1 send data as : u

To decrease number by 1 send data as : d

To reset number to 0 send data as : r

-----------------------------------------------------------------------------------------

Power Supply           :   12VDC 3A , 10 Watts appx , Power adapter for use with 100V to 240V AC included.
Cabinet Dimensions :    23" x 7" x 1.5" , weight 1.9 Kg appx

Table and wall mounting use.

Applications : As number display or event or production counter in Sports, Events, Factories ,Warehouses etc .

We also offer customized displays in different digit sizes . contact for any such requirements .

DELIVERY : We can dispatch one or two of these displays with-in 4 working days from our works & it normally takes 5 to 12 days further in shipping to most international destinations through DHL couriers after dispatch from our works. If you want order qty more than 2 displays then pl. contact us before placing order for delivery time .

Pl. note in some countries due to customs delays it may take more time to deliver **********************************************************************

We are original manufacturers of these items , pl. approach us for your any custom requirements. A listing can be uploaded on eBay for your any custom requirements to enable you order easily & complete your purchase securely.

Warranty : No warranty is offered to international buyers due to obvious reasons like involvement of customs and high shipping costs. However please be assured of a quality product from us. Most of our customers are international clients & we take all precautions in manufacturing and packaging . Pl. check our feedback for your satisfaction & order with complete confidence)

IMPORTANT : International shipments may sometimes subject to Customs Duty / Import Tax as applicable in different countries and same to be paid by buyers extra in their country . Pl. check with your local customs office for any clarification in this regard.

Brand	COSY
Model	6D4FPC
MPN	6D4FPC
Country of Origin	India
