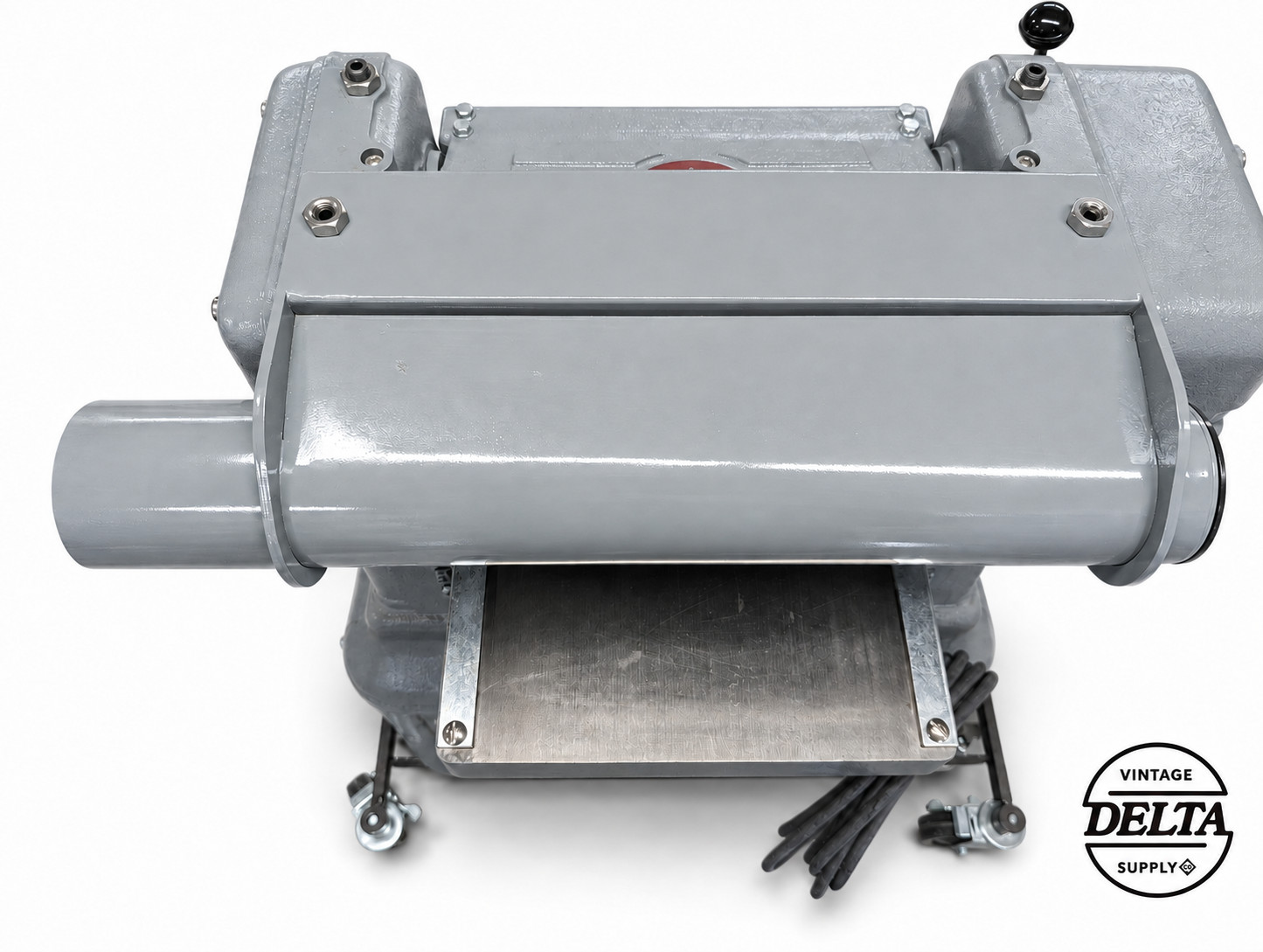

Custom Dust-Collection Hood Vintage Delta 22-101 13-Inch Planer

Upgrade your vintage Delta 22-101 planer with a purpose-built dust-collection hood that combines efficient chip removal, easy installation, and a clean, factory-style appearance.

Unlike vertical dust hoods, this low-profile design allows boards to pass directly over the planer during second and third runs—eliminating the need to carry material around the machine. An integrated stainless-steel scuff plate protects the hood and provides a smooth surface for passing boards.

Features and Benefits

Designed specifically for the vintage Delta 22-101 13-inch planer
Low-profile design requires no vertical exhaust duct
Standard 4-inch dust-collection outlet
Horizontal outlet keeps ductwork clear of the operator
Stainless-steel scuff plate allows boards to pass safely over the machine
Adjustable orifice plate regulates airflow into the chip-collection tube
Installs without drilling or modifying the planer
Can be installed or removed in less than one minute
All required mounting hardware is included
Clean, professional appearance that complements the original machine

The standard outlet exits horizontally from the right side of the planer, away from the ON/OFF switch and clutch-control lever.

Optional Left- or Right-Hand Outlet

Standard hoods are configured with a right-hand dust-collection outlet. For shops requiring a left-hand connection, the hood can be modified before shipment.

If you would like the flexibility to use either side, the hood can be configured to accept both left- and right-hand adapters. Both adapters are included at no additional charge with this option.

Please specify your preferred configuration when ordering:

Right-hand outlet
Left-hand outlet
Convertible left- or right-hand outlet

Easy, Noninvasive Installation

The hood slips over the two rear roller-tensioning studs on top of the planer. No drilling, cutting, or permanent modification is required. All mounting hardware is supplied.

Durable Finish

The hood is powder-coated on the inside to reduce airflow resistance and improve chip movement. The exterior is finished with a light-gray epoxy primer.

It can be installed as supplied or repainted to match your machine. To repaint, lightly scuff the exterior with a Scotch-Brite pad and apply your preferred finish.

Limited Availability

The original production run of seven hoods sold and was delivered last year. A new batch of ten has now been completed, and several units are already spoken for.

Owners regularly comment that the hood looks like original factory equipment and fits the Delta 22-101 better than any dust-collection accessory previously offered for the machine.

Price and Shipping

Regular price: $385

Current sale price: $335—a savings of $50
UPS Ground shipping: $45 within the contiguous 48 states
Shipping Notice: Due to the size and packaging requirements of this custom-built item, each dust hood ships individually. If ordering more than one-unit, additional shipping charges will apply. We will contact you, if necessary, before processing your order.

THIS ITEM SHIPS DIRECTLY FROM OUR MANUFACTURING PARTNER IN MICHIGAN. FLAT-RATE SHIPPING OF $45 APPLIES TO THIS ITEM. PLEASE ALLOW 3–5 BUSINESS DAYS FOR ANY FINAL MODIFICATION REQUESTS OR PREPARATION PRIOR TO SHIPMENT.

Orders shipped outside the contiguous United States may require additional shipping charges.

Brand	Vintage Delta Supply Co.
Country of Origin	United States
