New Open Box - See All Photos For What is Included

Description:

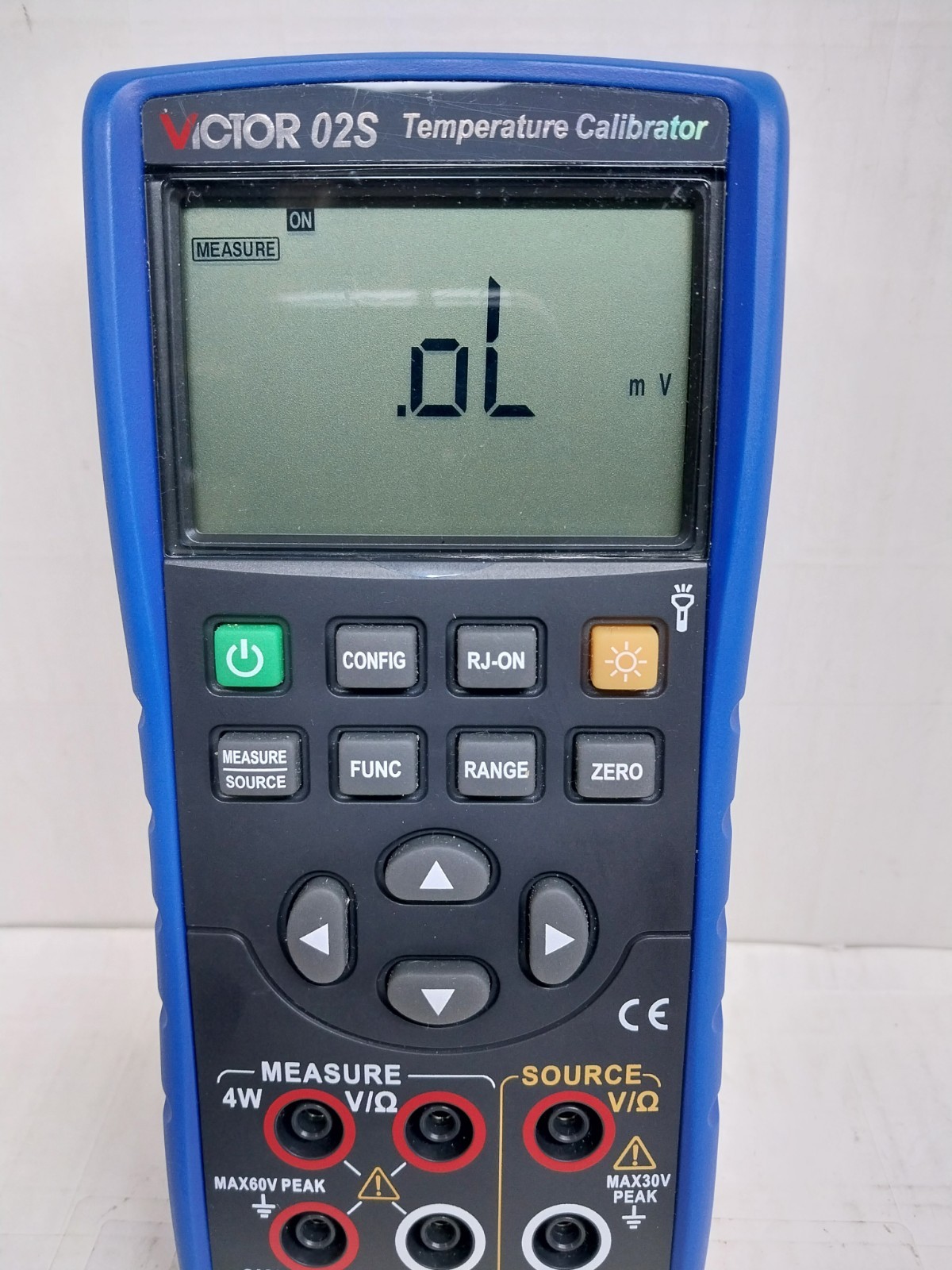

VICTOR02S Temperature Calibrator

I.Basic characteristics of the product
1. Input measurement characteristics

l Basic functions
DC voltage DCV, resistance OHM, thermocouple TC, thermal resistance RTD, on/off
l The maximum measurement accuracy is 0.05% and the measurement display is 5 digits.
l Measurement rate: 2-3 times/sec.
l 2W / 3W / 4W measurements are available for OHM and RTD.
l The measured temperature value and the corresponding temperature signal are displayed on the same screen.
2. Analog output characteristics

l Basic functions
DC voltage DCV, resistance OHM, thermocouple TC, thermal resistance RTD
l The maximum output accuracy is 0.05% and the output display is 5 digits.
l Output settings can be manually increased or decreased by position.
l H/L settings are available for OHM excitation current.
l The output temperature value and the corresponding temperature signal are displayed on the same screen.
3. It has a built-in high-precision temperature sensor for high-precision cold-end compensation.
Thermocouple cold-end compensation can be set, including manual compensation, automatic compensation, compensation access disconnection, etc.
4. It has maintenance setup functions, including
Auto power-off, backlight, flashlight, buzzer, etc.
5. Others
l The segment code is displayed on an LCD with a white backlight.
l It has a LED flashlight for lighting.

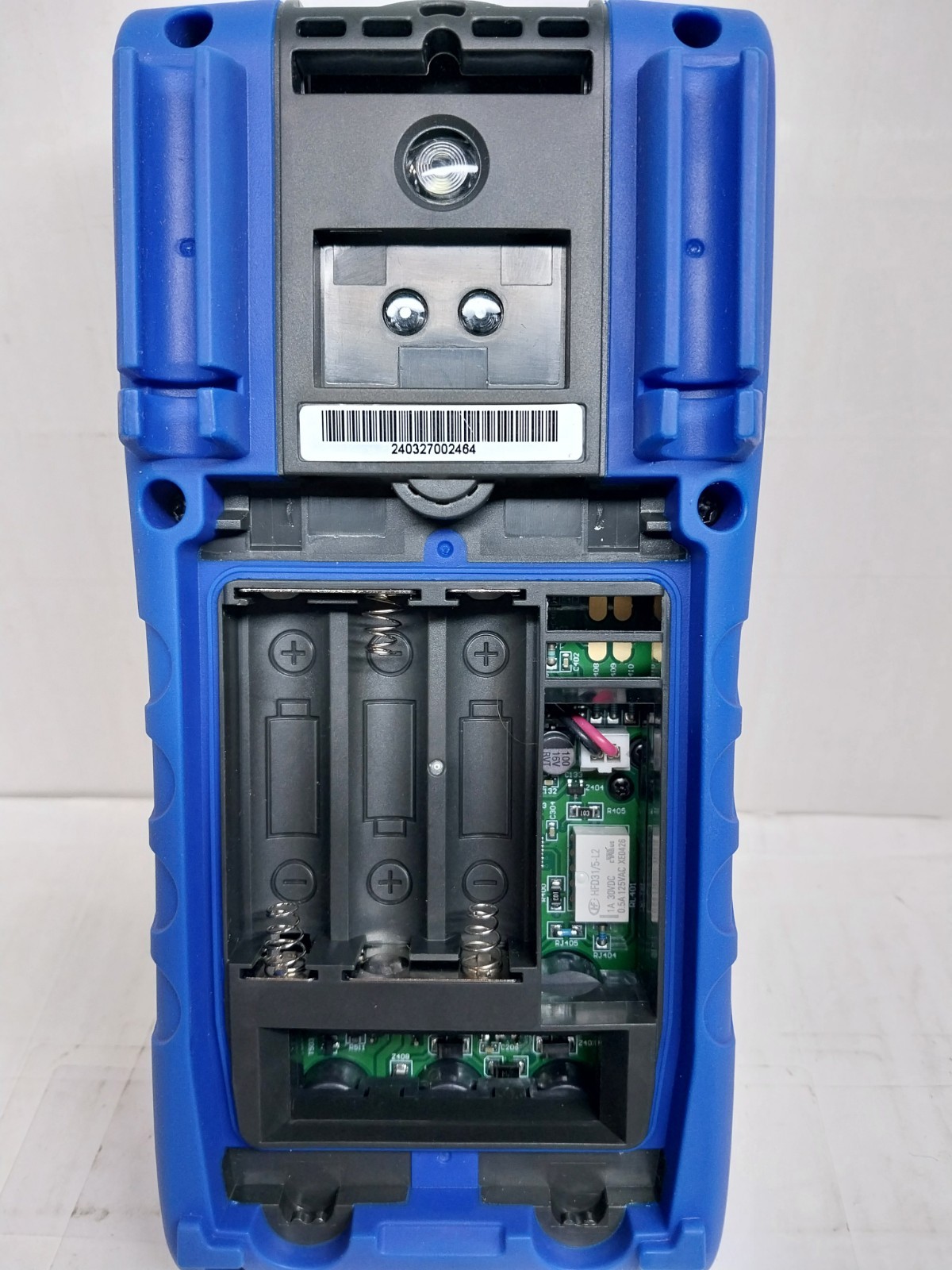

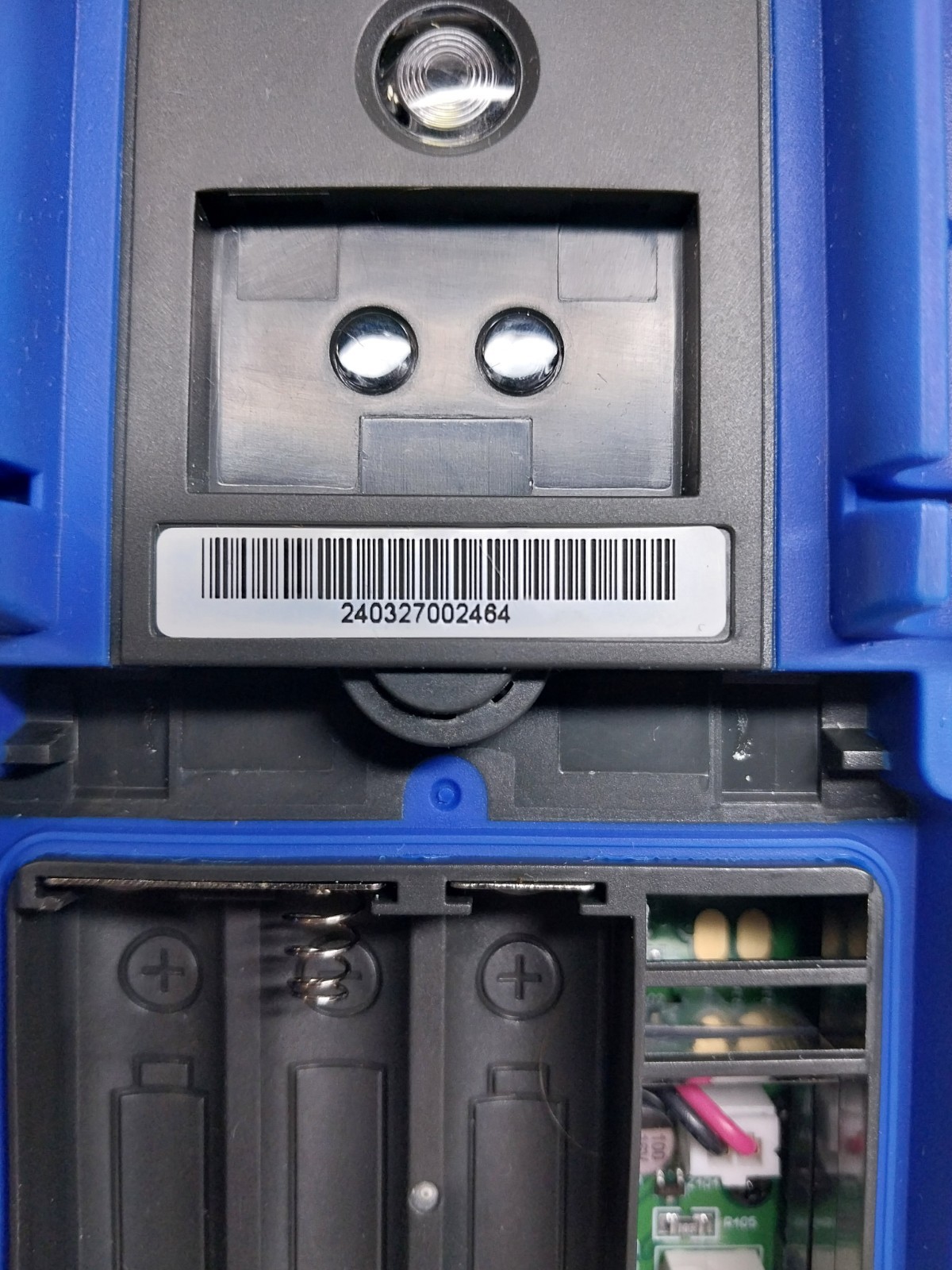

l It is powered by 3 AA battery cells. The battery compartment door is convenient for battery replacement. Low-battery detection is available.
l It is small, firm, reliable, suitable for field use, and cheap.
l User-optional large-suction magnetic sling is provided.

Brand	VICTOR
Unit Type	Unit
MPN	02S
Unit Quantity	1

VICTOR 02S Temperature Calibrator Thermocouple RTD Calibrator

Specifications
