R-3MT-VI-KIT | ChekVolt

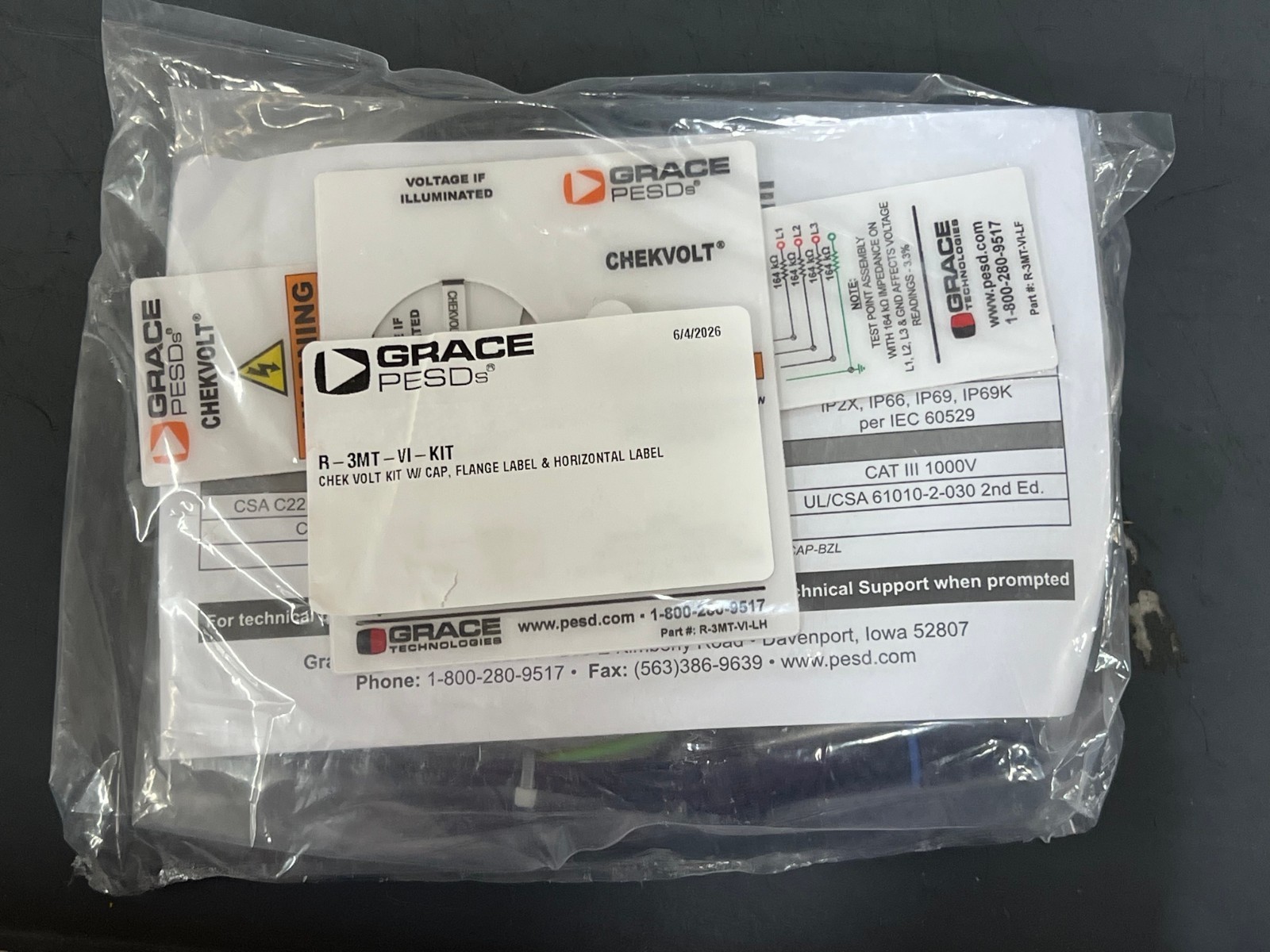

Verify voltage presence and test for absence of voltage in one device. The ChekVolt kit comes with the ChekVolt device, clear cap and two labels (flange and horizontal) for flexible mounting options.

Product Specifications
- Product Description
  - The ChekVolt is a compact Permanent Electrical Safety Device (PESD) that features voltmeter-compatible test points and redundant LED voltage presence indicators. The device is installed through a single 30mm knockout and includes lead wires, making installation quick and simple.
- Component Details
  - Part NumberR-3MT-VI-KIT (Includes cap, horizontal and vertical labels)
- Electrical Specifications
  - Voltage IndicatorFlashing LEDs
  - Voltage TypeAC/DC
  - Operational Voltage Range20-1000VAC, 50/60/400Hz, 20-1000VDC
  - Storage Temperature Range-45°C to +85°C
  - Operational Temperature Range-40°C to +75°C
  - Voltage Category RatingsCAT III @ 1000V, CAT IV @ 600V
- Mechanical Specifications
  - Installation30mm Pushbutton hole
  - OrientationHorizontal or Vertical (both labels included)
  - Environmental RatingsType 4, 4X, 12, 13, IP66, IP69
- Commercial Data
  - Country of OriginUS
  - Schedule B Code8531.20.0040
  - Approvals / Certifications
    Logo
    Approval
    Additional Text
    Certificate name
    UL
    Underwriters Laboratories Inc.
    E311256
    CE
    European Conformity
    INGR0516-A-00
    SS0010-1122-A-CE
  - - RoHS
      Restriction of Hazardous Substances
    - SS0019-1122-A-RH

MPN	R-3MT-VI-KIT
Brand	GRACE
Country of Origin	United States

R-3MT-VI-KIT, GRACE, ChekVolt Kit
