Located in San Angelo TX, New never installed.

General Specifications

Manufacturer: ABB Oy, Motors and Generators, Vaasa, Finland

Type: 3~ PERMANENT MAGNET MACHINE

Model: M3LJ 315SMC 12 IMB5/IM3001

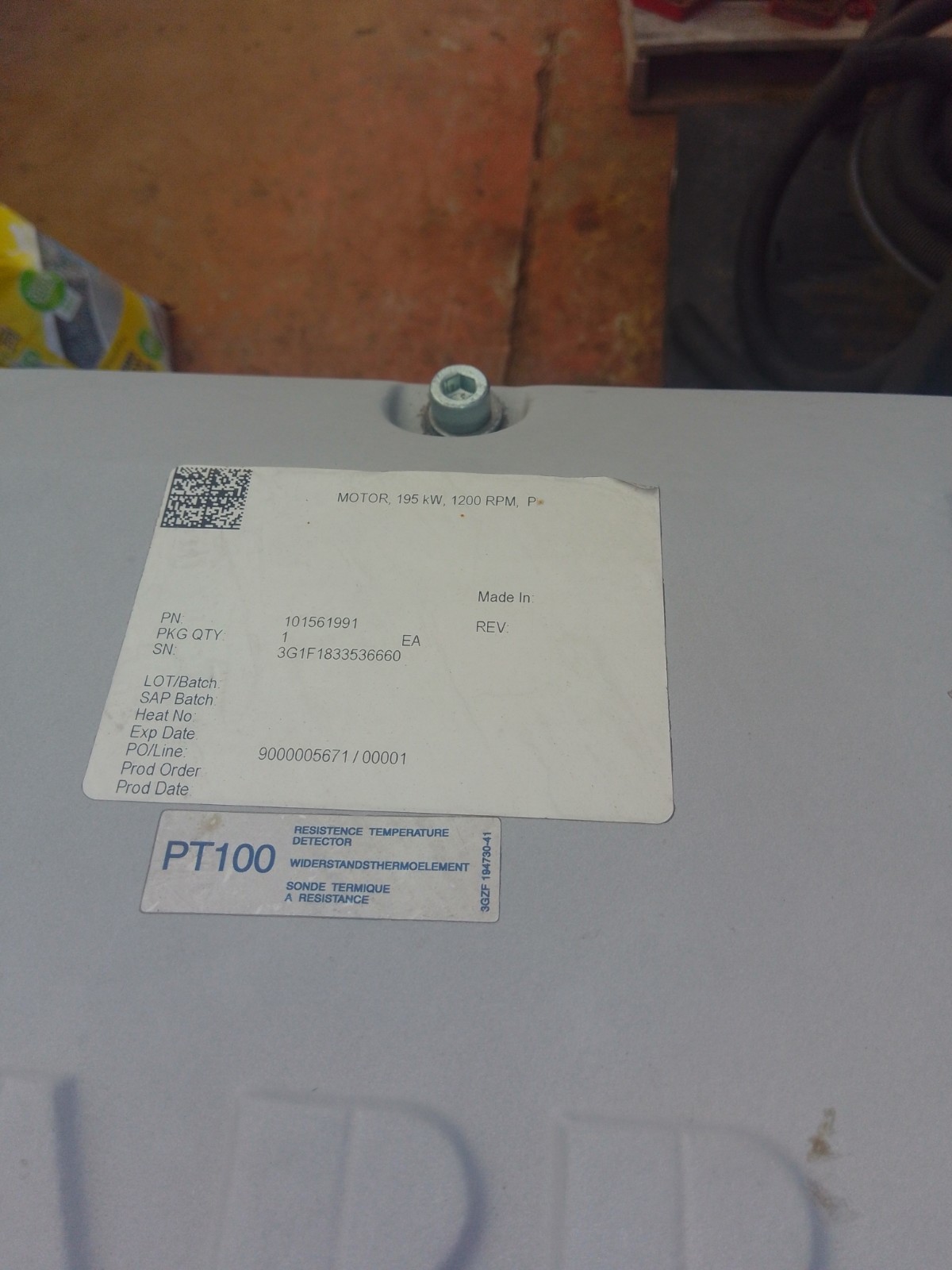

Serial No: 3G1F1833536660

Year of Mfg: 2018

Ambient Temperature (AMB): +50°C (The maximum surrounding air temperature for safe operation)

Insulation Class (Ins cl): H (Indicates the winding's tolerance to heat; H has a high heat capability)

Ingress Protection (IP): 55 (The first 5 means protection from dust, the second 5 means protection from water jets)

Weight: 805 kg

Operating Data

The nameplate lists three sets of performance data corresponding to different operating conditions (voltage, frequency, and connection type).

V (Volts) Hz (Frequency)kW (Power Output)r/min (Speed)A (Current)cos φ (Power Factor)Duty (Time Rating)

444 D13722013703550.85S1 IC71W

390 D12019512003530.86S1 IC71W

444 D18022018003000.99S1 IC71W

V (Volts): Rated operating voltage. "D" likely indicates a Delta (△) wiring configuration.

Hz (Frequency): The frequency of the AC power supply.

kW (Kilowatts): The rated mechanical power output of the motor.

r/min (Revolutions Per Minute): The motor's actual rotational speed under full-load conditions at the rated frequency and voltage.

A (Amps): The amount of current the motor draws at full load.

cos φ (Power Factor): The ratio of active power to apparent power, indicating electrical efficiency.

Duty: The time rating for operation. "S1" indicates continuous duty, meaning the motor can run indefinitely at its rated load.

Model	ABB M3LJ 315SMC
Brand	abb

ABB M3LJ 315SMC 12 permanent magnet machine / Water Cooled Motor
