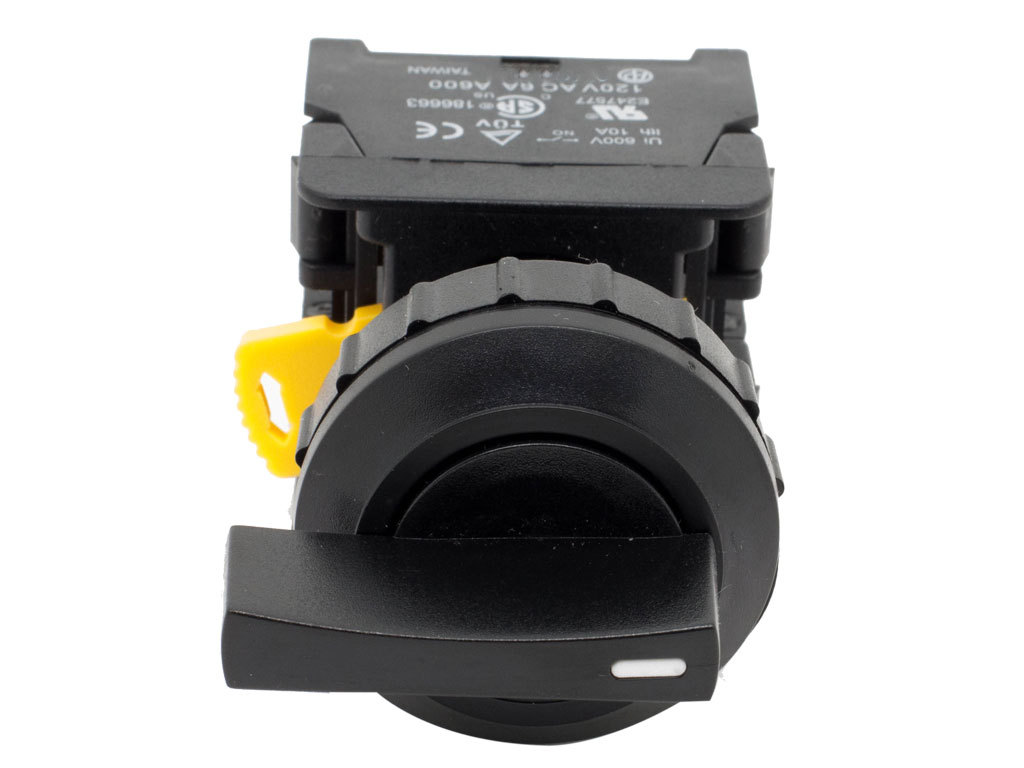

ATI LSR-30 30mm Selector Spring Return/Momentary Switch 2NO Normally Open 3 Positions

Mounting Cut Hole: 30mm (1 1/4 Inch)
Color: Black
No. of Positions: 3 (1-0-2)
Operation type: Momentary/Spring Return
Switch Contact: 2NO, Additional Contact Blocks (NC or NO) can be purchased from our store.
Terminal Type: Finger Safe Screw
Contact Material: Silver
Max Insulation Voltage: 600V
Thermal Current: 10A
Protection Rating: IP65
Operation Temperature: -20 to 60C
Mechanical Life: 1,000,000
Panel Thickness: 1 - 10mm
Depth Behind Panel: 2 1/4"

Features:

Industrial Grade for Tough Environment
Stackable Snap-on Contact Blocks (up to 6) for Flexibility in Configuration
Modular Design for Easy Installation and Wiring
UL listed, CSA Certified and TUV Approved for use Worldwide

Package Inlcudes: One 30mm Selector Switch

Please visit our store for other colors, styles, illuminated or latching type.
